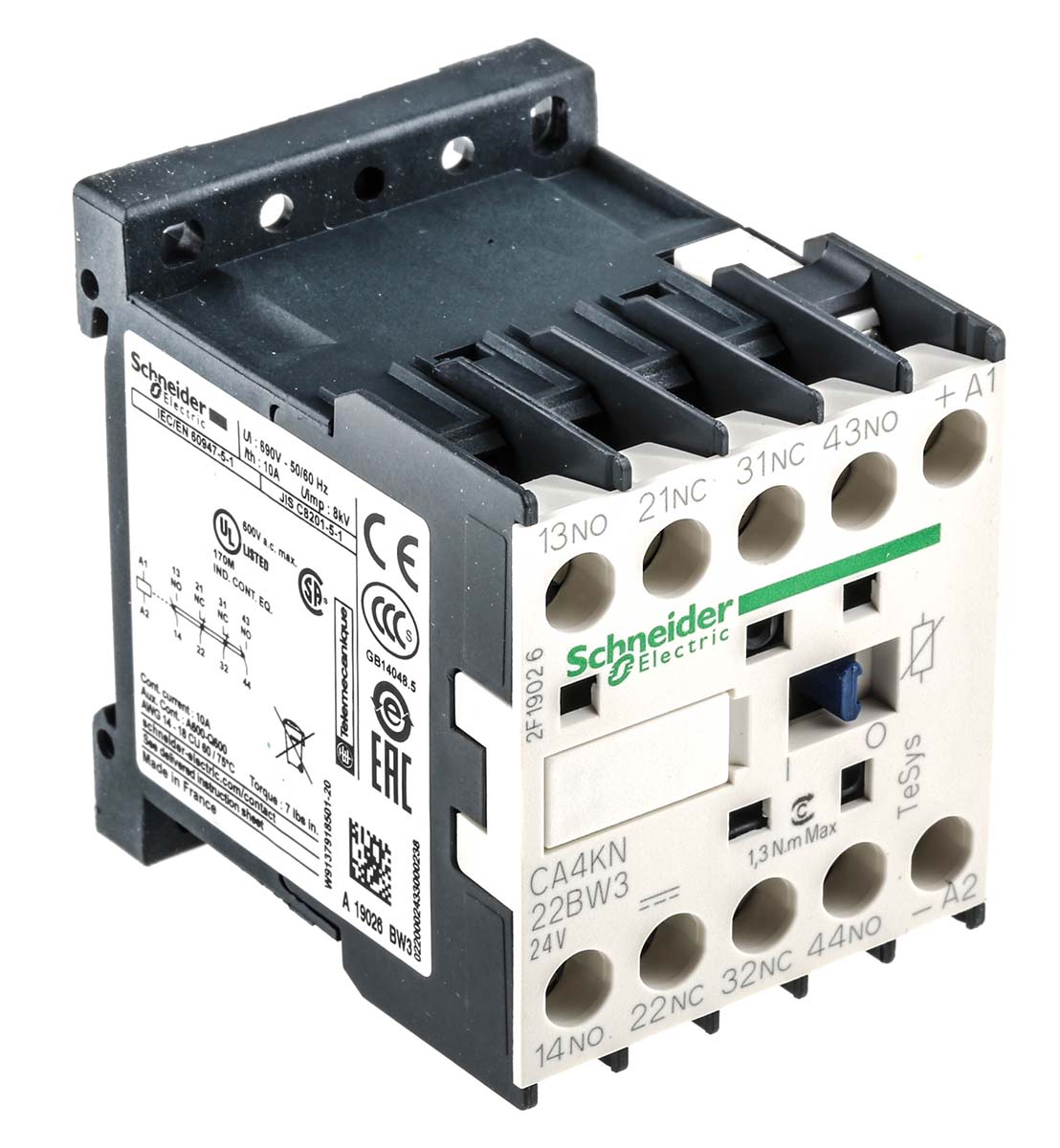

Schneider Electric Control Relay – 2NO + 2NC, 10 A Contact Rating, 24 Vdc, TeSys K
- RS Stock No.:
- 0759083
- Mfr. Prt No.:
- CA4KN22BW3
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 0759083 |
| Product description | Schneider Electric Control Relay - 2NO + 2NC, 10 A Contact Rating, 24 Vdc, TeSys K |
| Manufacturer / Brand | Schneider Electric |
| Manufacturer part number | CA4KN22BW3 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 8, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FR
Product Details
Schneider Electric TeSys K Series Low Consumption Control Relays.
From Schneider Electric this is the Tesys K series of low consumption Control Relays a range of reversing and non-reversing contactors up to 5.5 kW 400/415 V. Providing excellent performance and compactness ratio with seamless integration of all applications. The control relays are available as 4 pole relays with 10 A thermally rated contacts suitable for AC or DC voltages. The Control relays available as low consumption models with built-in suppression suitable for programmable controllers.
Features.
- Common options available for all ratings, 6 A, 9 A, 12 A.
- Control circuits available, AC, DC, low consumption DC, silent.
- Applications – 2.2 kW, 4.35 kW, in AC3 and AC4.
- Connectors – Screw clamp, Faston, Spring terminals, Pins for PCB (printed circuit boards).
- Contacts with 10 A Thermal rating (suitable for use down to 17 V 5mA).
- 4-Pole operation with AC or DC control circuits.
- Auxiliary contacts and timer modules.
- Industry, infrastructure, building.
- Simple control systems.
- Noise sensitive areas, disturbed mains supply, silent contactor.
Specifications
| Attribute | Value |
| Brand | Schneider Electric |
| Contact Current Rating | 10 A |
| Range | TeSys K |
| Series | CA4KN |
| Contact Voltage Rating | 690 V ac |

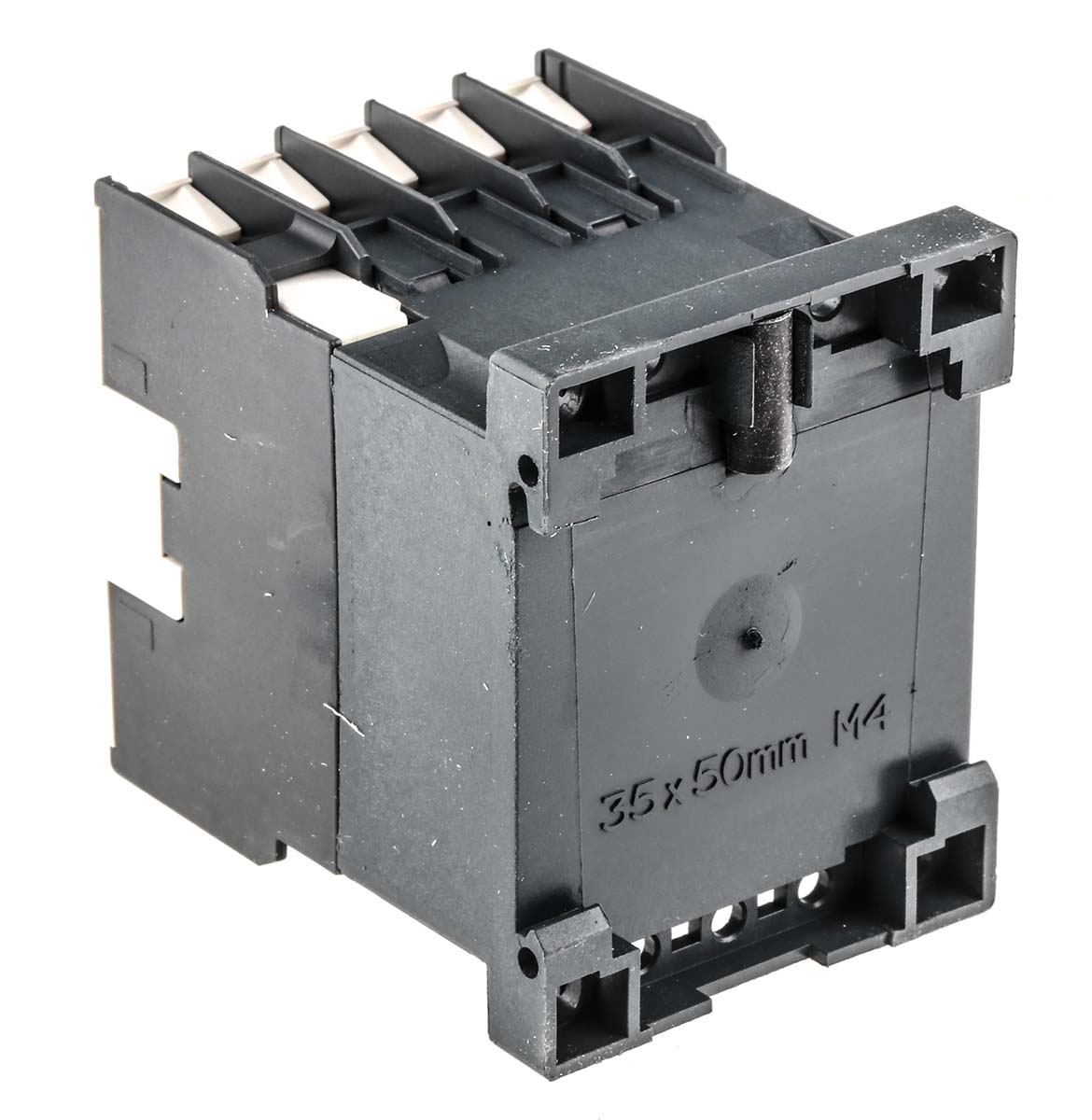

| Mounting Style | Plate |
| Depth | 57 mm |
| Normal State Configuration | 2NO + 2NC |
| Length | 58 mm |
| Control Voltage | 24 Vdc |
| Width | 45 mm |
| Terminal Type | Screw |
