Product Details
HE10

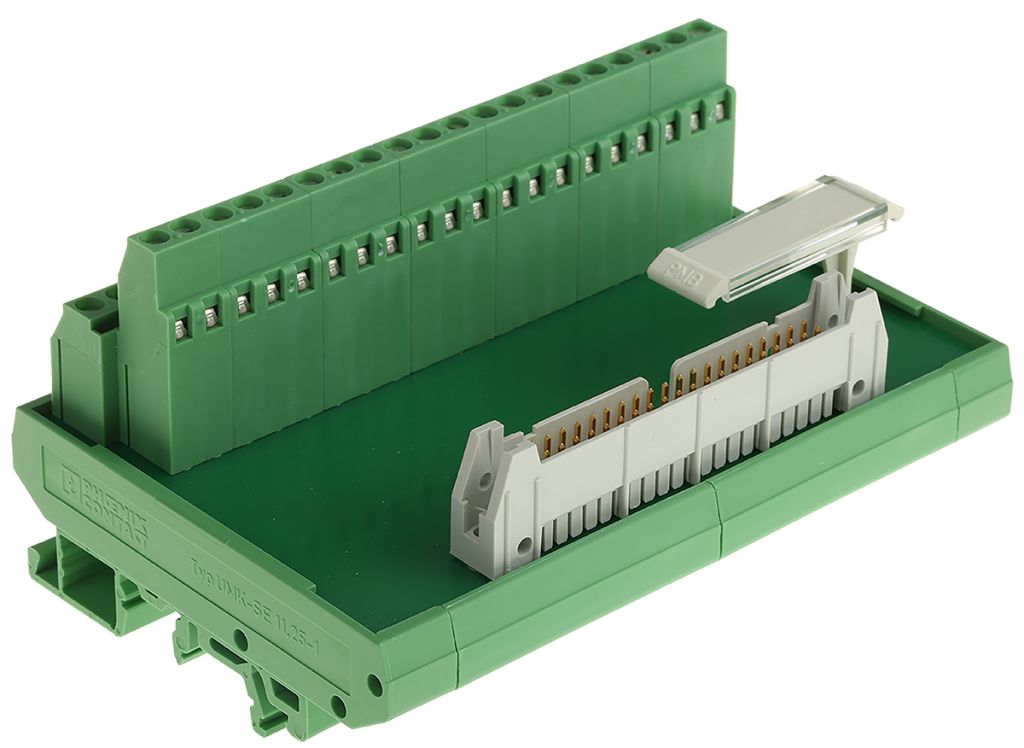

Screw terminal interface modules with connectors suitable for interfacing electrical cabling to I/O cards and electronic equipment. Designed to mount on standard BS 5584:1978 ’DIN’ rail.
Fits top hat and G profile rails
Temperature range -20 to +50°C
Suitable Cable CSA: (Solid)0.2 to 4mm², (Stranded)0.2 to 2.5 mm²
Specifications
| Attribute | Value |
| Brand | Phoenix Contact |
| Depth | 77 mm |
| Wire Size | 24 → 12 AWG |
| Connector Type | Flat Ribbon Cable |
| Length | 112.5 mm |
| Number of Contacts | 40 |
| Width | 58.5 mm |
| Dimensions | 112.5 x 58.5 x 77 mm |
| Minimum Operating Temperature | -20 °C |
| Voltage Rating | 50 V ac, 60 V dc |
| Cable CSA | 0.2 → 4 mm² |
| Maximum Operating Temperature | +50 °C |
| Current Rating | 1 A |
| Test Proof Voltage | 500 V ac |
| Gender | Male |
| Mounting Type | DIN Rail Mount |
