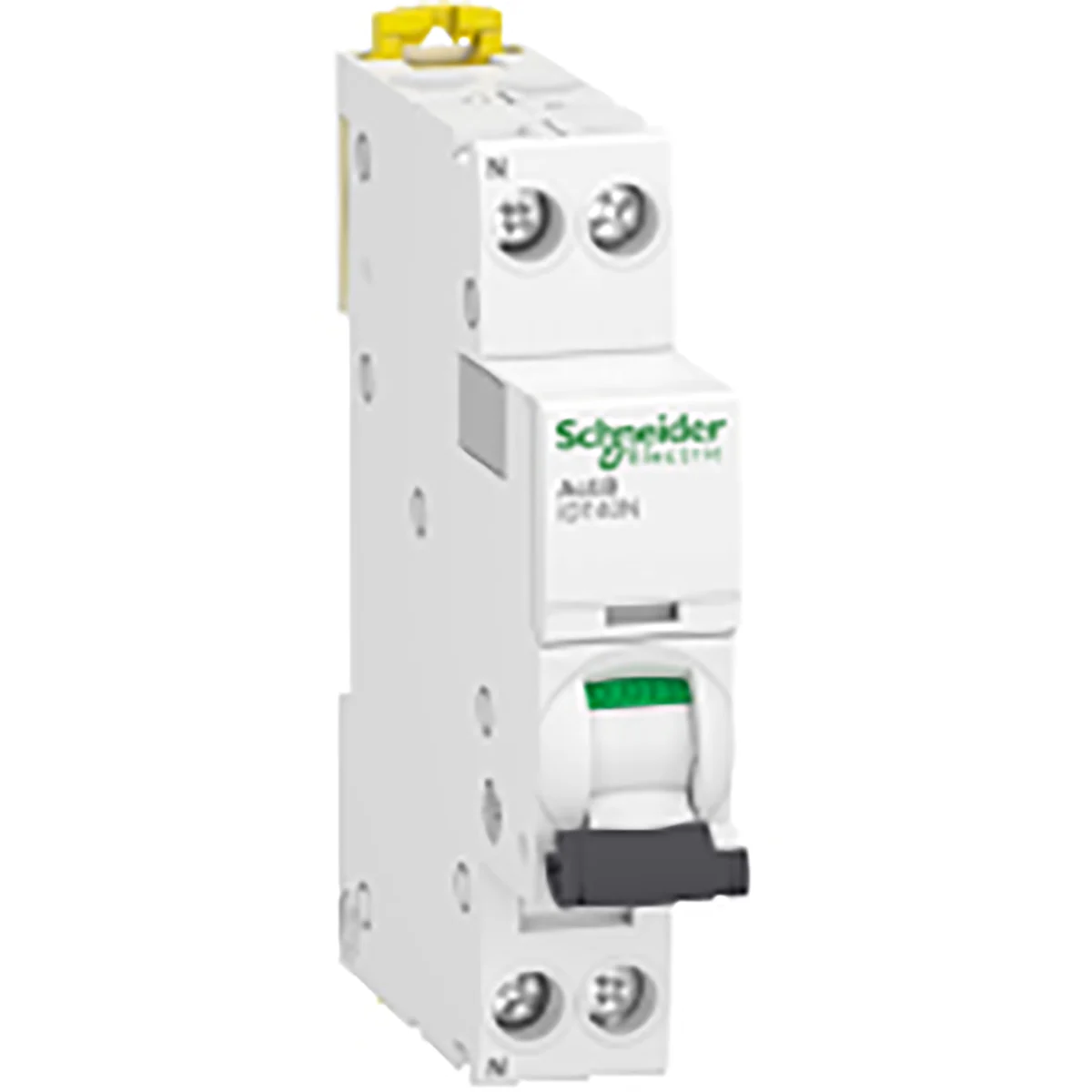

Schneider Electric Acti 9 6A MCB Mini Circuit Breaker Curve C, Breaking Capacity 10 kA, DIN Rail
- RS Stock No.:
- 1916106
- Mfr. Prt No.:
- A9P24606
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 1916106 |
| Product description | Schneider Electric Acti 9 6A MCB Mini Circuit Breaker Curve C, Breaking Capacity 10 kA, DIN Rail |
| Manufacturer / Brand | Schneider Electric |
| Manufacturer part number | A9P24606 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1916106 |
| Product description | Schneider Electric Acti 9 6A MCB Mini Circuit Breaker Curve C, Breaking Capacity 10 kA, DIN Rail |
| Manufacturer / Brand | Schneider Electric |
| Manufacturer part number | A9P24606 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 6, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: FR
Product Details
Residual current devices
Schneider Electric MCBs - Acti9 DT40N
Introducing Schneider Electrics iC60H series of multi-standard circuit breakers which combine circuit protection against short circuit currents and circuit protection against overload currents alongside protecting users against indirect contact with TN and IT neutral systems.
Features & Benefits
• B, C and D curve
• Visisafe green strip indicates and guarantees the safe position of contacts
• VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and re-closing loads for easier building management and reduced downtime
Specifications
| Attribute | Value |
| Brand | Schneider Electric |
| Model Number | A9P24606 |
| Range | Acti 9 |
| Series | Acti9iDT40N |
| Current Rating | 6 A |
| Tripping Characteristics | Type C |
| Mounting Style | DIN Rail |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Length | 72 mm |
| Width | 74 mm |
| Depth | 85 mm |
| Circuit Breaker Type | MCB |
| Reset Actuator Type | Toggle Switch |
| Terminal Contact Type | Screw |
| Tripping Mechanism | Thermal-Magnetic |
