RS PRO 6bar Air Blow Gun, 1/4in Air Inlet (BSP)
- RS Stock No.:
- 0806779
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 0806779 |
| Product description | RS PRO 6bar Air Blow Gun, 1/4in Air Inlet (BSP) |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 26, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: NZ
Product Details

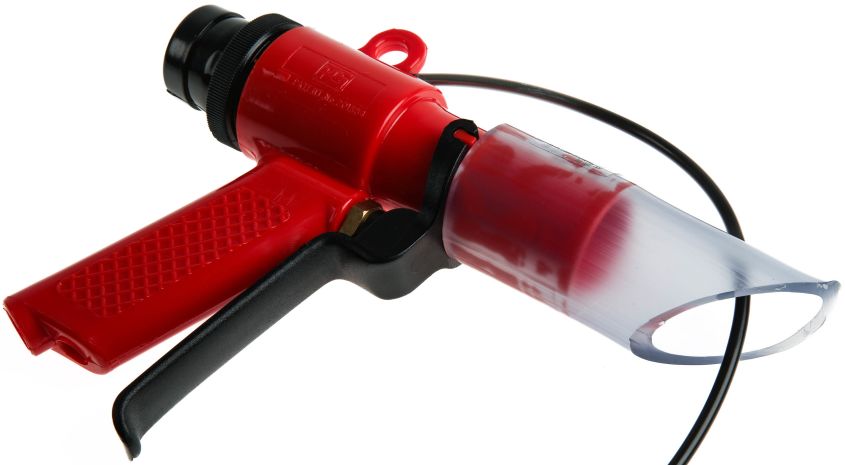

Deep Hole Vacuum Gun
CAUTION : These non-restricted type blow guns must only used on air lines which have a pressure regulator set at a maximum of 30 psi.
WARNING : To avoid risk of injury, these guns must only be used with either the dust bag or conveying hose.
Always use approved eye protection when using these tools. Blow guns, unless correctly used, can prove dangerous; read instructions carefully.
Special version designed for removing dust, debris and swarf from blind holes up to 18 inches deep
Plastic probe jets high pressure air into the hole to dislodge particles which are safely sucked away by the main nozzle
Main nozzle shrouded to prevent particles escaping and causing injury
1/4in BSP Inlet
Max working pressure 6 bar
Accessories available separately
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Air Inlet BSP | 1/4 in |
| Type | Air Blow Gun |
| Output Pressure | 6 bar |
| Model Number | VM22D/H |
| Working Pressure | 6 bar |
