Tee 50Ω RF Adapter BNC Socket to BNC Socket 4GHz
- RS Stock No.:
- 6163107
- Mfr. Prt No.:
- 5-1634535-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 6163107 |
| Product description | Tee 50Ω RF Adapter BNC Socket to BNC Socket 4GHz |
| Manufacturer / Brand | TE Connectivity |
| Manufacturer part number | 5-1634535-1 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 6163107 |
| Product description | Tee 50Ω RF Adapter BNC Socket to BNC Socket 4GHz |
| Manufacturer / Brand | TE Connectivity |
| Manufacturer part number | 5-1634535-1 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 24, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: TW
Product Details
TE Connectivity BNC RF Coaxial Connectors

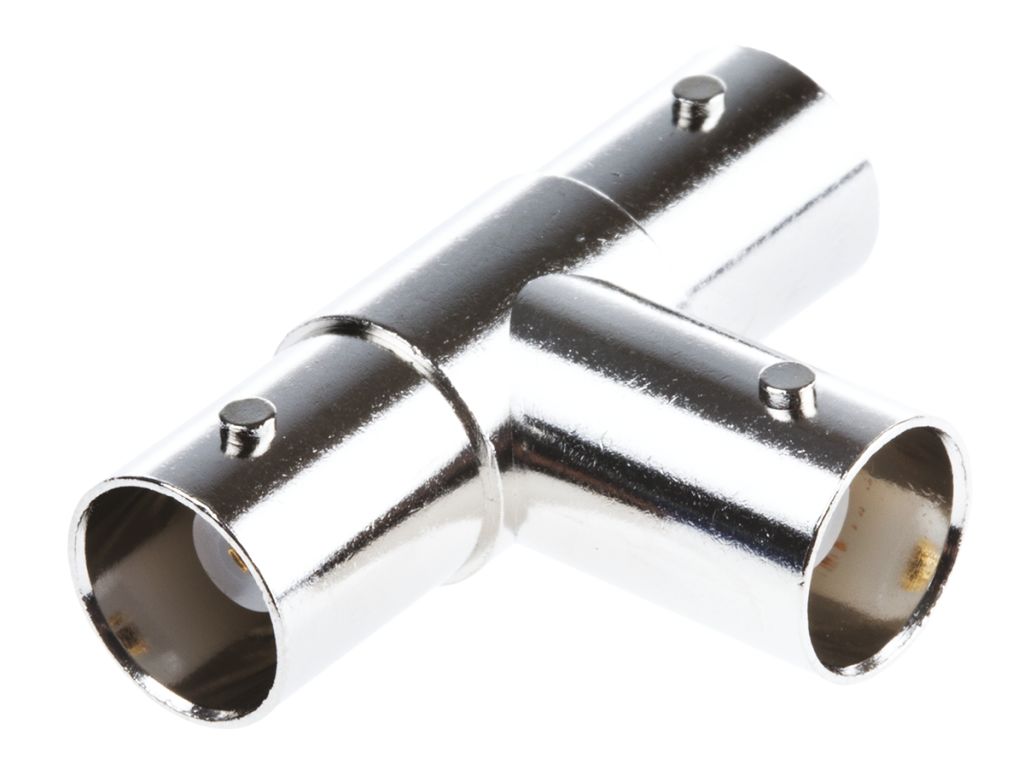

TE Connectivity 50 Ohm BNC RF Coaxial Jack-Jack-Jack Tee Adaptor
50 Ohm BNC RF coaxial T adapter with a jack-jack-jack (f-f-f) configuration and bayonet fitting. This 50 Ohm RF coax BNC jack to BNC jack to BNC jack Tee adapter has a nickel plated zinc alloy body and gold plated male centre contact.
Specifications
| Attribute | Value |
| Brand | TE Connectivity |
| Operating Frequency | 4 GHz |
| Adapter Type A | BNC |
| Body Plating | Nickel |
| Impedance | 50 Ω |
| Gender A | Female |
| Length | 33 mm |
| Gender B | Female |
| Adapter Type B | BNC |
| Contact Plating | Gold |
| Contact Material | Phosphor Bronze |
| Body Orientation | Tee |
