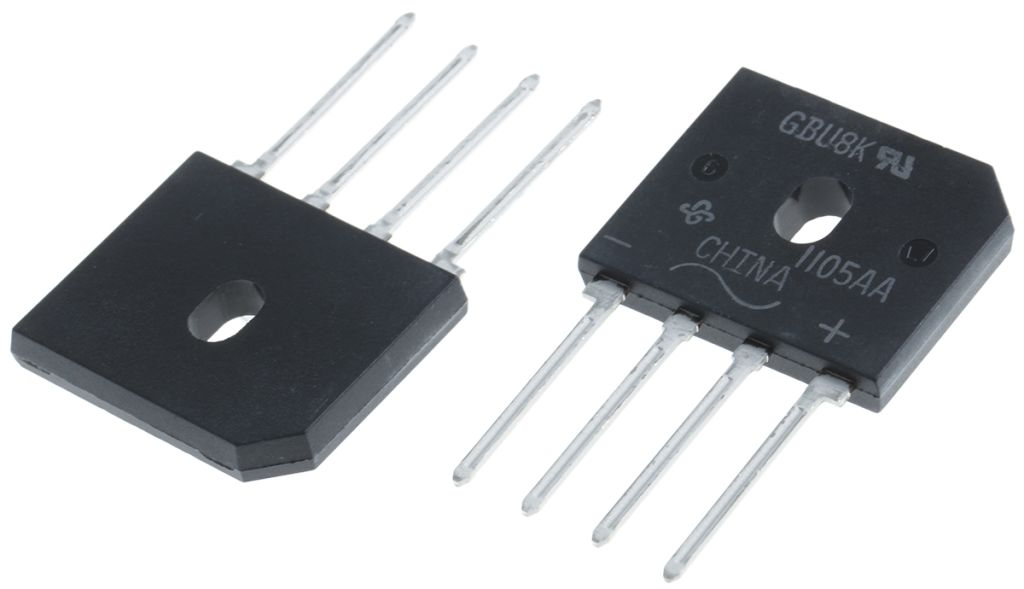

onsemi GBU8K, Bridge Rectifier, 8A 800V, 4-Pin GBU
- RS Stock No.:
- 6708930
- Mfr. Prt No.:
- GBU8K
- Brand:
- ON Semiconductor
Technical Reference
