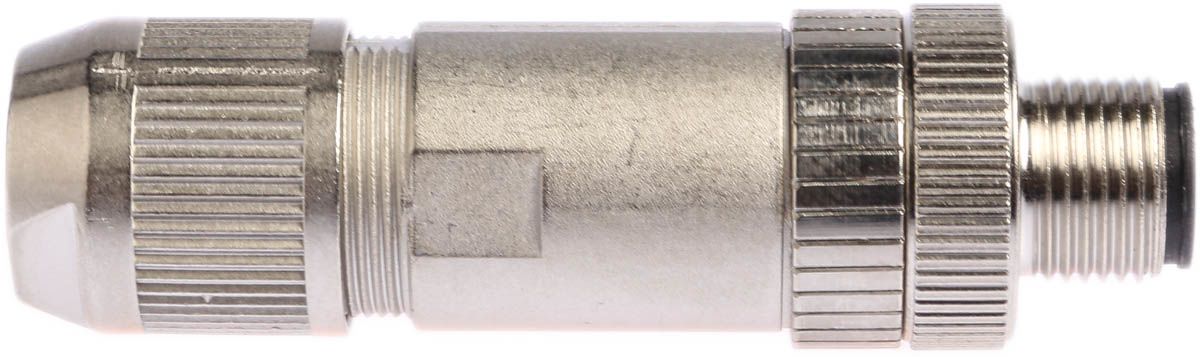

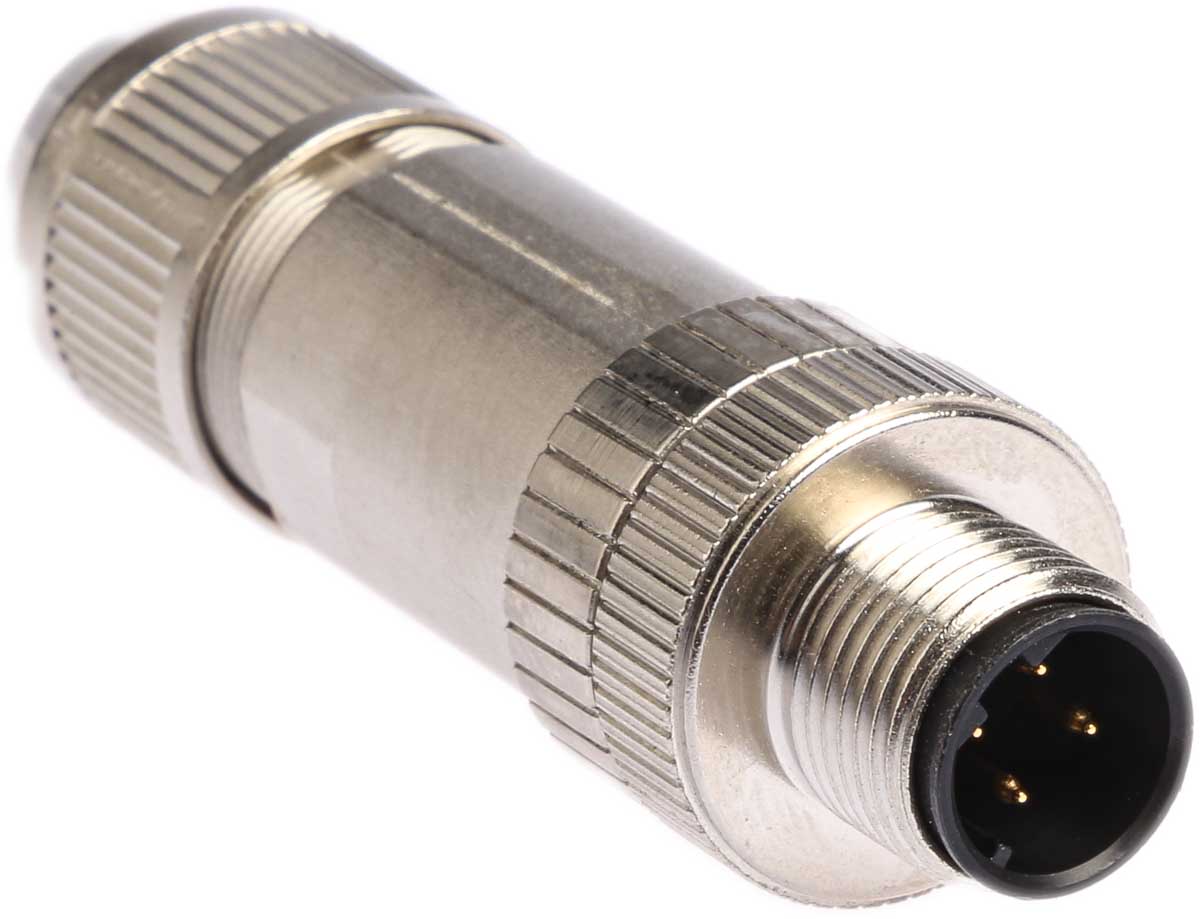

Phoenix Contact SACC PROFIBUS / PROFINET / CANopen Connector
SACC series of universal connectors come supplied in various connection options and are supplied in a wide variety of orientations to ensure your application is covered
IP67 rated
M12 x 1mm thread
Zinc die-cast nickel-plated construction
Options utilize Speedcon terminations, which makes connections simple and suitable for field installation
360° Shielding making the SACC series suitable for use within electromagnetic interference environments
Spring termination options available (RS Stock No. 801-6665 typical)
Specifications
| Attribute | Value |
| Brand | Phoenix Contact |
| Number of Contacts | 4 |
| Mounting Type | Cable Mount |
| Connector Size | M12 |
| Plug/Socket | Plug |
| Termination Method | IDC |
| Contact Gender | Male |
| IP Rating | IP67 |
| Current Rating | 1.75 A |
| Shell Size | M12 |
| Voltage Rating | 60 V |
| Coding | D |
| Mating Type | D Coded |
| Body Orientation | Straight |
| Series | SACC-M12MSD-4Q SH PN |
| Housing Material | Zinc |
| Contact Plating | Gold over Nickel |
| Contact Material | Bronze |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
