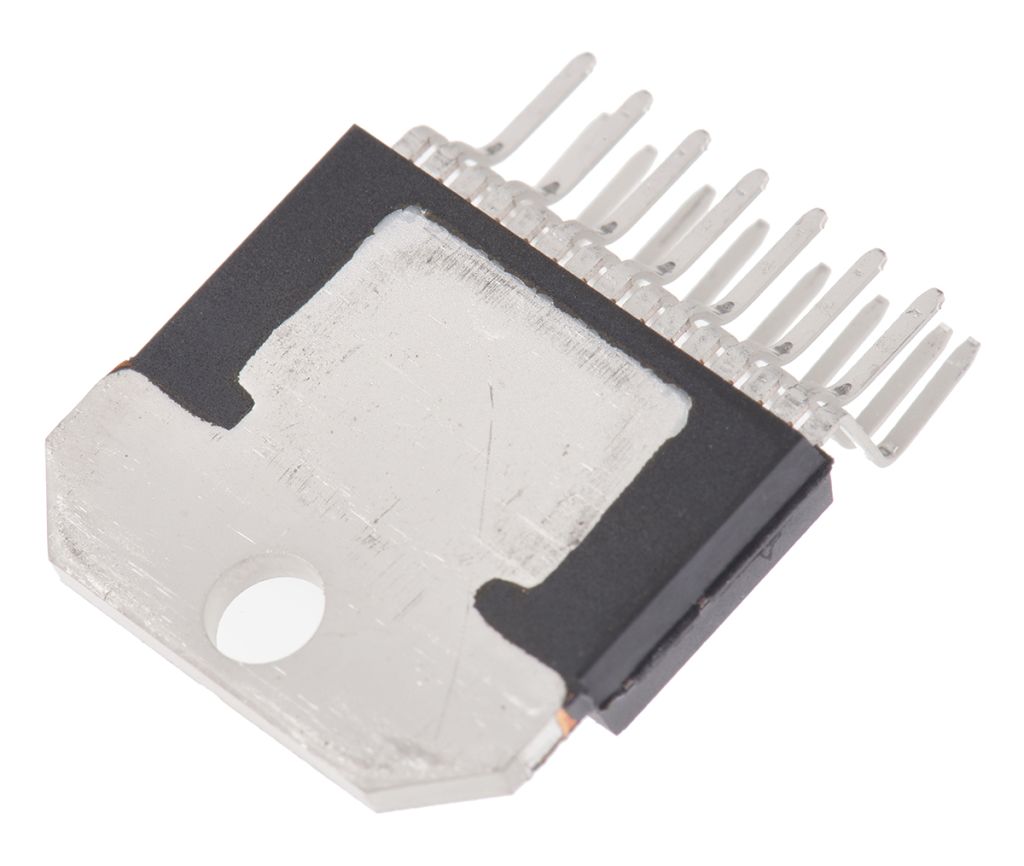

Texas Instruments,40W, 15-Pin TO-220 LM4766T/NOPB
- RS Stock No.:
- 5343318
- Mfr. Prt No.:
- LM4766T/NOPB
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 5343318 |
| Product description | Texas Instruments,40W, 15-Pin TO-220 LM4766T/NOPB |
| Manufacturer / Brand | Texas Instruments |
| Manufacturer part number | LM4766T/NOPB |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 5343318 |
| Product description | Texas Instruments,40W, 15-Pin TO-220 LM4766T/NOPB |
| Manufacturer / Brand | Texas Instruments |
| Manufacturer part number | LM4766T/NOPB |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 31, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Audio Amplifiers, Texas Instruments
Audio Power Amplifiers, Dual & Multiple, Texas Instruments
A range of highly integrated Class AB Audio Power Amplifier ICs from Texas Instruments with dual or multiple outputs suitable for stereo and multi-channel applications. The amplifiers range from low-power devices suitable for driving headphones to high-power types with outputs of up to 60W or more.
Specifications
| Attribute | Value |
| Brand | Texas Instruments |
| Amplifier Type | Audio Power Amplifier |
| Output Type | 2 Channel Stereo |
| Maximum Power | 40 W |
| Application | Speaker |
| Mounting Type | Through Hole |
| Amplifier Class | Class A-B |
| Typical Single Supply Voltage | 18 V |
| Power Supply Type | Dual, Single |
| Package Type | TO-220 |
| Pin Count | 15 |
| Input Signal Type | Differential |
| Output Signal Type | Single Ended |
| Typical Gain Bandwidth Product | 8 MHz |
| Minimum CMRR | 75 dB |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | +85 °C |
| Priced to Clear | Yes |
| Dimensions | 20.02 x 4.5 x 10.69 mm |
