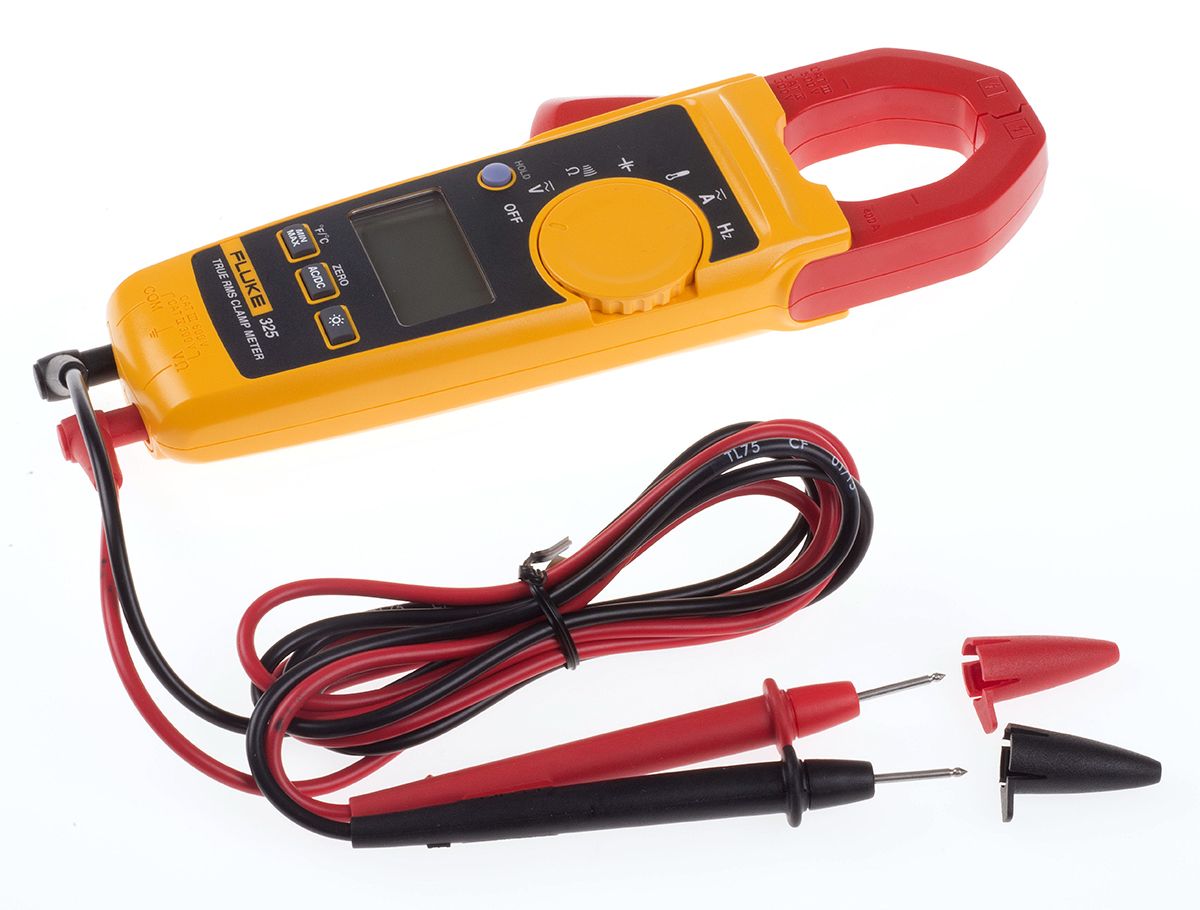

Fluke 325 AC/DC Clamp Meter, 400A dc, Max Current 400A ac CAT III 600V, CAT IV 300V
- RS Stock No.:
- 7653660
- Mfr. Prt No.:
- FLUKE 325
- Brand:
- Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 7653660 |
| Product description | Fluke 325 AC/DC Clamp Meter, 400A dc, Max Current 400A ac CAT III 600V, CAT IV 300V |
| Manufacturer / Brand | Fluke |
| Manufacturer part number | FLUKE 325 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 25, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details
Specifications
| Attribute | Value |
| Brand | Fluke |
| Width | 75 mm |
| Dimensions | 207 x 75 x 34 mm |
| Best AC Voltage Accuracy | ±(1.5% rdg + 5dgts) |
| Model Number | 325 |
| Absolute Maximum Resistance Measurement | 40 kΩ |
| Minimum Operating Temperature | -10 °C |
| Height | 34 mm |
| AC Voltage Measurement Resolution | 100 mV |
| Weight | 283 g |
| Safety Category Level | CAT III, CAT IV |
| Best DC Current Accuracy | ±(2% rdg + 5dgts) |
| Absolute Maximum AC Current Measurement | 400 A ac |
| Safety Category Voltage | 300 V, 600 V |
| Battery Type | AAA |
| Resistance Measurement Resolution | 100 mΩ |
| Absolute Maximum AC Voltage Measurement | 600 V ac |
| Best AC Current Accuracy | ±(2% rdg + 5dgts) |
| Safety Category | CAT III 600V, CAT IV 300V |
| Display Type | LCD |
| Power Source | Battery |
| Length | 207 mm |
| AC Current Measurement Resolution | 10 mA |
| Best DC Voltage Accuracy | ±(1% rdg + 5dgts) |
| DC Voltage Measurement Resolution | 100 mV |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Resistance, Temperature |
| DC Current Measurement Resolution | 10 mA |
| Maximum Conductor Size | 30 mm |
| Jaw Capacity Busbars | 30 mm |
| Absolute Maximum DC Current Measurement | 400 A dc |
| Clamp Meter Type | AC/DC Clamp Meter |
| Temperature Measurement Resolution | 0.1 °C |
| Absolute Maximum Temperature Measurement | +400 °C |
| Absolute Maximum DC Voltage Measurement | 600 V dc |
| Maximum Operating Temperature | +50 °C |
