TE Connectivity 50Ω Straight Cable Mount, FME Connector , jack
- RS Stock No.:
- 4481611
- Mfr. Prt No.:
- 1-1337551-0
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 4481611 |
| Product description | TE Connectivity 50Ω Straight Cable Mount, FME Connector , jack |
| Manufacturer / Brand | TE Connectivity |
| Manufacturer part number | 1-1337551-0 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 4481611 |
| Product description | TE Connectivity 50Ω Straight Cable Mount, FME Connector , jack |
| Manufacturer / Brand | TE Connectivity |
| Manufacturer part number | 1-1337551-0 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 24, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details

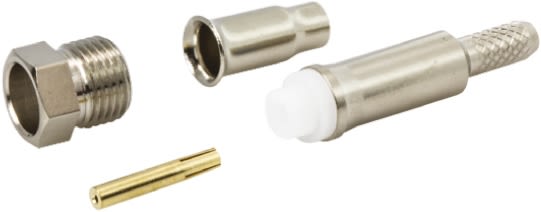

TE Connectivity 50 Ohm FME Connectors - Crimp Jack
50 Ohm RF coaxial FME crimp jacks with a nickel plated brass body, gold plated brass centre contact and brass crimp ferrule and coupling nut.
Stock number 448-1611 has a delrin dielectric and is for use with RF coaxial cable types RG-174 A/U, RG-188 A/U, RG-316/U, URM95, KX3B and KX22A
Stock number 448-1627 has a PTFE dielectric and is for use with RF coaxial cable types RG-58 C/U, RG-141 A/U, URM43, URM76 and KX15
Specifications
| Attribute | Value |
| Brand | TE Connectivity |
| Operating Frequency | 0 to 2 GHz |
| Termination Method | Crimp |
| Impedance | 50 Ω |
| Mounting Type | Cable Mount |
| Body Orientation | Straight |
| Body Plating | Nickel |
| Cable Type | RG174/U, RG188 A/U, RG316/U |
| Contact Plating | Gold |
| Coaxial Connector Type | FME Connector |
| Contact Material | Brass |
| Gender | Female |
