RS PRO Ratcheting Hand Crimping Tool for Flag Terminal
- RS Stock No.:
- 1251966
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 1251966 |
| Product description | RS PRO Ratcheting Hand Crimping Tool for Flag Terminal |
| Manufacturer / Brand | RS PRO |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1251966 |
| Product description | RS PRO Ratcheting Hand Crimping Tool for Flag Terminal |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 22, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: TW
Product Details

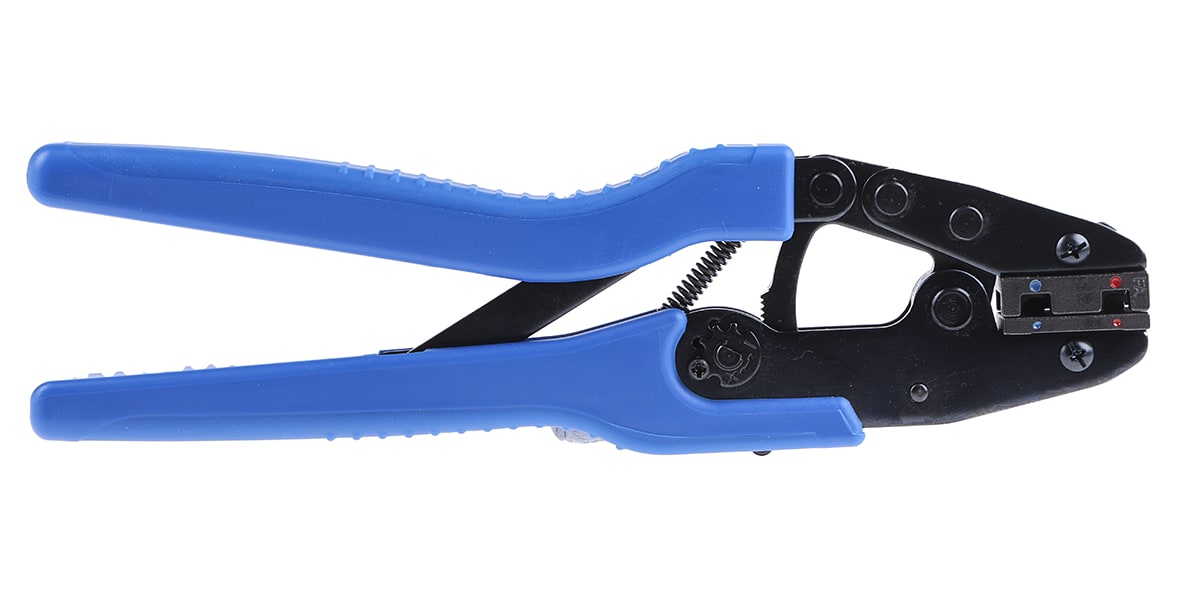

RS PRO Crimping Tool for Flag Terminals
From the trusted RS PRO brand this cable crimping tool is designed for use with insulated terminals, and easily crimps flag terminals onto appropriate wires and cables. A must wherever specialist connectors are needed, this tool is designed to handle different set sizes of terminals and is ideal for production work and maintenance applications alike. The different crimp sizes are even colour-coded for further ease of use.
With a simple ratchet action, crimping terminals is easy and efficient, saving you time and effort. The crimper also features an ergonomic firm-grip handle for the comfort and control you need.
Features and Benefits
• Crimping tool for flag terminals
• Carbon Steel body hardened to 45-48HRC
• Thermoplastic firm grip handle

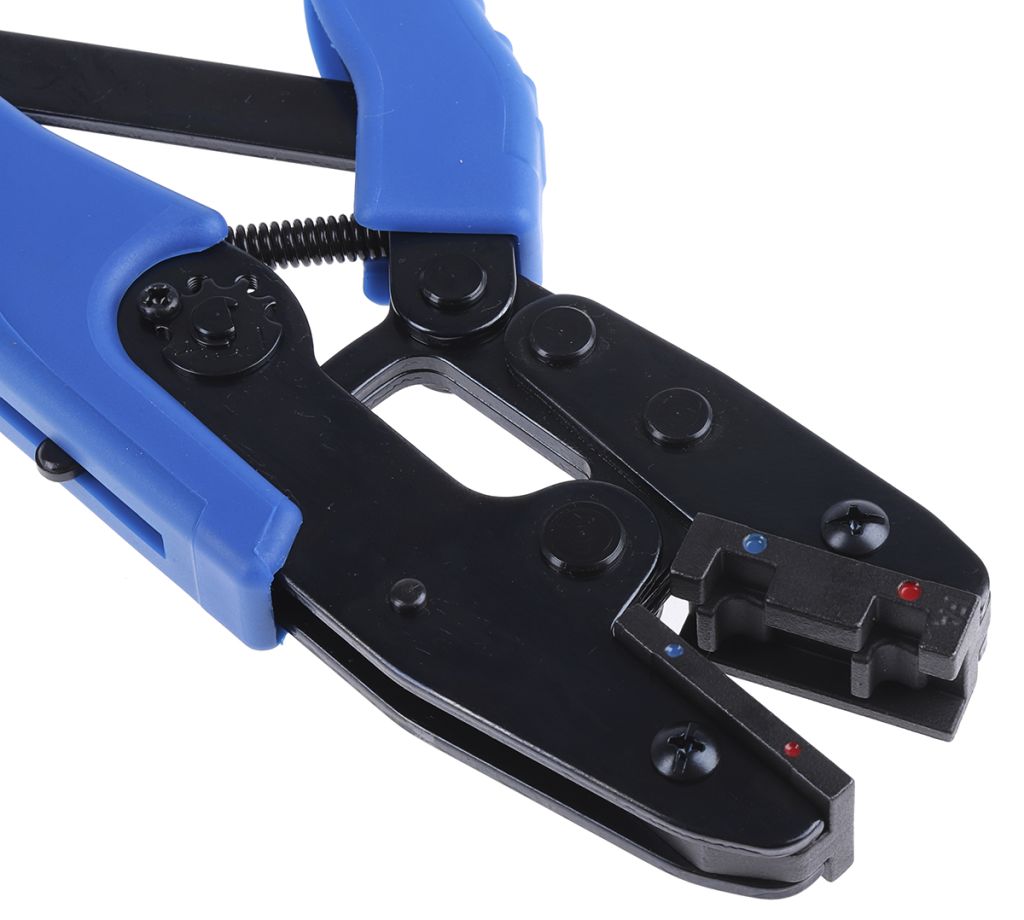

• Pressure adjustment and ratchet crimp action for reliable and repeatable termination
• Crimp release for safety
• Insulated Terminal Sizes
• AWG: 22-16/ 16-14
Applications
This durable and reliable terminal crimper can be used to crimp flag terminals onto appropriate wires, and as such has a wide range of uses in electrical connector applications. Particularly suited to automotive tasks, the crimping pliers is able to be used in heavy-duty applications. These RS PRO ratcheting terminal crimpers can be used where ever a hand tool is needed to terminate wires and cables, such as;
• Prototyping
• Electronics
• Engineering
• Test and Measurement
Does this tool have an integrated wire stripper?
No. In order to properly crimp flag terminals onto cables, a wire stripper or wire cutters may be needed to prepare the appropriate cable.
Why RS PRO?
RS PRO aims to be your go-to brand for reliability and value for money. We source high-quality parts at great prices and test everything with our in-house experts to ensure the quality you need.
When it comes to tools, we know that versatility and dependability are what you need. As such, we stock a variety of mainstay and specialist tools to suit any application. Whether you're a professional electrician, plumber, builder or DIY enthusiast, RS PRO is here to support you.
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Crimp Tool Type | Crimping Tool |
| Operation | Hand |
| Crimp Connector Type | Flag Terminal |
| Ratcheting | Yes |
