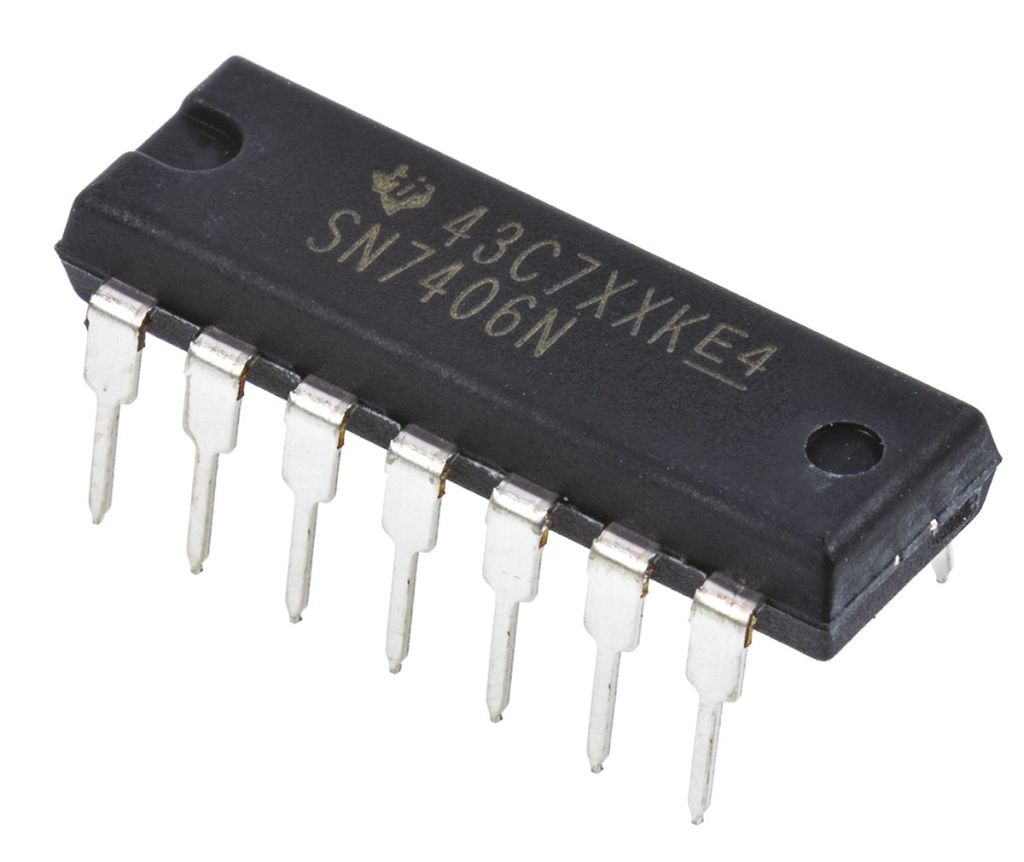

Texas Instruments SN7406N Hex Inverter, 14-Pin PDIP
- RS Stock No.:
- 0306320
- Mfr. Prt No.:
- SN7406N
- Brand:
- Texas Instruments
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 0306320 |
| Product description | Texas Instruments SN7406N Hex Inverter, 14-Pin PDIP |
| Manufacturer / Brand | Texas Instruments |
| Manufacturer part number | SN7406N |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 7, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Specifications
| Attribute | Value |
| Brand | Texas Instruments |
| Logic Function | Inverting Buffer |
| Output Type | Open Collector |
| Number of Elements per Chip | 6 |
| Schmitt Trigger Input | No |
| Maximum Propagation Delay Time @ Maximum CL | 23 ns @ 5 V |
| Maximum High Level Output Current | -0.25 mA |
| Maximum Low Level Output Current | 40 mA |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 14 |
| Logic Family | 74 |
| Dimensions | 19.3 x 6.35 x 4.57 mm |
| Height | 4.57 mm |
| Minimum Operating Temperature | 0 °C |
| Propagation Delay Test Condition | 15 pF |
| Maximum Operating Temperature | +70 °C |
| Length | 19.3 mm |
| Maximum Operating Supply Voltage | 5.25 V |
| Width | 6.35 mm |
| Minimum Operating Supply Voltage | 4.75 V |
