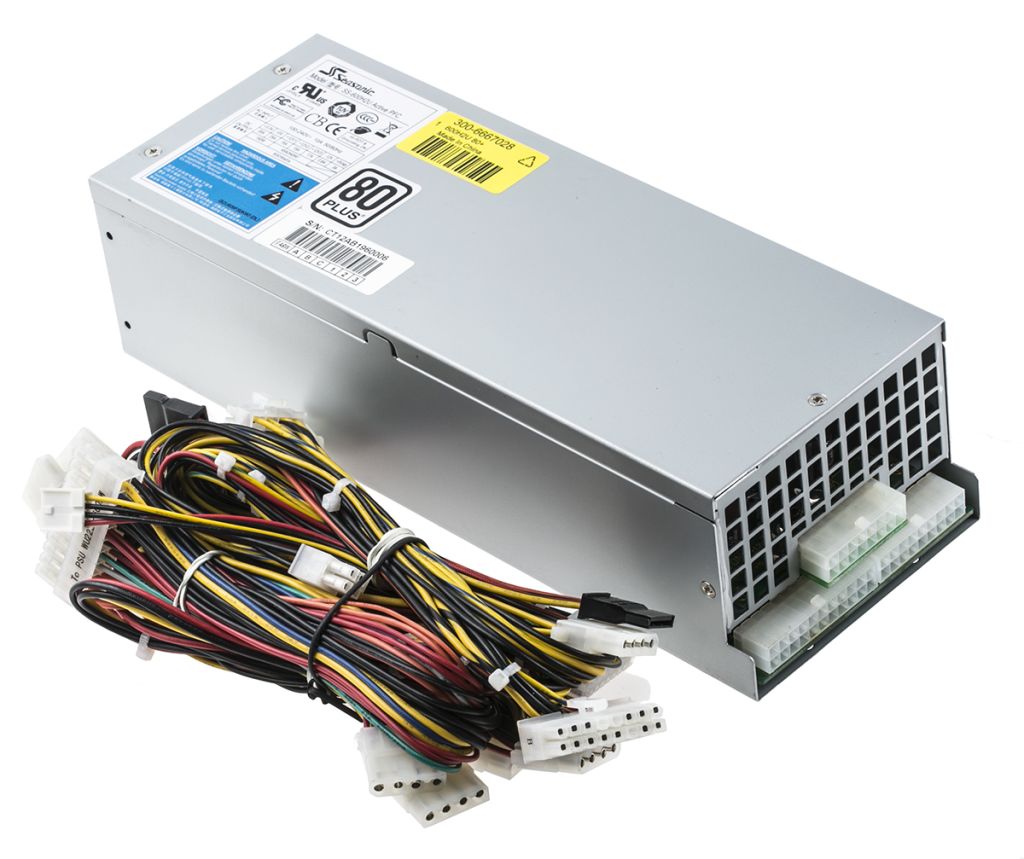

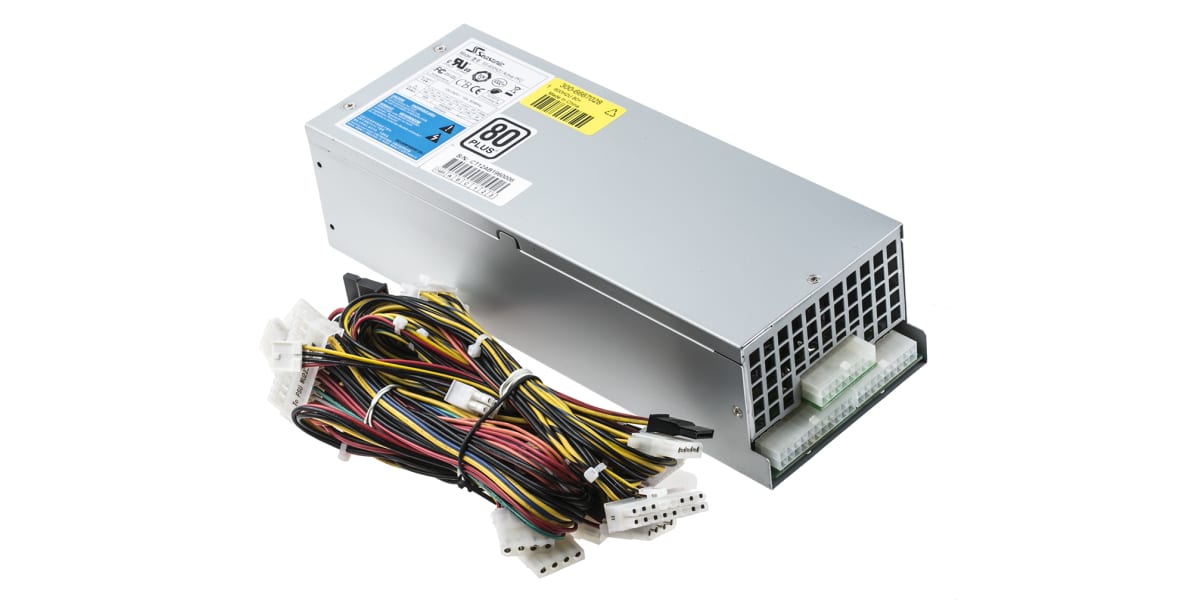

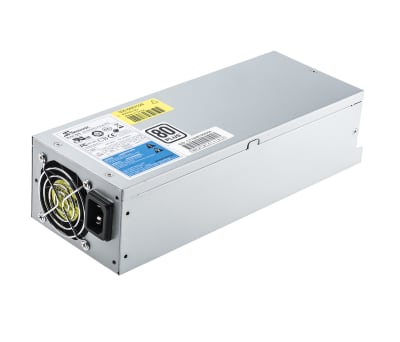

Seasonic 600W PC Power Supply, 90 → 264V ac Input, 3.3 V dc, 5 V dc, ±12 V dc Output
- RS Stock No.:
- 6667028
- Mfr. Prt No.:
- SS-600H2U APFC F0 80+
- Brand:
- Seasonic
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 6667028 |
| Product description | Seasonic 600W PC Power Supply, 90 → 264V ac Input, 3.3 V dc, 5 V dc, ±12 V dc Output |
| Manufacturer / Brand | Seasonic |
| Manufacturer part number | SS-600H2U APFC F0 80+ |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 6667028 |
| Product description | Seasonic 600W PC Power Supply, 90 → 264V ac Input, 3.3 V dc, 5 V dc, ±12 V dc Output |
| Manufacturer / Brand | Seasonic |
| Manufacturer part number | SS-600H2U APFC F0 80+ |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 21, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details
Seasonic 400W & 600W 2U Rack Mount Industrial 80 Plus ATX Computer Power Supply
APPROVALS : UL/cUL recognised, TUV, CB, CCC, FCC, C-Tick
80 Plus certified
Industrial 2U rackmount PSU
Active power factor correction: EN61000-3-2
80% Super high efficiency
High 50°C operating temperature
Over-voltage, over-power and short circuit protection
Easy swap connector design
Supplied with 24 pin mother board connector
Specifications
| Attribute | Value |
| Brand | Seasonic |
| Input Voltage | 90 → 264 V ac |
| Output Voltage | 3.3 V dc, 5 V dc, ±12 V dc |
| Power Rating | 600 W |
| Output Current | 3 A, 15 A, 17 A, 20 A, 25 A, 800 mA |
| Number of Outputs | 7 |
| Length | 270 mm |
| Width | 100 mm |
| Depth | 70 mm |
| Mounting Type | Rack Mount |
| Efficiency | 80 % |
| Load Regulation | ±5 % |
| Line Regulation | ±1 % |
| Minimum Temperature | 0 °C |
| Weight | 1.7 kg |
| Maximum Temperature | +50 °C |
