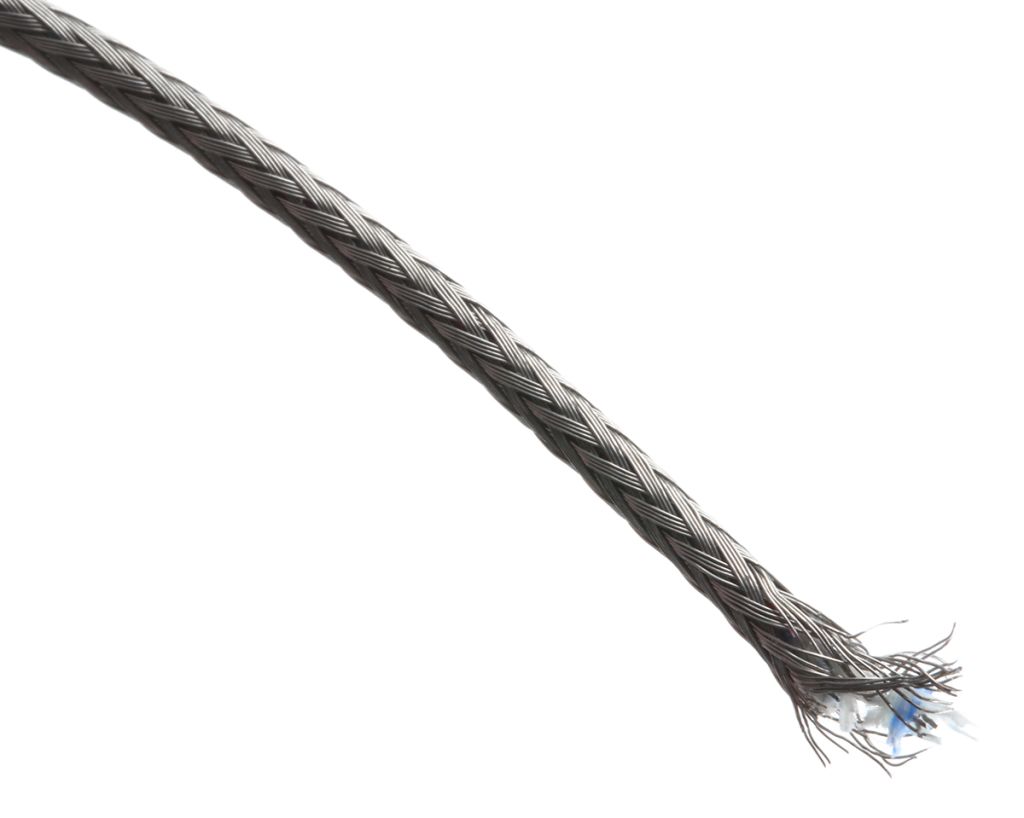

K STRAND THERMOCOUPLE EXTENSION WIRE,10M
- RS Stock No.:
- 0158979
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 0158979 |
| Product description | K STRAND THERMOCOUPLE EXTENSION WIRE,10M |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 29, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Old Colour Code Thermocouple Extension Cable
These products are old colour code thermocouple cables according to BS1843.
Suitable for extending thermocouple leads without introducing spurious emf’s
Type J has a 5mm overall diameter
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Length | 10 m |
| Insulation Material | Glass Fibre |
| Thermocouple Type | K |
| Maximum Operating Temperature | +350 °C |
| Screened/Unscreened | Unscreened |
| Core Strands | 7/0.2 mm |
| Cable Shape | Flat Pair |
| Number of Strands | 7 |
| Size of Strands | 0.2 mm |
| Standards Met | BS |
