RS PRO 9mm probe Inspection Camera Kit, 1m Probe Length, LED Illumination
- RS Stock No.:
- 8065875
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 8065875 |
| Product description | RS PRO 9mm probe Inspection Camera Kit, 1m Probe Length, LED Illumination |
| Manufacturer / Brand | RS PRO |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8065875 |
| Product description | RS PRO 9mm probe Inspection Camera Kit, 1m Probe Length, LED Illumination |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 25, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: IT
Product Details
Endoscope Wireless Kit
Indicated in the use for: internal control cracks, reading the serial number within equipment, recovering lost objects, the internal control of pipes and wall cavity, internal inspection of equipment, localization of cables and pipes, control and polls of connectors and electrical outlets, and analysis of inspection and quality control / inspection insulation
Video Camera
Image Sensor: 1/4 CMOS
Viewing angle: 30-45ﾟ
Lighting: 2 LEDs
Depth display in the dark: 1.5m
Degree of protection: IP67
Power supply: 4 AA batteries (not included)

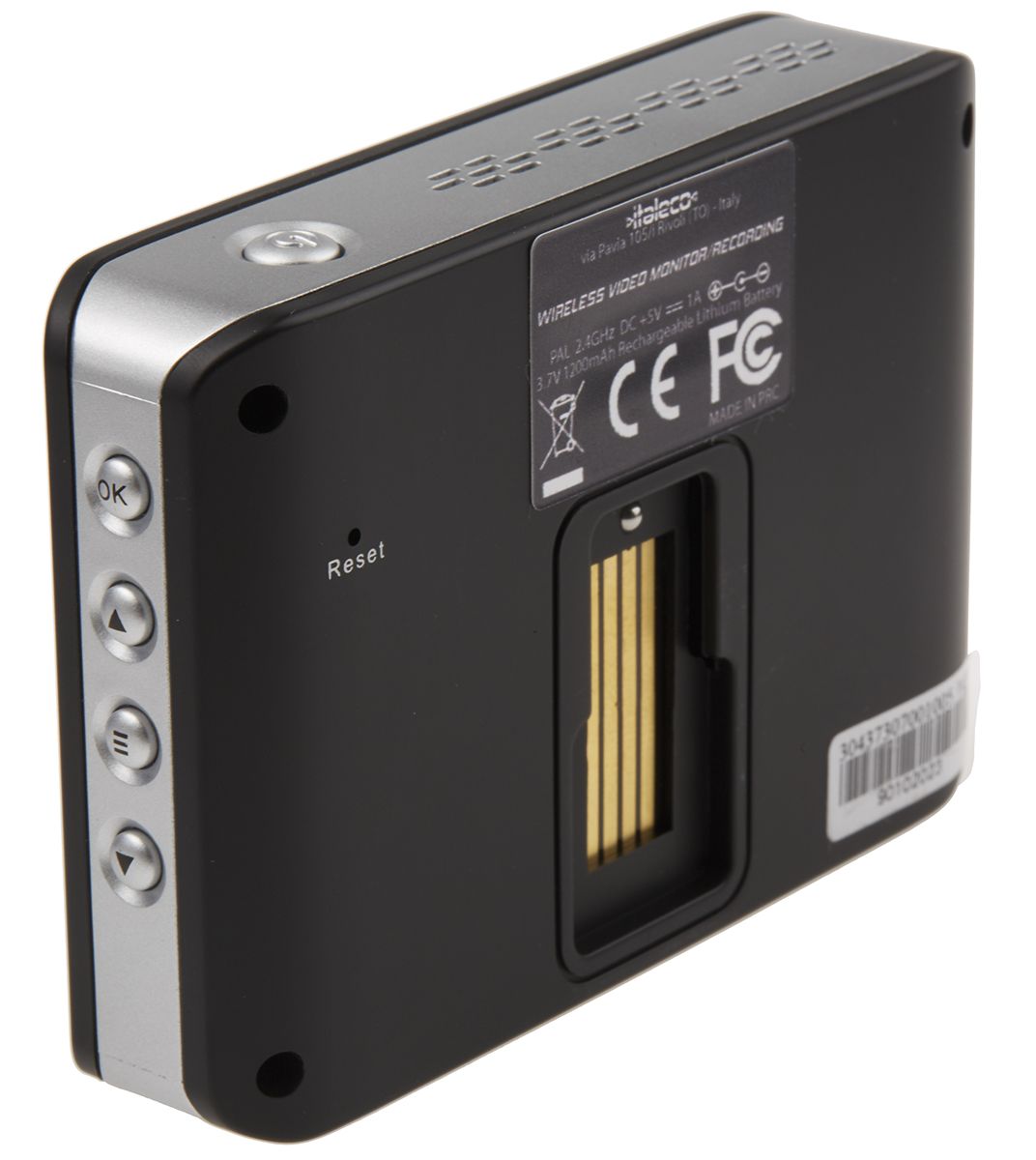

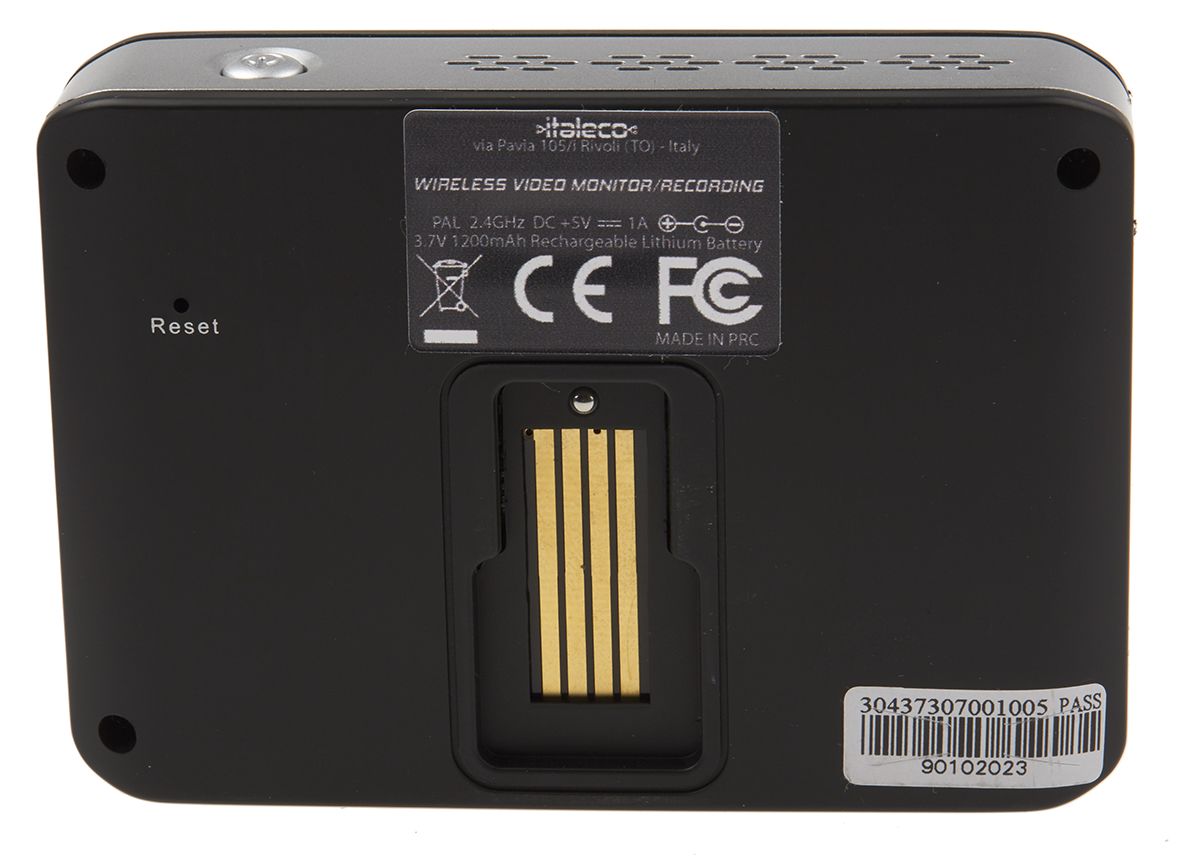

Monitor

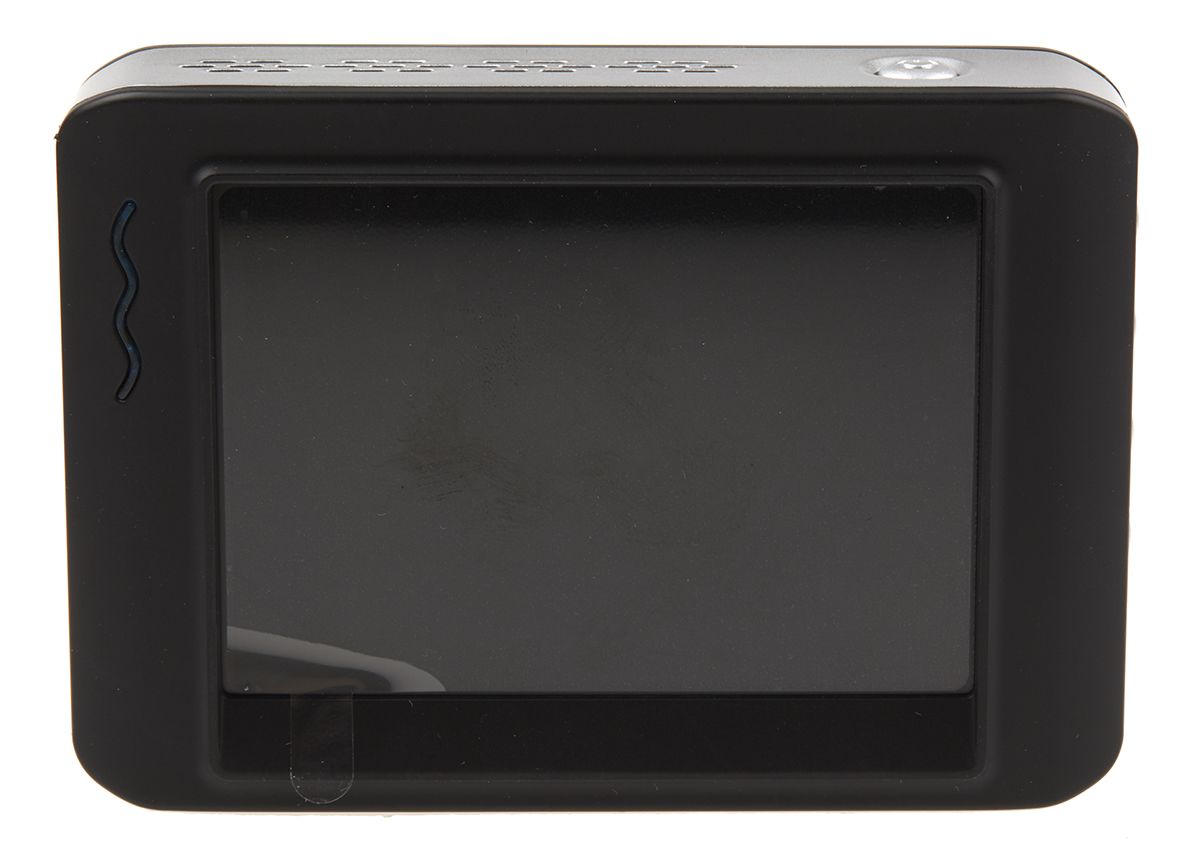

Display screen: 3.6in. colour TFT-LCD wireless
Resolution: 480x240 pixels
Power Supply: Li -Rechargeablei
video out
Ability to record photos and pictures on SD card (not included)
Possibility to connect wireless USB

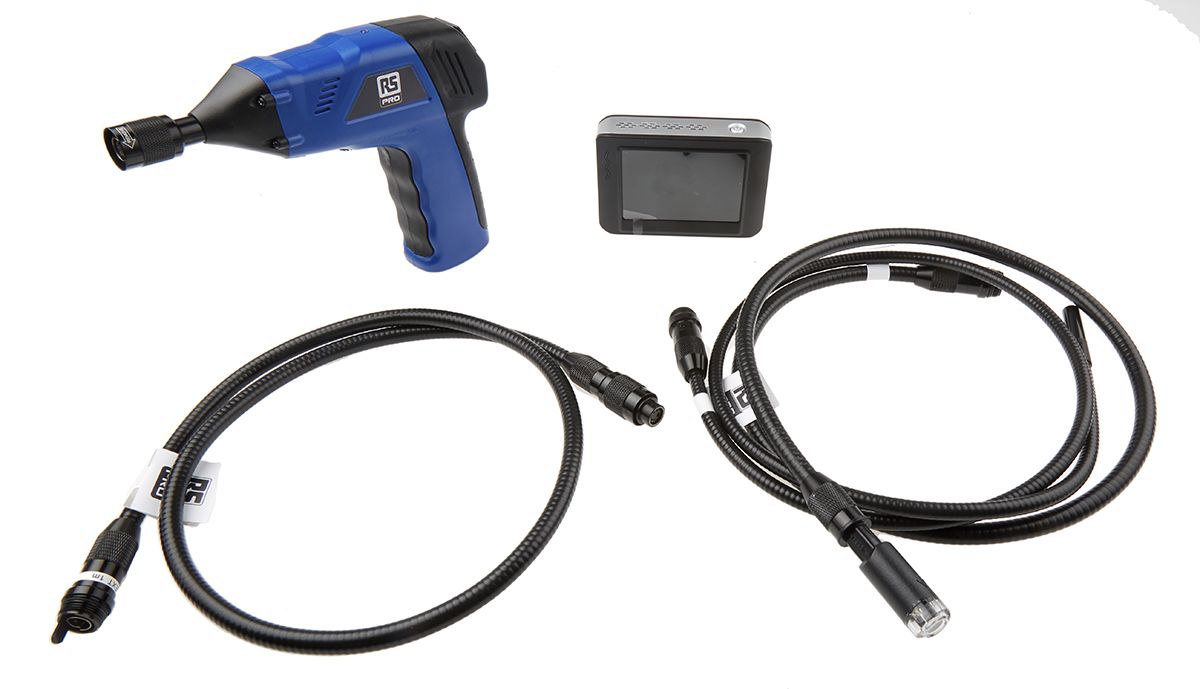

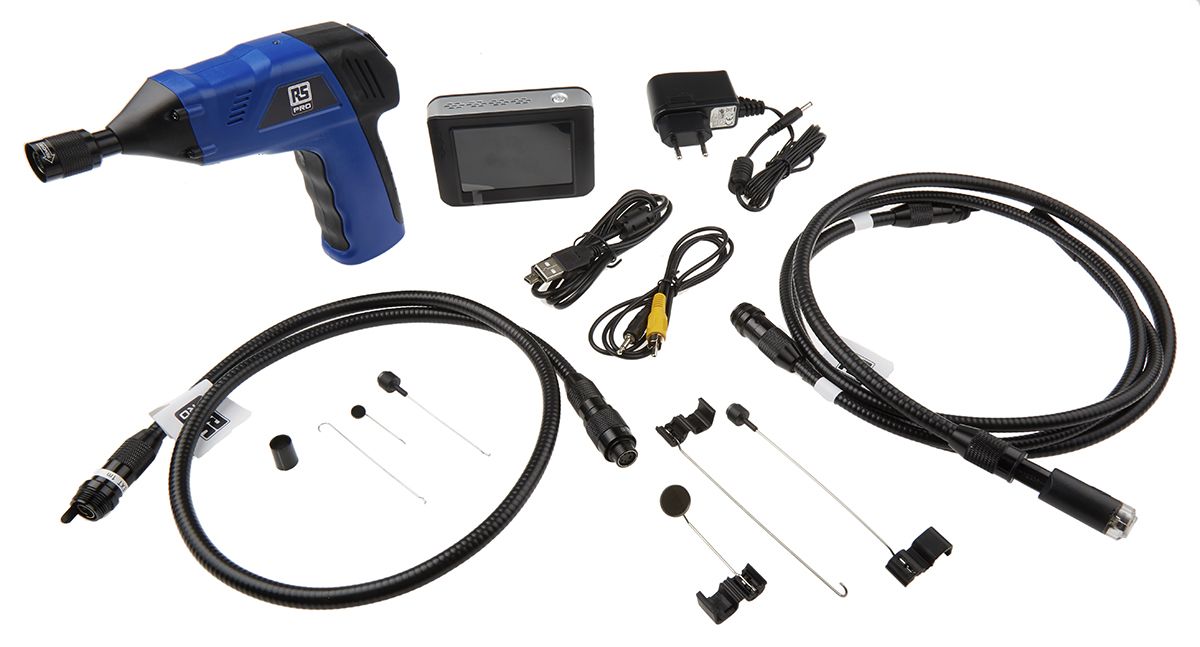

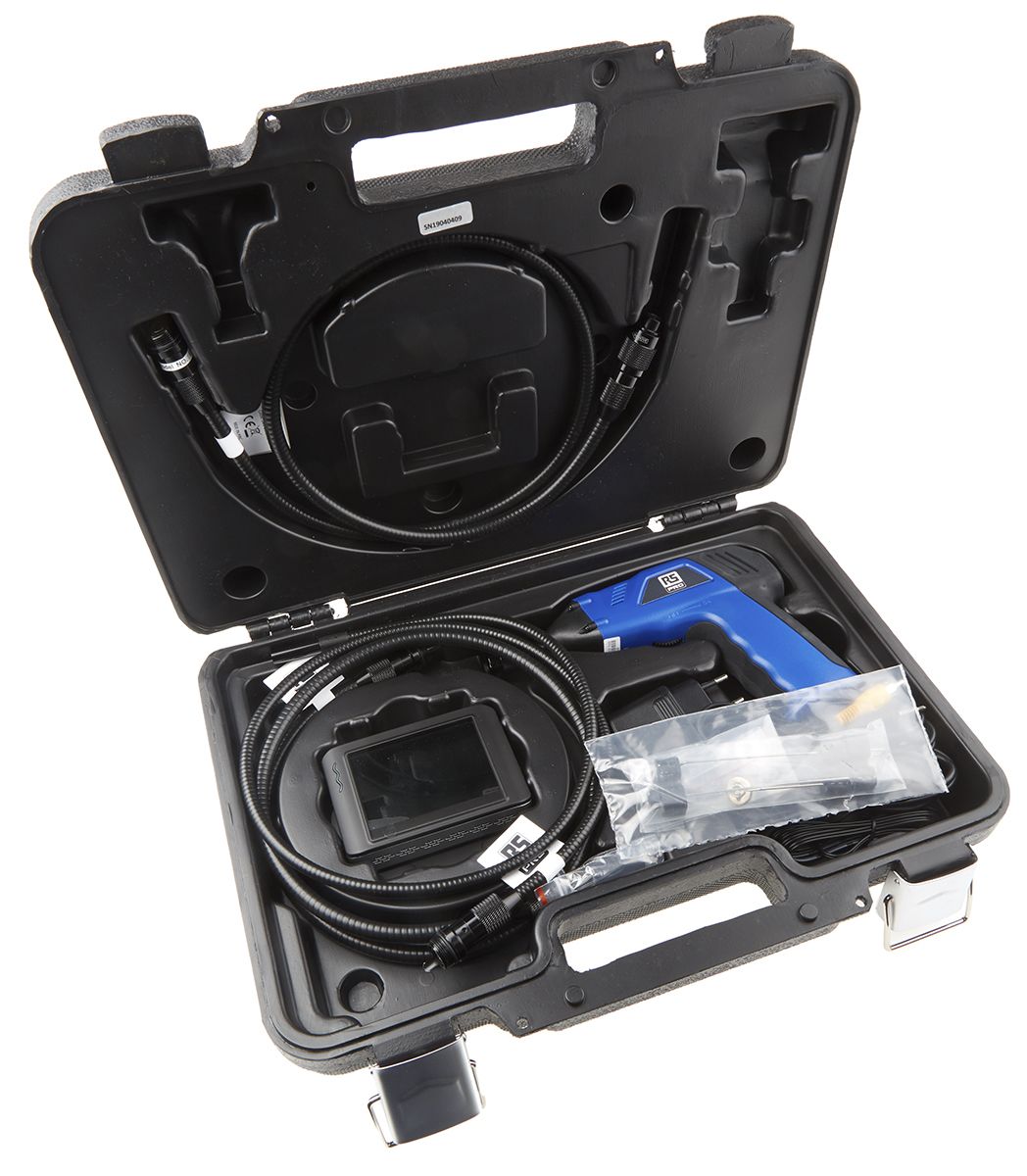

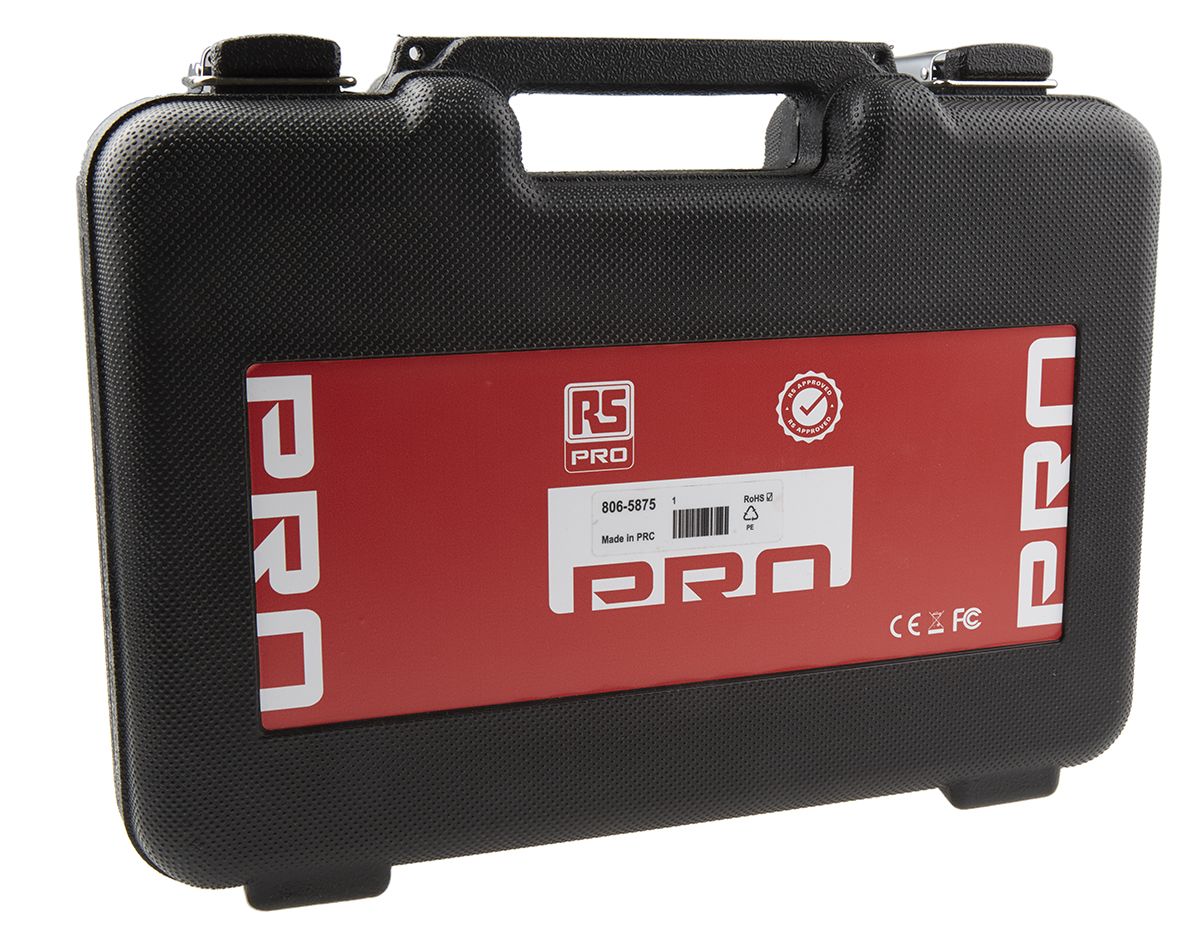

Contents in case

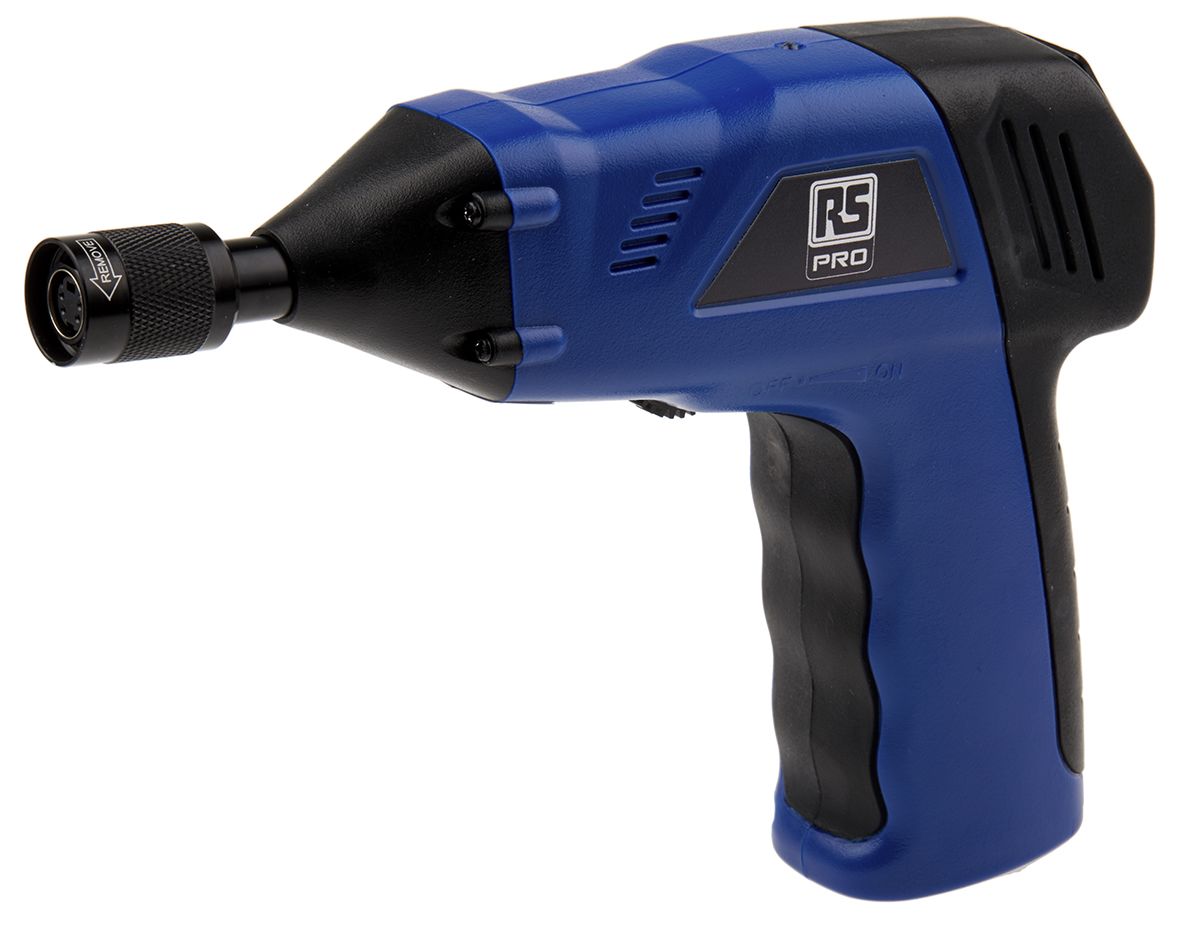

Body endoscope
LCD Monitor

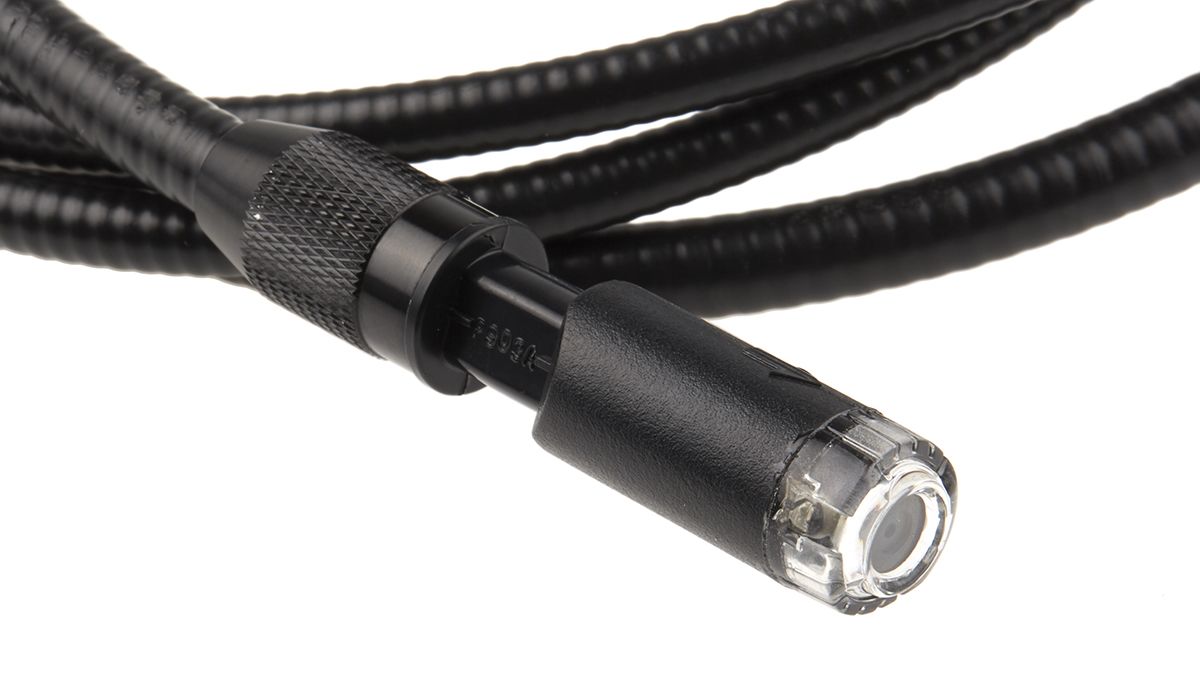

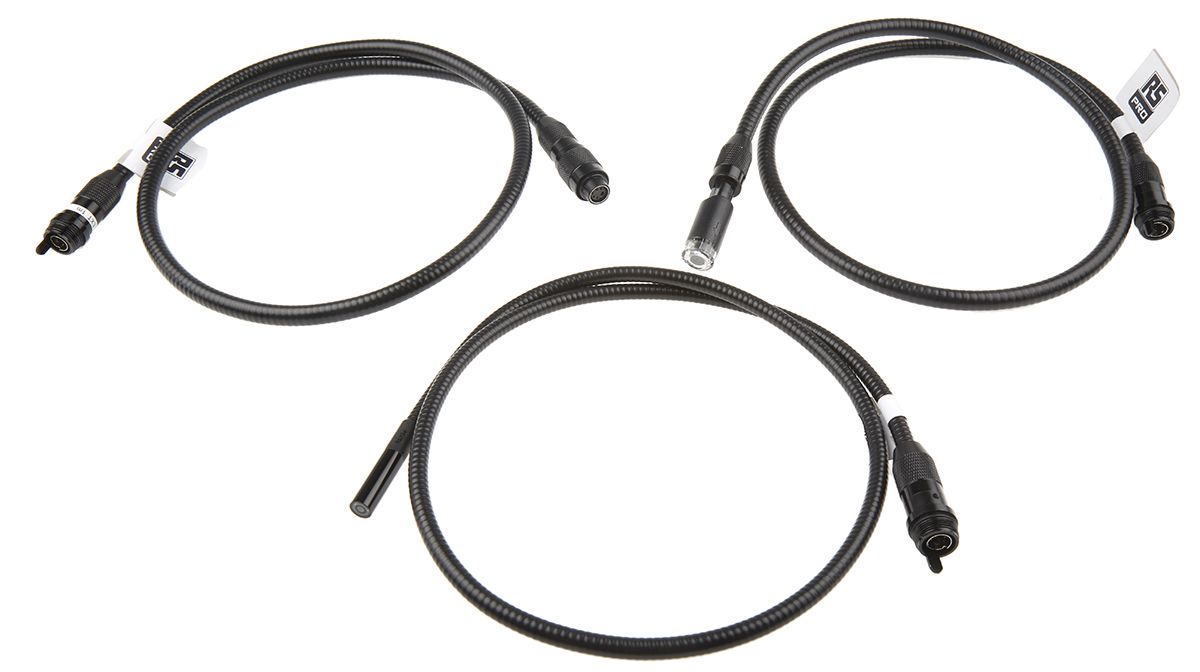

Flexible probe 1m camera with 9mm
Flexible probe with 1m diameter 17mm camera
Extension probe flexible - 1m

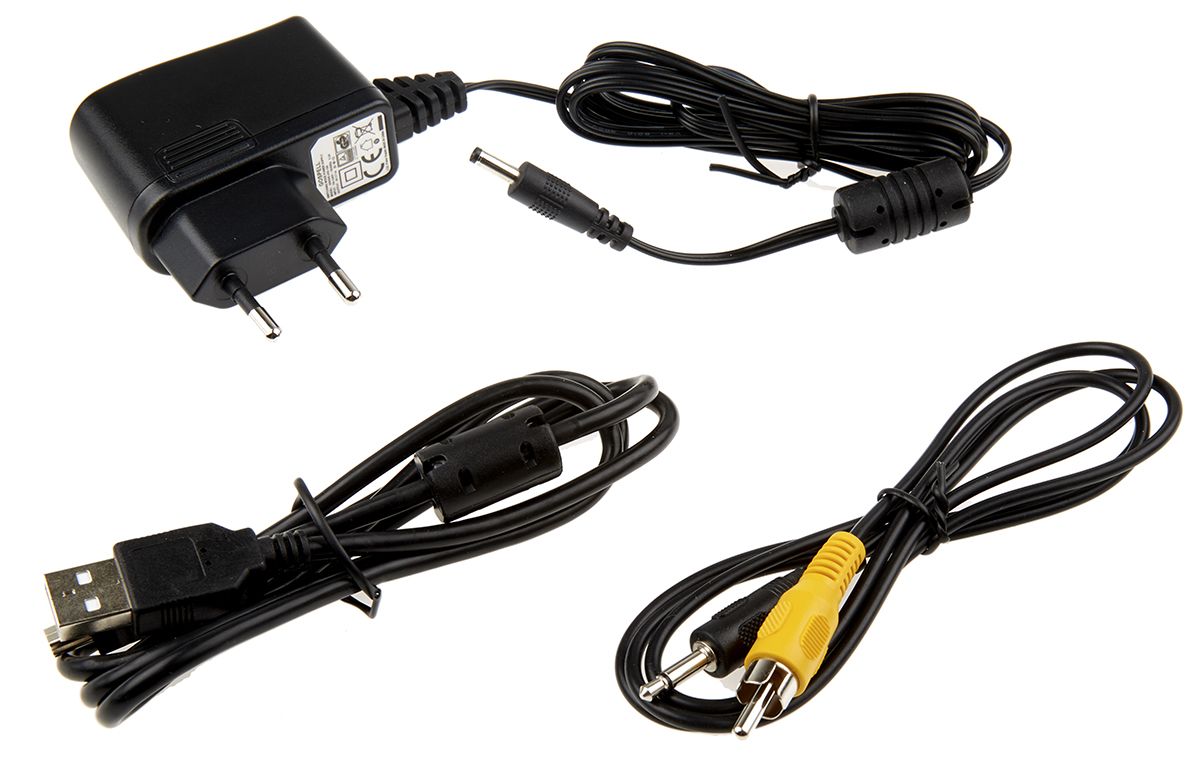

Power supply
Battery charger
Mirror, hook and magnet
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Probe Length | 1 m |
| Probe Diameter | 9 mm |
| Minimum Focus Distance | 17 mm |
| Illumination Type | LED |
