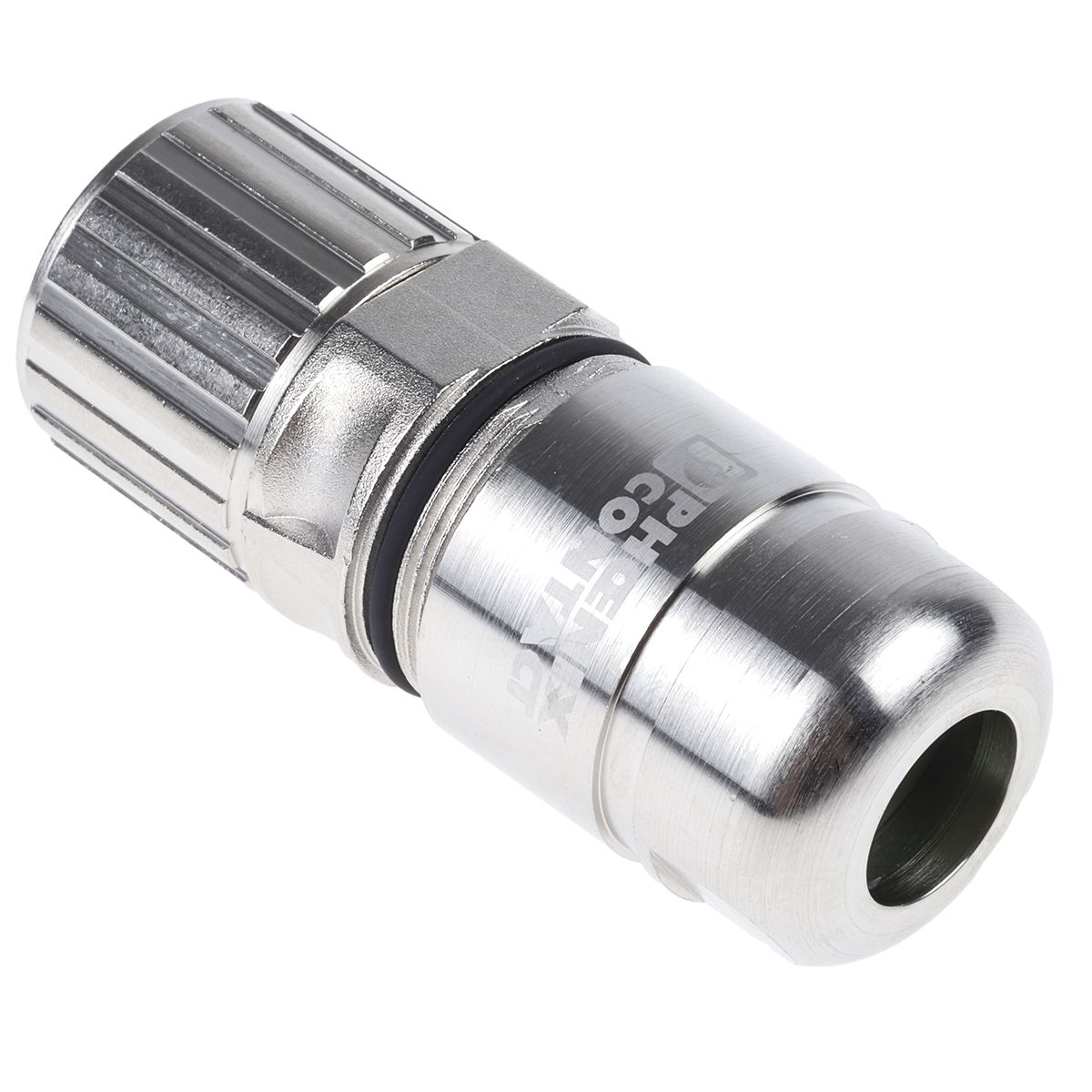

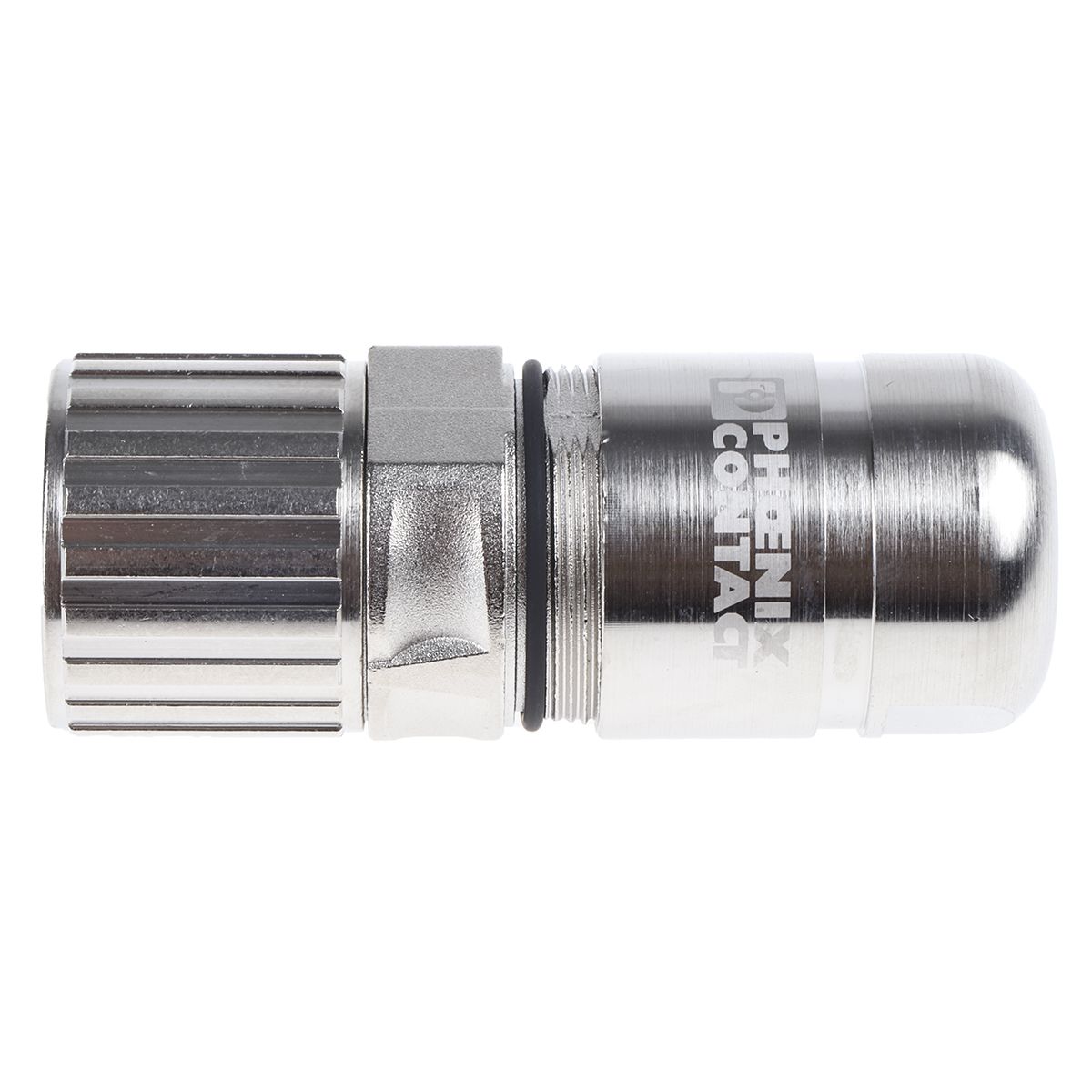

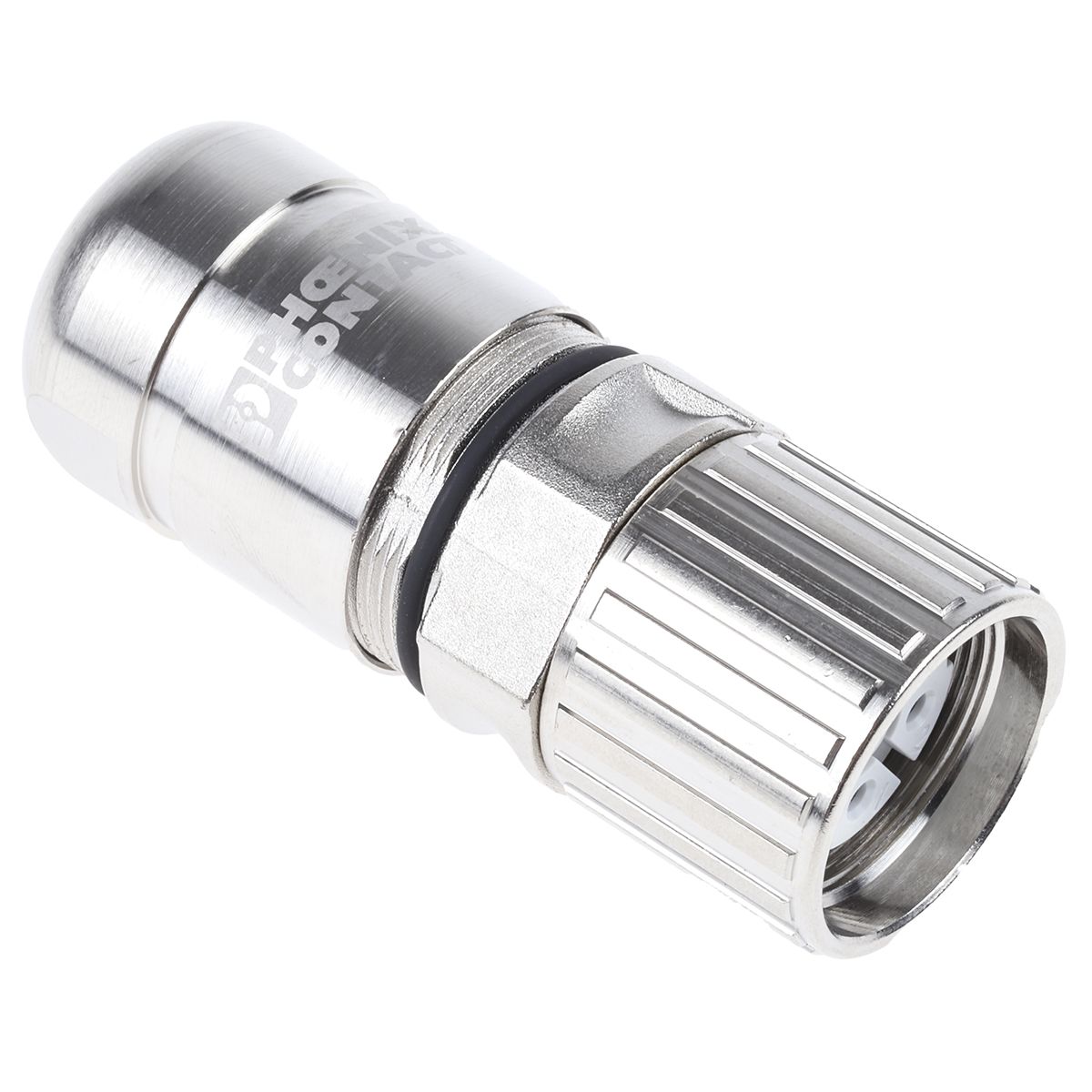

Phoenix Contact Cable Mount Connector, 5 + PE Contacts, M23 Connector, Socket
- RS Stock No.:
- 8027218
- Mfr. Prt No.:
- 1605532
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 8027218 |
| Product description | Phoenix Contact Cable Mount Connector, 5 + PE Contacts, M23 Connector, Socket |
| Manufacturer / Brand | Phoenix Contact |
| Manufacturer part number | 1605532 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8027218 |
| Product description | Phoenix Contact Cable Mount Connector, 5 + PE Contacts, M23 Connector, Socket |
| Manufacturer / Brand | Phoenix Contact |
| Manufacturer part number | 1605532 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 22, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: DE
Product Details
M23 Power Plug-in Connectors, 6 Way
From Phoenix Contact comes a great M23 power plug-in connector. The 1605532 is a M23 connector with 5 poles and earth. This connector is also shielded and boasts compatibility with Phoenix's large range of SPEEDCON connectors. Not to mention, the 1605532 provides consistent EMC protection, a crimp connection that is vibration and temperature resistant in assembly and has flexible use with the connector accepting 7.5mm up to 14mm cables.
Features and benefits:
- Fully shielded
- EMC protection for reliability
- IP67 rating
- Screw locking lock
- Operating temperatures: -40 °C to +125 °C
- Housed in a strong zinc housing
Accessories:
2mm Crimp contacts – 802-7274, 922-6387, 802-7286
Specifications
| Attribute | Value |
| Brand | Phoenix Contact |
| Termination Method | Crimp |
| Series | SF-5ES1N8A80DU |
| Pole Format | 5 + PE |
| Mating Type | N Coded |
| IP Rating | IP67 |
| Number of Contacts | 5 + PE |
| Contact Gender | Female |
| Plug/Socket | Socket |
| Voltage Rating | 630.0 V |
| Connector Size | M23 |
| Current Rating | 30.0 A |
| Coding | N |
| Housing Material | Copper Alloy, Zinc Alloy |
| Mounting Type | Cable Mount |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -20 °C |
| Body Orientation | Straight |
| Shell Size | M23 |
