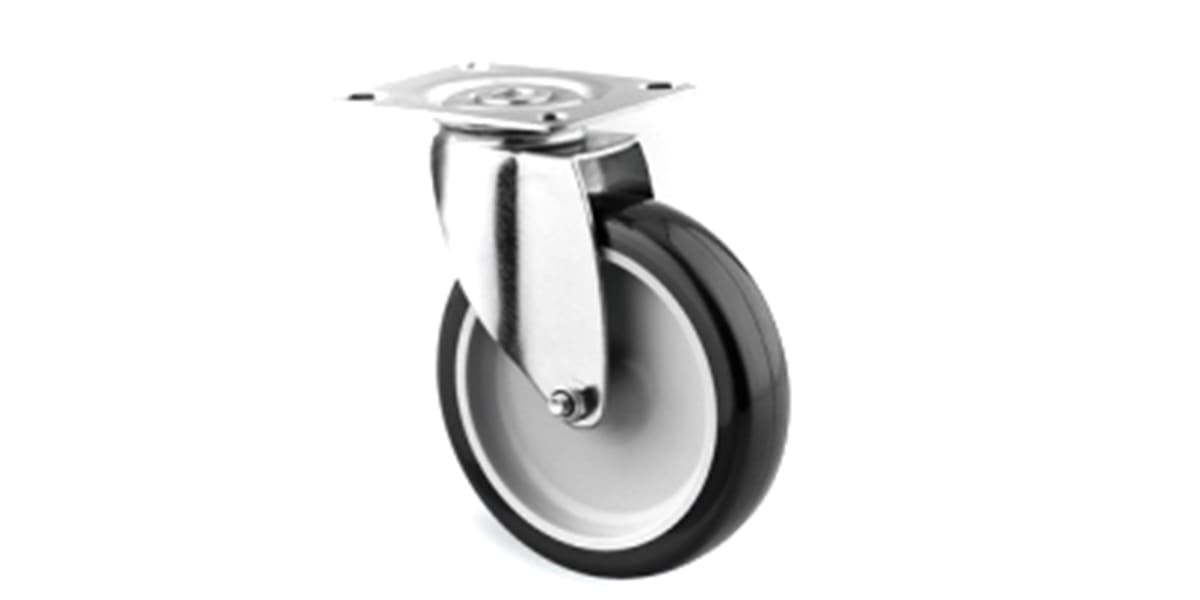

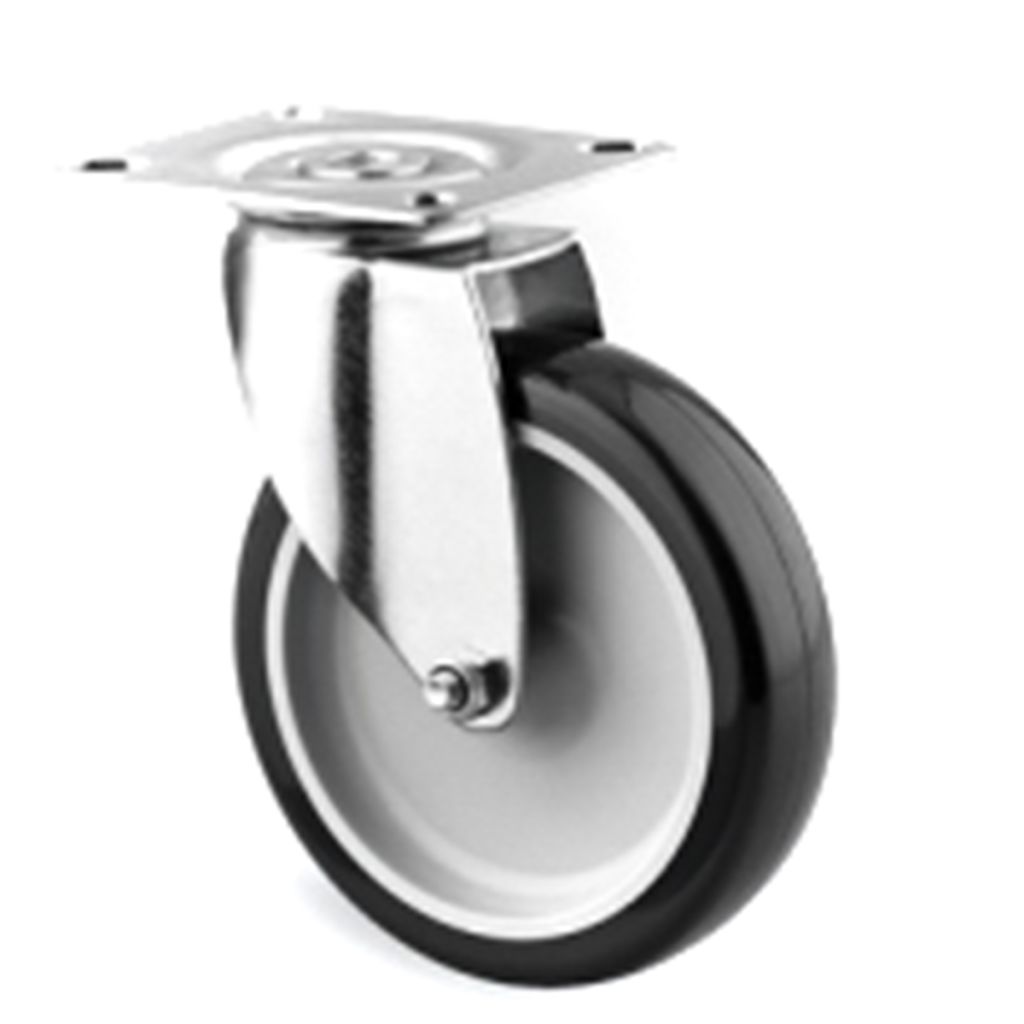

Tente Swivel Castor Wheel, 60kg Capacity, 75mm Wheel
- RS Stock No.:
- 1721110
- Mfr. Prt No.:
- 1470PAO075P40
- Brand:
- Tente
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
RS stock number | 1721110 |
Product description | Tente Swivel Castor Wheel, 60kg Capacity, 75mm Wheel |
Manufacturer / Brand | Tente |
Manufacturer part number | 1470PAO075P40 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
Date | Nov 15, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: DE
Product Details
Specifications
Attribute | Value |
Brand | Tente |
Wheel Diameter | 75 mm |
Load Capacity | 60 kg |
Overall Height | 100 mm |
Wheel Width | 25 mm |
Mounting Type | Plate |
Fixing Plate Dimensions | 60 x 60 mm |
Rotation | Swivel |
Application | Institutional |
Tyre Material | Polyurethane |
Includes Brake | No |
Fixing Centres | 48 x 38 x 48 x 38 mm |
Weight Class | Light Duty |
Features | Blue Passivated, Bright Zinc Plated, Double Ball Bearing Swivel Head, Housing Made of Pressed Steel, Load Capacity Tested According EN 12530, Wheel Axle with Nut |
Number of Fixing Holes | 4 |
Fixing Hole Size | 6.3 mm |
Hub Bearing Type | Ball Bearing, Plain Bearing |
Hub Material | PP |
