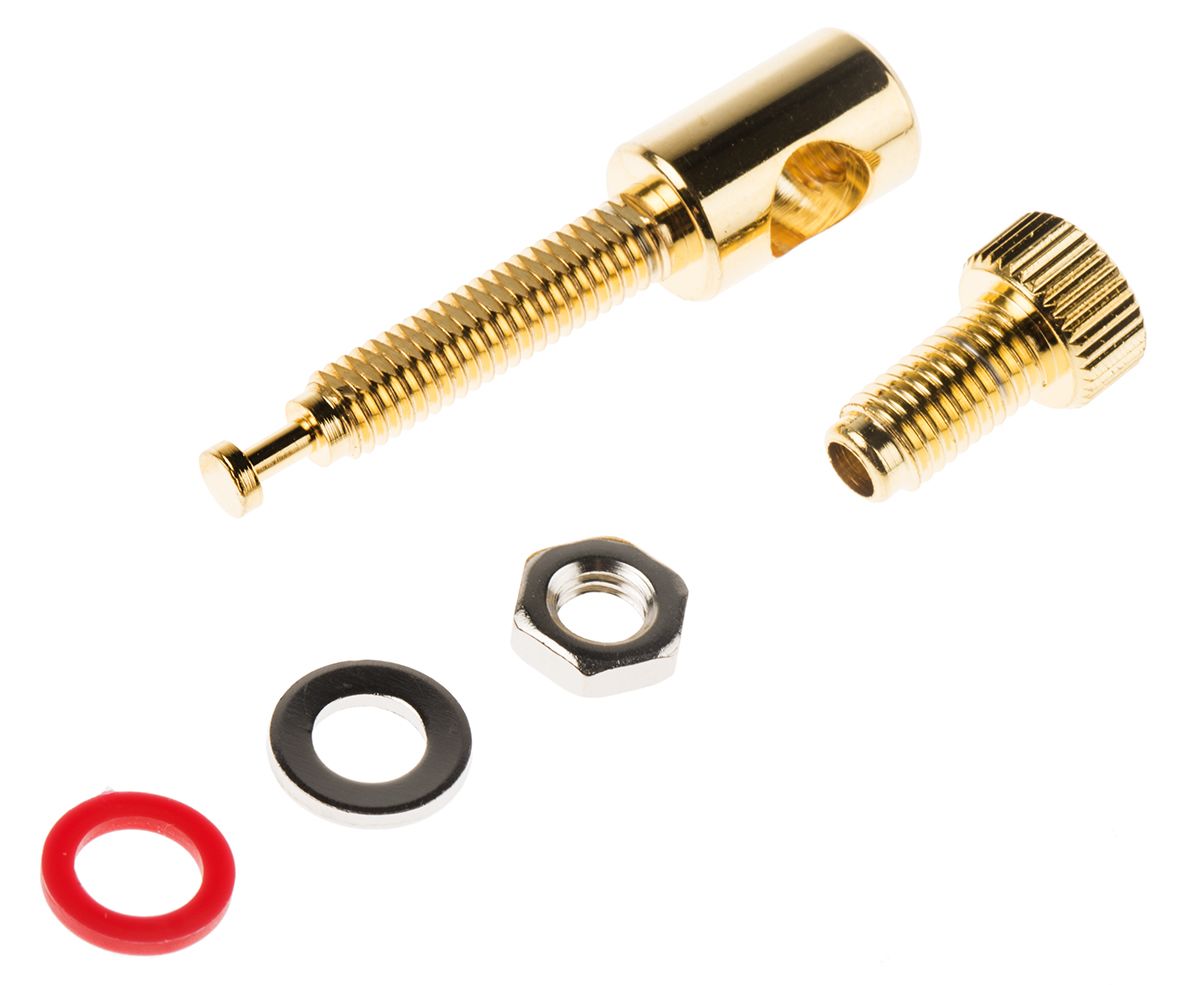

RS PRO Chassis Mount Loudspeaker Connector Plug, 1 Way, 16A, Screw Down Termination
- RS Stock No.:
- 0458190
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
RS stock number | 0458190 |
Product description | RS PRO Chassis Mount Loudspeaker Connector Plug, 1 Way, 16A, Screw Down Termination |
Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
Date | Nov 9, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: GB
Product Details
4mm Standard Terminals
High quality, gold plated 4mm audio connectors. The plug is stackable with a large entry hole which accepts cable up to a maximum of 7.5mm O.D. or cable may be clamped via the knurled screw. The chassis terminal accepts 4mm plugs in the top, and again has a large entry hole to accept cable up to a maximum of 7.5mm O.D. Maximum panel thickness 20mm. Connectors are available colour coded in either red or black. For suitable cable see stock no. 460-190.
WARNING : Not to be used as mains connectors
Specifications
Attribute | Value |
Brand | RS PRO |
Gender | Male |
Number of Contacts | 1 |
Body Orientation | Straight |
Contact Material | Brass |
Mounting Type | Chassis Mount |
Housing Material | Brass |
Contact Plating | Gold over Nickel |
Termination Method | Screw Down |
Colour | Red |
Current Rating | 16 A |
