RS PRO Mix Cutting Fluids Refractometer, 18% max, 0% min
- RS Stock No.:
- 8771781
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
RS stock number | 8771781 |
Product description | RS PRO Mix Cutting Fluids Refractometer, 18% max, 0% min |
Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
Date | Nov 26, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details

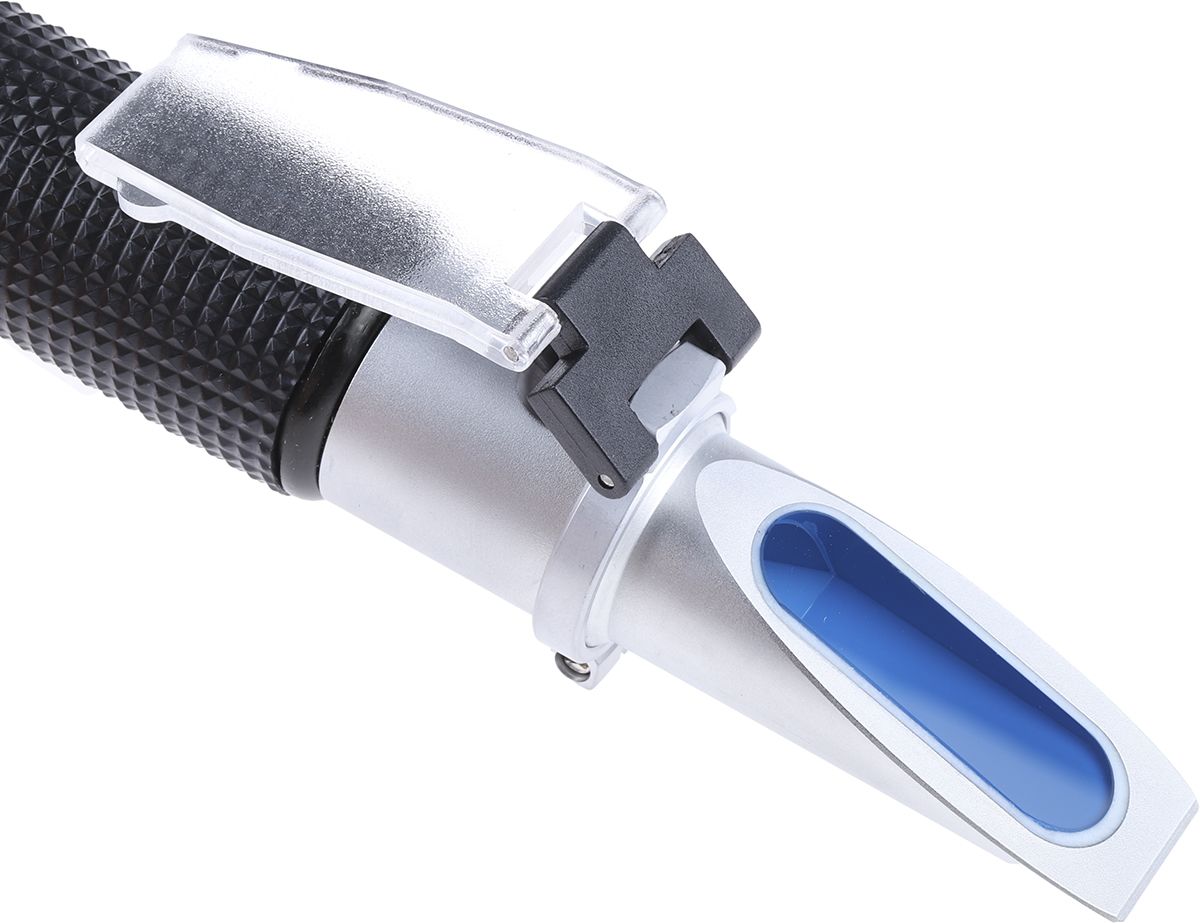

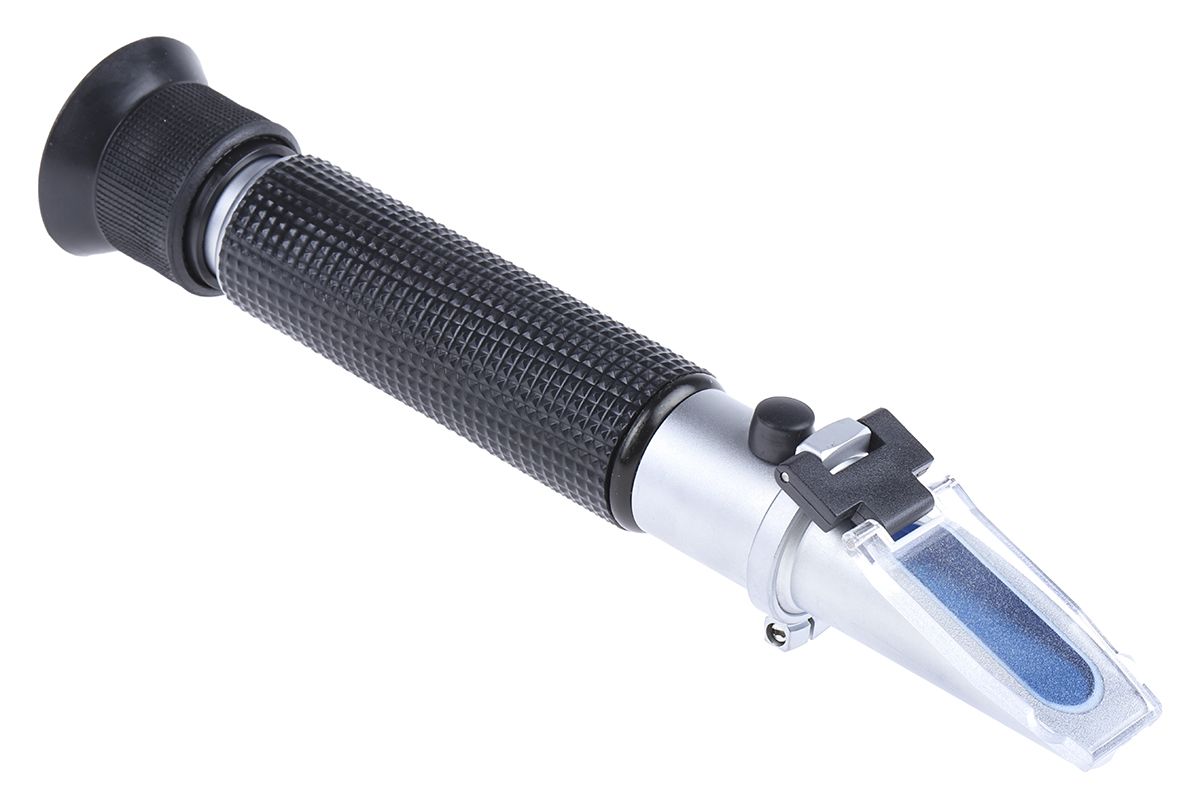

RS PRO Mix Cutting Fluids Refractometer
An ideal measurement tool which provides quick analysis of water concentration mixes. This refractometer enables easy and accurate dilution control with a prism screen which possesses a much greater refractive index than the sample solution to be measured.
Features and Benefits:
• Simple to use and re-calibrate
• Ergonomic design with rubber grip
• Calibration adjustment screw
• Quick and accurate measurement
• Easy and accurate dilution control
• 0 -18% Brix scale range
• ±0.1 % accuracy

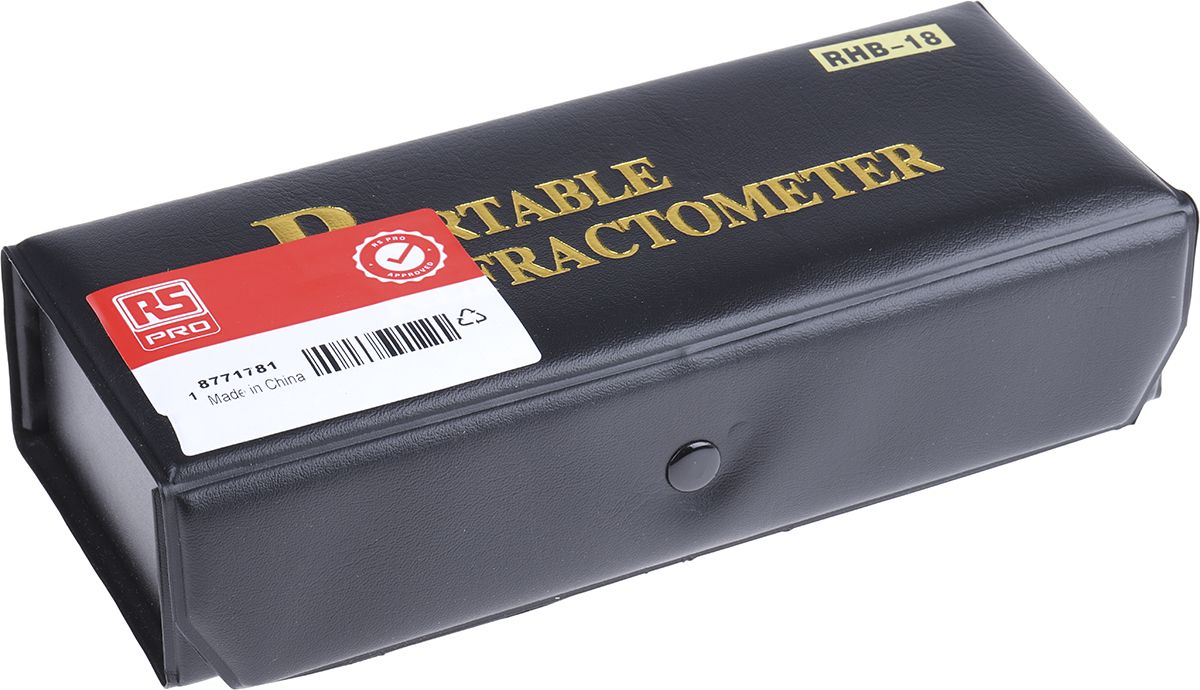

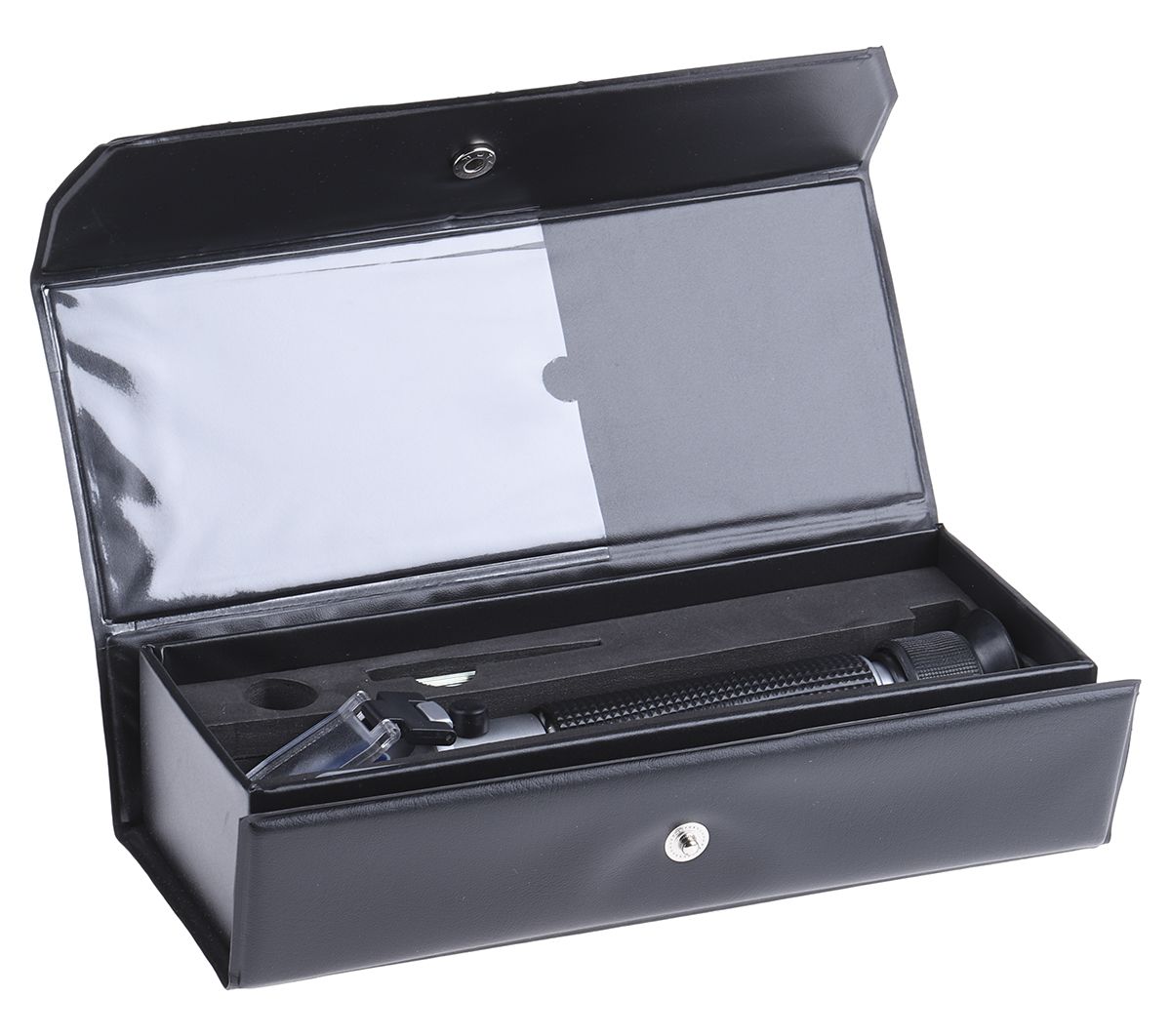

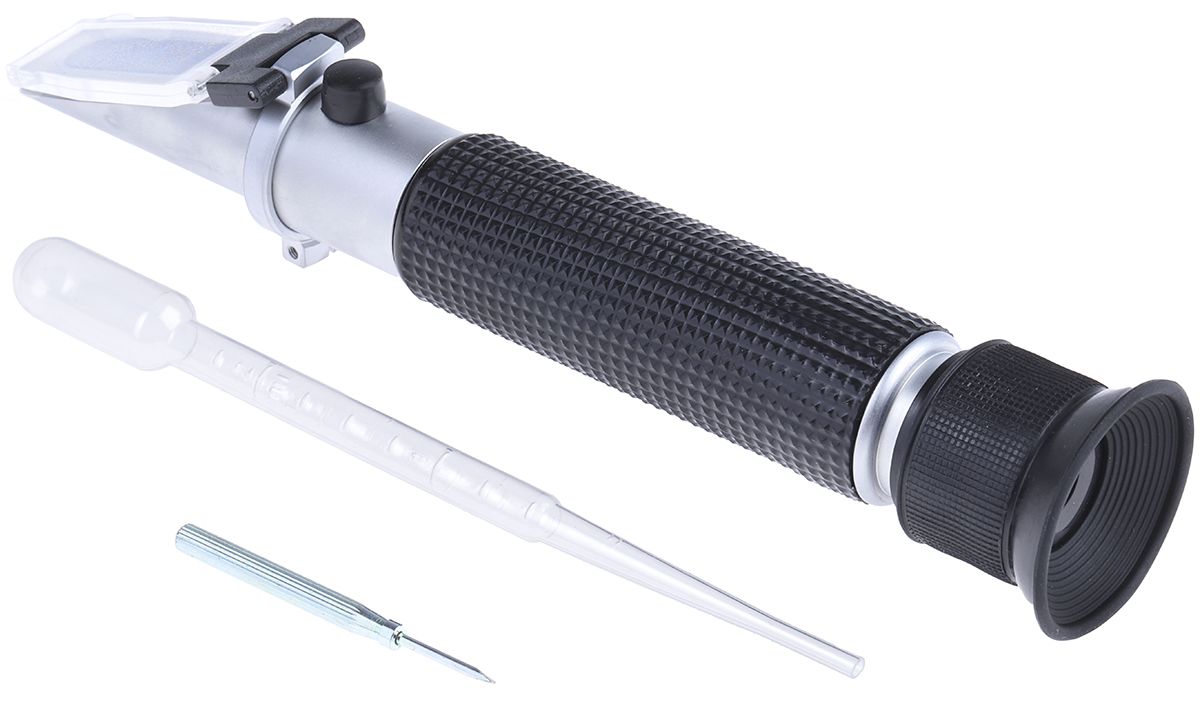

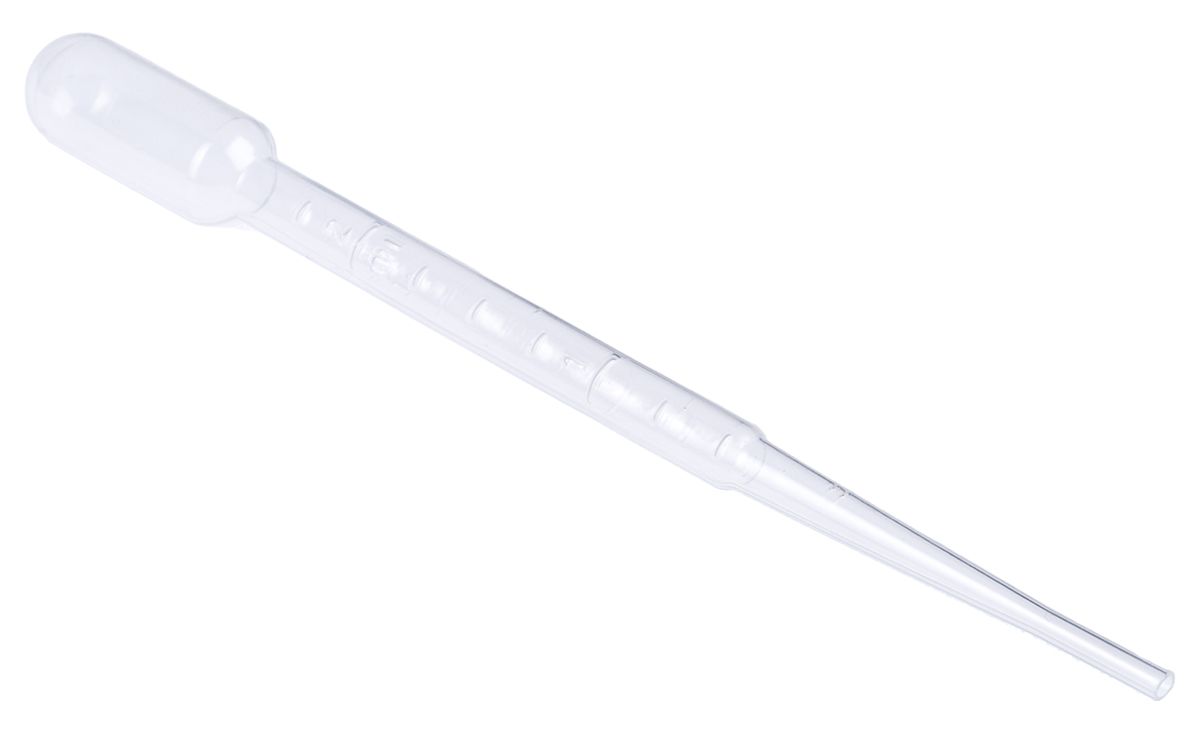

Accessories include a plastic specimen dropper, calibration adjustment tool and a fitted instrument case.
How does a refractometer work?
Refractometers are instruments used in measuring the index of refraction in liquid, gas and translucent solids. They usually have a prism screen and eye piece with a Brix scale, 2-3 drops of a solution to be measured are added to the prism, the refractometer is then pointed in the direction of a light source. The prism possesses a greater refractive index than the sample solution to be measured. In a weak sample the difference between the refractive index of the solution and the prism is great, therefore the angle of refraction is large on the scale. In a strong sample the opposite is shown, so a smaller angle of refraction on the scale. The prism and sample must both be at the same temperature to ensure accurate results.
Specifications
Attribute | Value |
Brand | RS PRO |
Height | 60 mm |
Width | 96 mm |
Length | 230 mm |
Weight | 525 g |
Refractometer Type | Mix Cutting Fluids |
Dimensions | 96 x 60 x 230 mm |
Best Accuracy | ±0.1 % |
Minimum Measurement | 0 % |
Resolution | 0.1 %Brix |
Maximum Measurement | 18 % |
