Facom 167 mm Wire Stripper, 4mm ￫ 28mm
- RS Stock No.:
- 7653361
- Mfr. Prt No.:
- 872271PB
- Brand:
- Facom
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 7653361 |
| Product description | Facom 167 mm Wire Stripper, 4mm ￫ 28mm |
| Manufacturer / Brand | Facom |
| Manufacturer part number | 872271PB |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 23, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: TW
Product Details

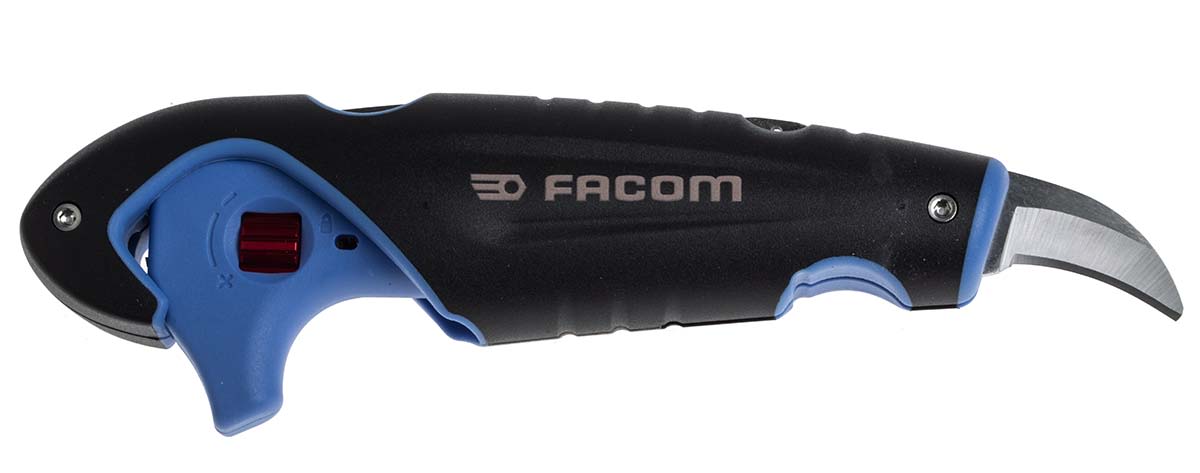

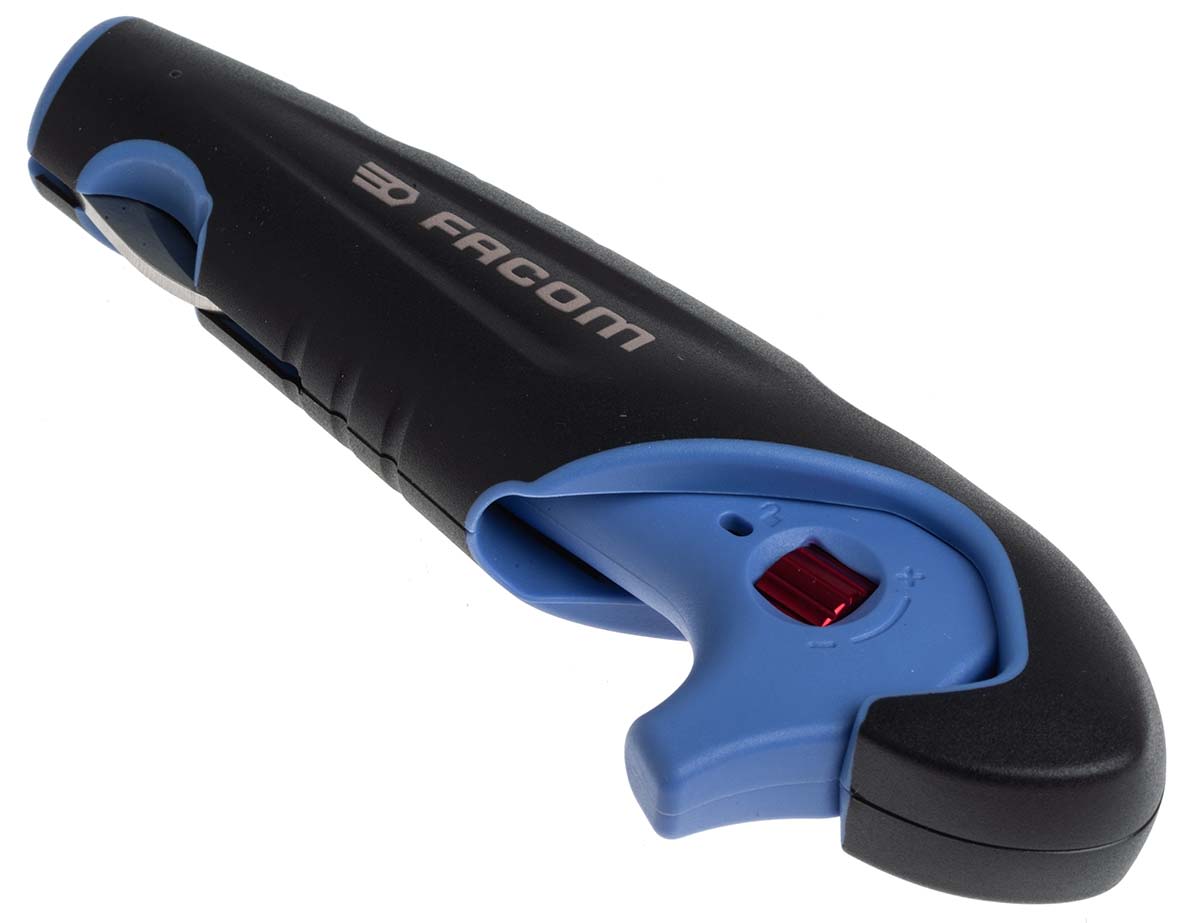

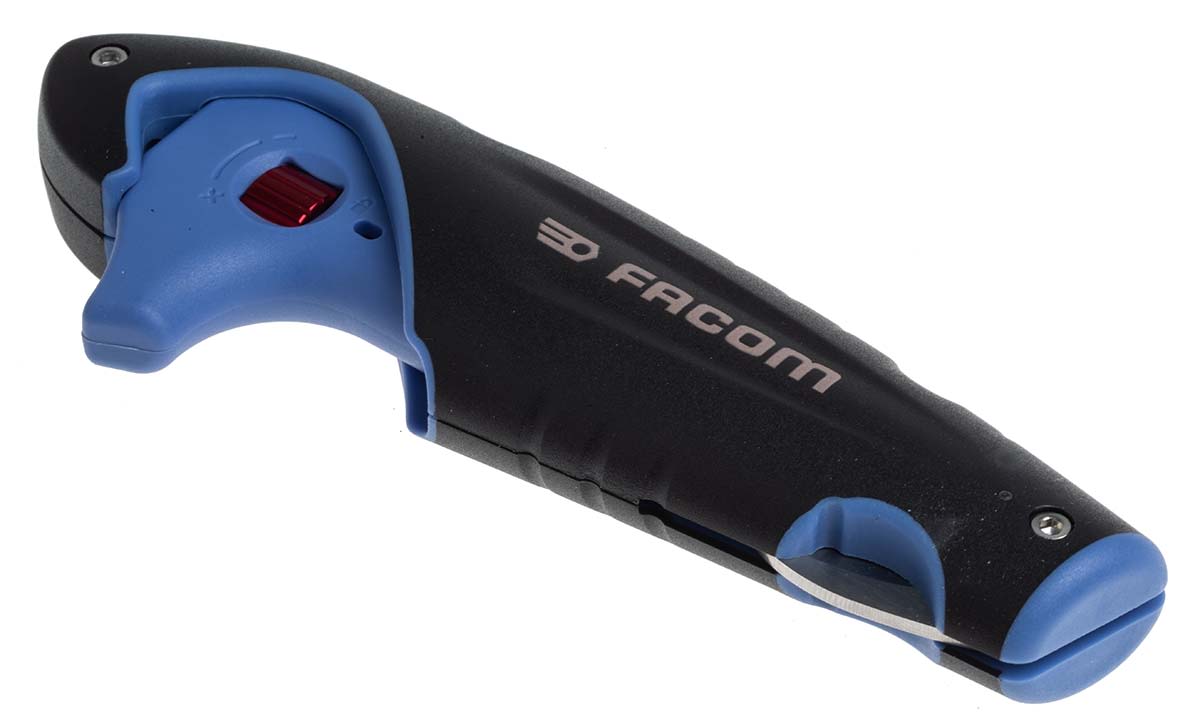

FACOM Multifunction Trigger Sheath-Stripper
Introducing the excellent quality and unique design Multi-Function Cable Stripper from Facom. This versatile tools can be used for both stripping and cutting. It's easy and safe to use with its special spring-loaded trigger system and self-pivoting blade. The Facom 8722271 is equipped in numbers of features such as a blade advance adjustment wheel, dual safety system, a blade safety catch, a stripping point, a spare auto pivot-blade and an auto-pivot blade replacement. This unique wire stripper from Facom has been designed to minimise the effort and the time required to do routine daily operations.
To see how this wire stripper works please, view the video above.
Features & Benefits:
• Trigger system: 30% less effort.

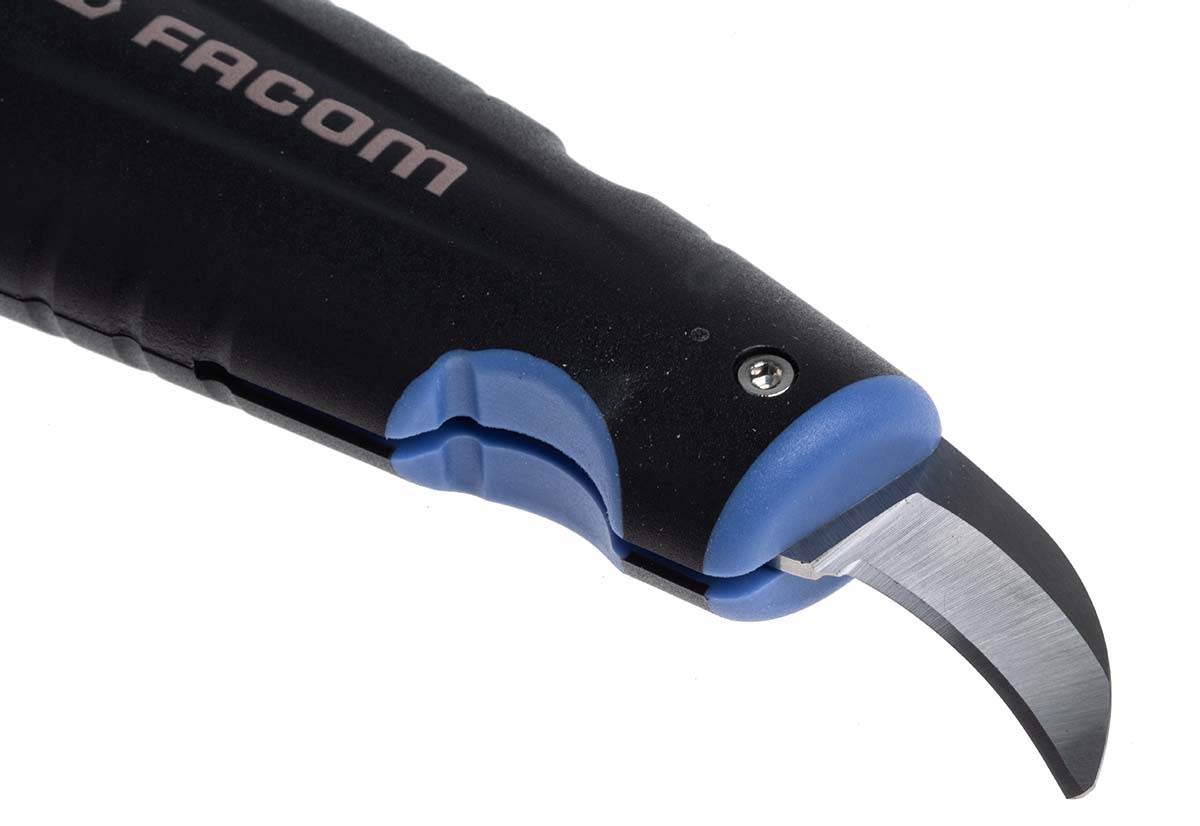

• Self-swivelling blade for fast and easy sheath removal
• Double safety: - Cutting blade out = triggers locked. - Lock back blade.
• Capacity: round PVC cable 4mm to 28mm diameter
• Compact size and lightweight construction
Typical Applications:
Wire strippers are a hand-held tool designed to remove insulation or outer sheath from electrical wires. Wire strippers create a neat and tidy cut to reveal wires, ready to be soldered or have a connector attached. There are various types available from stripping the cable to cutting copper and conduit. Wire strippers are primarily used by electricians or mechanics but are equally at home in any DIY toolbox.
FAQs:
It this wire stripper VDE certified?
No, this wire stripper isn't VDE approved and cannot be used on live electric cables.
Is this cable stripper suitable for flat cables?
This wire stripper has been designed to work with round cables and may not perform properly with flat cables.
Specifications
| Attribute | Value |
| Brand | Facom |
| Overall Length | 167 mm |
| Stripping Range | 4 → 28 mm |
| Minimum Size | 4 mm |
| Maximum Size | 28 mm |
| Cable Type | PVC Wire |
