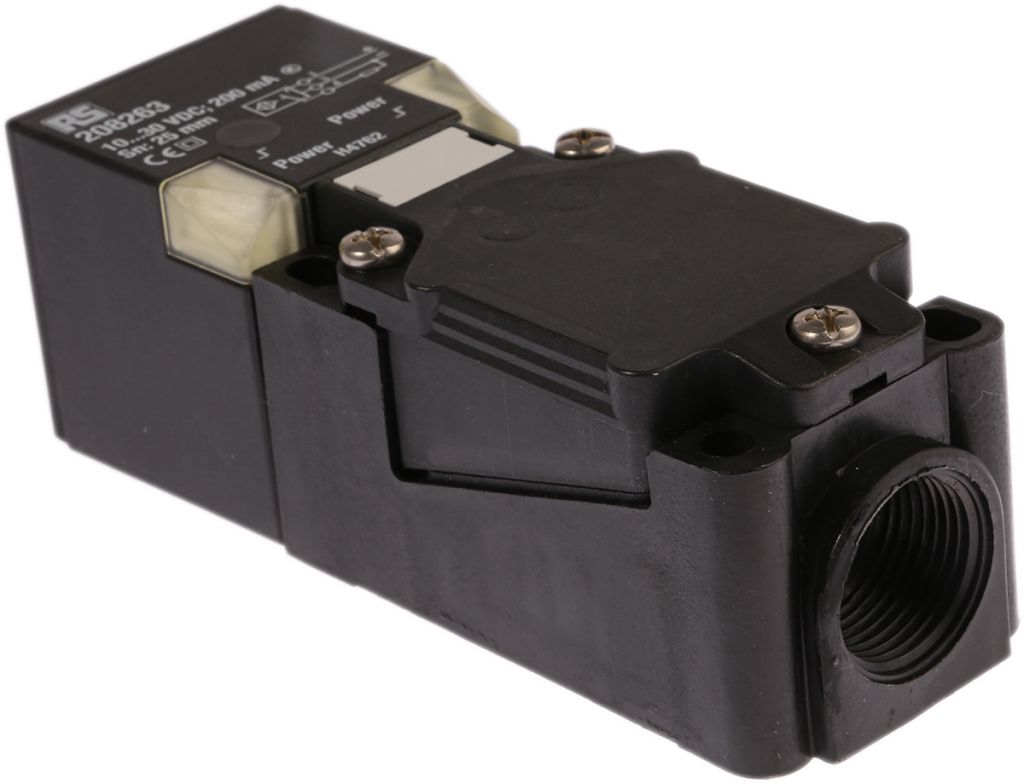

RS PRO Inductive Proximity Sensor – Block, PNP Output, 25 mm Detection, IP68
- RS Stock No.:
- 0208263
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 0208263 |
| Product description | RS PRO Inductive Proximity Sensor - Block, PNP Output, 25 mm Detection, IP68 |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 31, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: DE
Product Details
Specifications
| Attribute | Value |
| Brand | RS PRO |
| IP Rating | IP68 |
| Output Type | PNP |
| Minimum Operating Temperature | -30 °C |
| Shielding | Partial |
| Supply Voltage | 10 → 30 V dc |
| Maximum Switching Frequency | 250 Hz |
| Sensor Technology | Inductive |
| Switching Current | 200 mA |
| Reverse Polarity Protection | Yes |
| Maximum DC Voltage | 30 V |
| Body Style | Block |
| Short Circuit Overload Protection | Yes |
| Mounting Type | Non-Flush |
| Housing Material | Plastic |
| Depth | 40 mm |
| Length | 114 mm |
| Width | 40 mm |
| Terminal Type | M20 Gland |
| Detection Range | 25 mm |
| Maximum Operating Temperature | +85 °C |
