RS PRO RS380 AC Auto-Ranging Clamp Meter, Max Current 400A ac CAT III 600 V
- RS Stock No.:
- 1231935
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 1231935 |
| Product description | RS PRO RS380 AC Auto-Ranging Clamp Meter, Max Current 400A ac CAT III 600 V |
| Manufacturer / Brand | RS PRO |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1231935 |
| Product description | RS PRO RS380 AC Auto-Ranging Clamp Meter, Max Current 400A ac CAT III 600 V |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 22, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details
RS PRO RS380 Compact AC Auto-ranging Clamp Meter
A clamp meter is an electrical test tool that combines a basic digital multimeter with a current sensor. Clamps measure current such as AC current, AC and DC voltage, resistance, continuity, and, with some models, DC current, capacitance, temperature, frequency and more. Due to the hinged jaw, this tool allows the user to clamp the jaws around a wire, cable or other conductor at any point in an electrical system, then measure the current without disconnecting it.

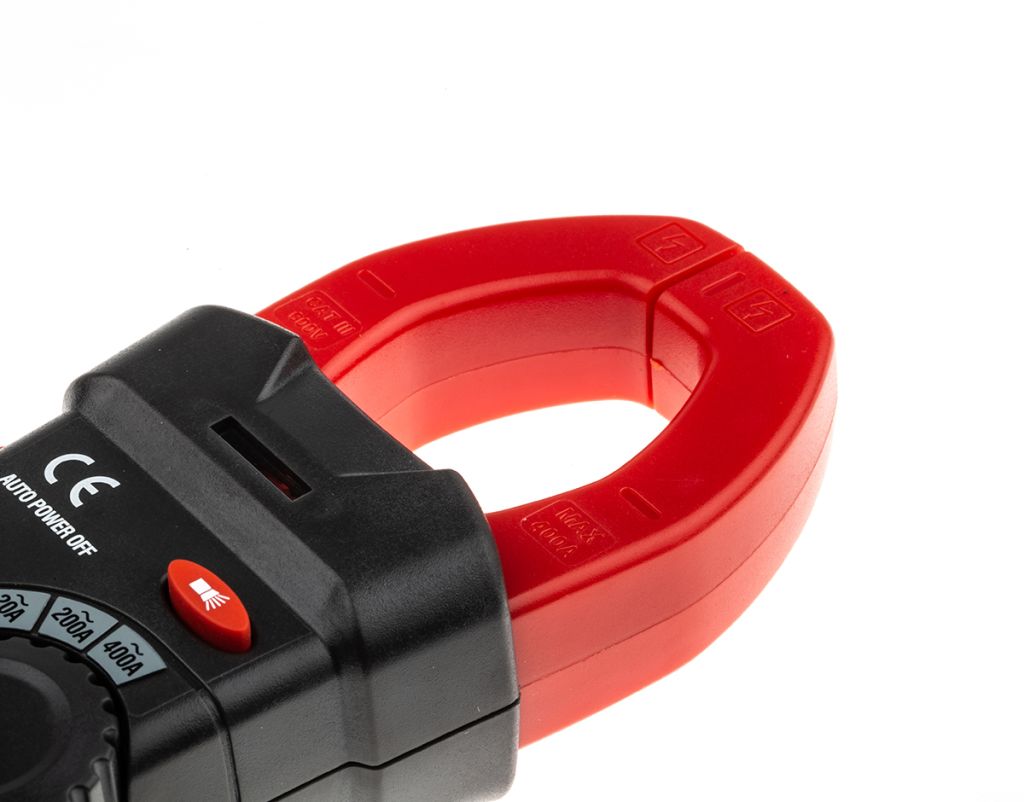

The RS380 is a great value meter with a small body and jaw which opens 30mm (1.2"). Also available with this multimeter is test leads, a carrying case, temperature probe, 2 x AAA 1.5 V batteries and a user manual. There is also a “hold” function available in the compact design making it very user friendly
SUPPLIED_WITH : Test leads, carrying case, temperature probe, AAA
Features and Benefits:
• 400 A AC Current Measurement
• 2000 Counts LCD display
• Auto power off
• Low battery indicator
• Non-contact voltage detection
• Resistance measurement, test measurement, Continuity and diode check
• Overvoltage Category III 600 V
Dimensions: 197 mm x 70 mm x 40 mm
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Best AC Current Accuracy | ±(2.5% rdg + 5dgts) |
| Power Source | Battery |
| Non-Contact Voltage Detector | Yes |
| Width | 40 mm |
| Absolute Maximum Resistance Measurement | 20 MΩ |
| Length | 82 mm |
| AC Current Measurement Resolution | 10 mA |
| Dimensions | 82 x 40 x 230 mm |
| Best DC Voltage Accuracy | ±(1.5% rdg + 2dgts) |
| DC Voltage Measurement Resolution | 100 µV |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Voltage, Diode Test, Resistance, Temperature |
| Best Temperature Measurement Accuracy | ±3% ± 5 Digits |
| True RMS | Yes |
| Resistance Measurement Resolution | 100 mΩ |
| Best AC Voltage Accuracy | ±(1.5% rdg + 8dgts) |
| Model Number | RS380 |
| Minimum Operating Temperature | +5 °C |
| Height | 230 mm |
| AC Voltage Measurement Resolution | 100 µV |
| Jaw Capacity Busbars | 23 mm |
| Weight | 230 g |
| Safety Category Level | CAT III |
| Clamp Meter Type | AC Auto-Ranging Clamp Meter |
| Absolute Maximum AC Current Measurement | 400 A ac |
| Temperature Measurement Resolution | 1 °C, 1 °F |
| Safety Category Voltage | 600 V |
| Battery Type | AAA |
| Absolute Maximum Temperature Measurement | +1400 °F, +760 °C |
| Absolute Maximum AC Voltage Measurement | 600 V ac |
| Safety Category | CAT III 600 V |
| Best Resistance Measurement Accuracy | ±1% ± 4 Digits |
| Absolute Maximum DC Voltage Measurement | 600 V dc |
| Display Type | LCD |
| Maximum Operating Temperature | +40 °C |
