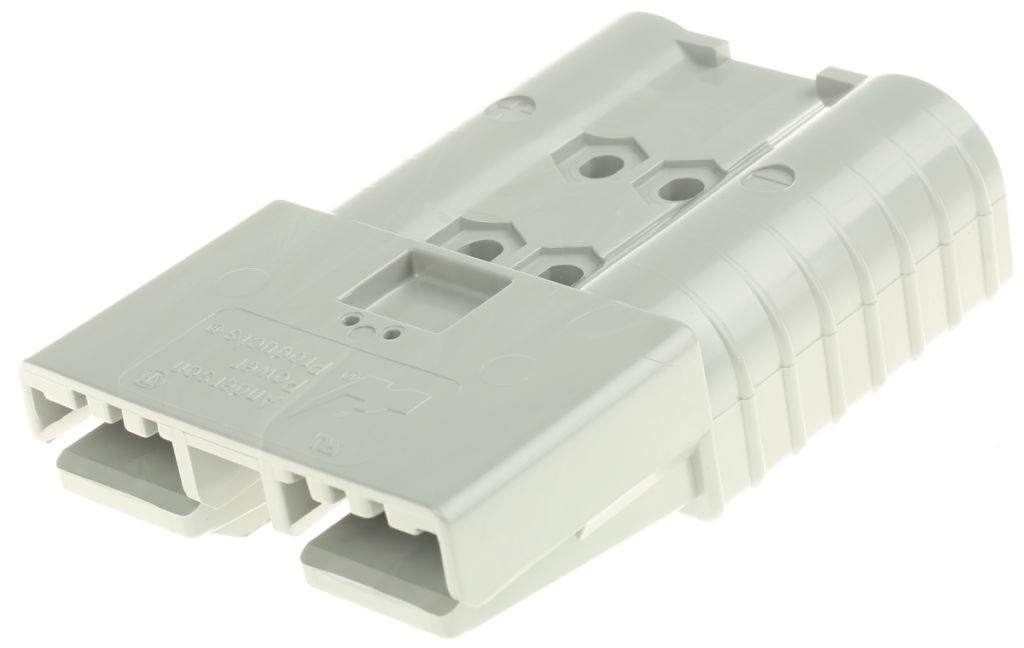

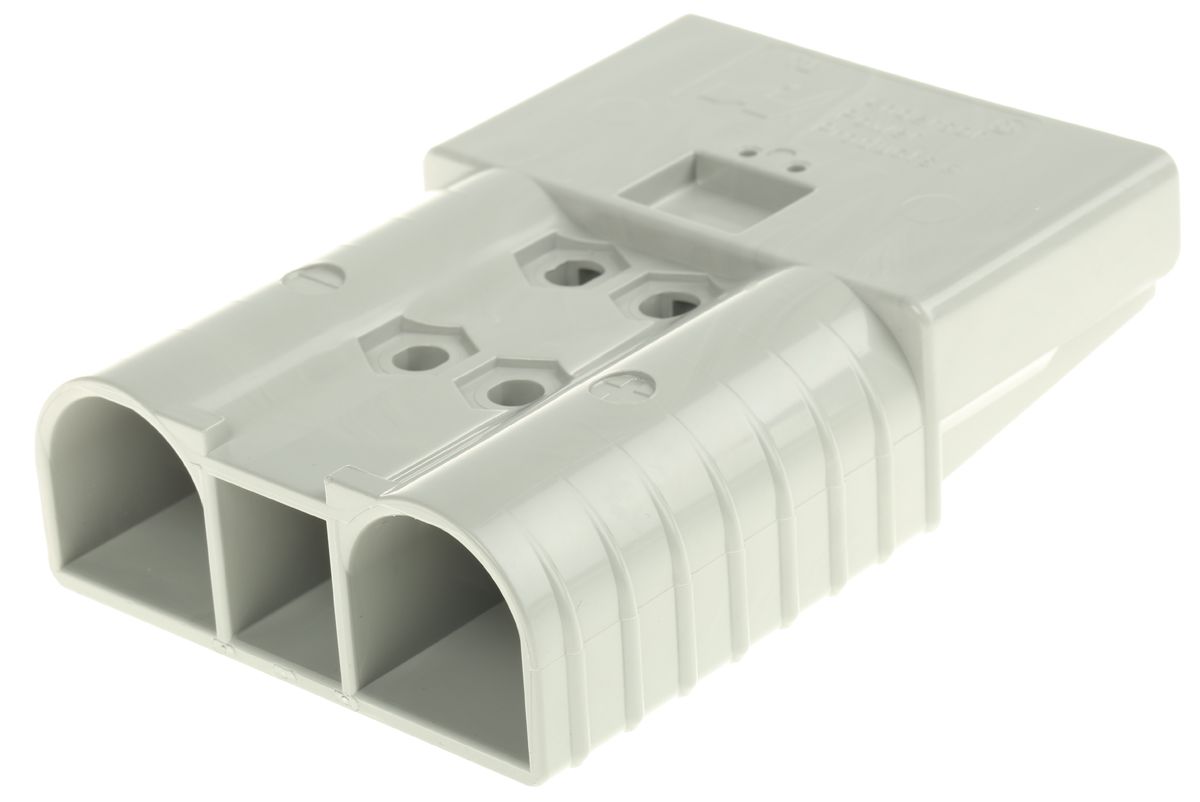

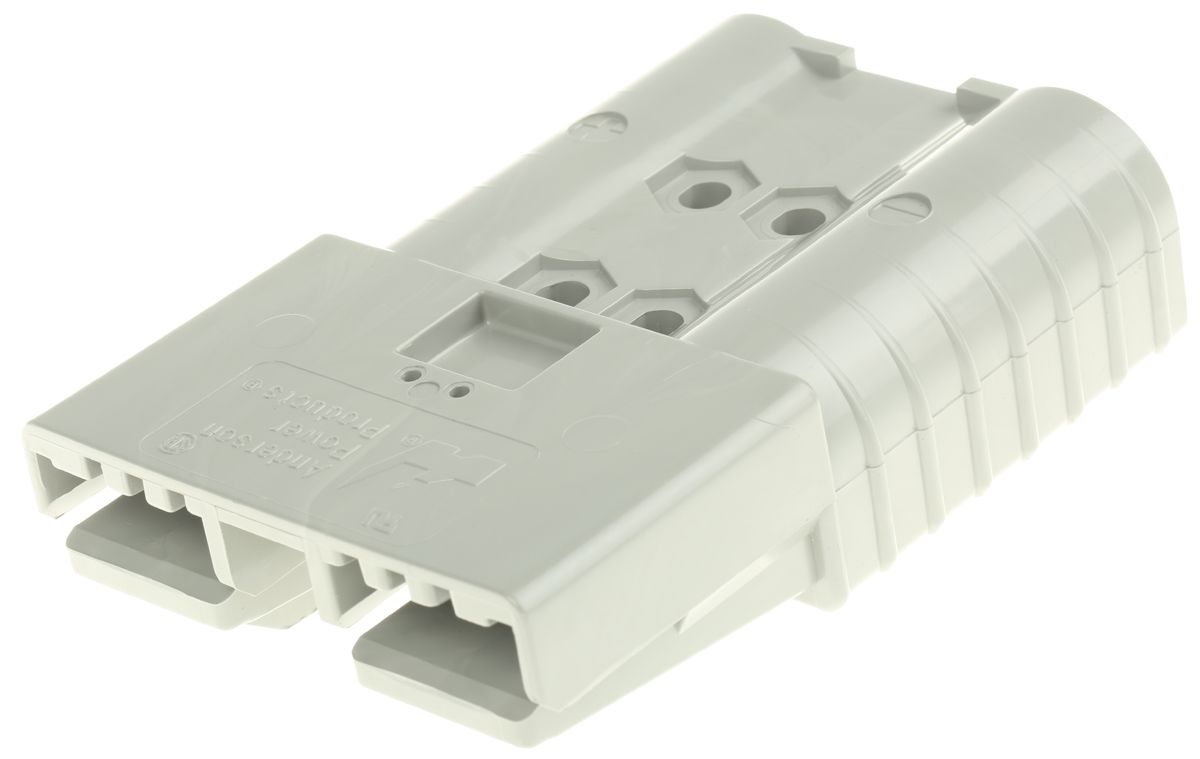

Anderson Power Products, SBE320 Female to Male 2 Way Battery Connector, 320.0A, 150.0 V
- RS Stock No.:
- 6120172
- Mfr. Prt No.:
- E-6340G1
- Brand:
- Anderson Power Products
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 6120172 |
| Product description | Anderson Power Products, SBE320 Female to Male 2 Way Battery Connector, 320.0A, 150.0 V |
| Manufacturer / Brand | Anderson Power Products |
| Manufacturer part number | E-6340G1 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 6120172 |
| Product description | Anderson Power Products, SBE320 Female to Male 2 Way Battery Connector, 320.0A, 150.0 V |
| Manufacturer / Brand | Anderson Power Products |
| Manufacturer part number | E-6340G1 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 22, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: US
Product Details
High Current - Anderson Power
160A, 320A, Connector housing with contacts and auxiliaries
Mechanically keyed colour coded housings prevent accidental mating of equipment operating at different voltages
Auxiliary contacts provide the ability to incorporate a secondary sensor control unit
Genderless design
Flat wiping contacts
UL voltage rating 150 V
Pair auxiliary contacts

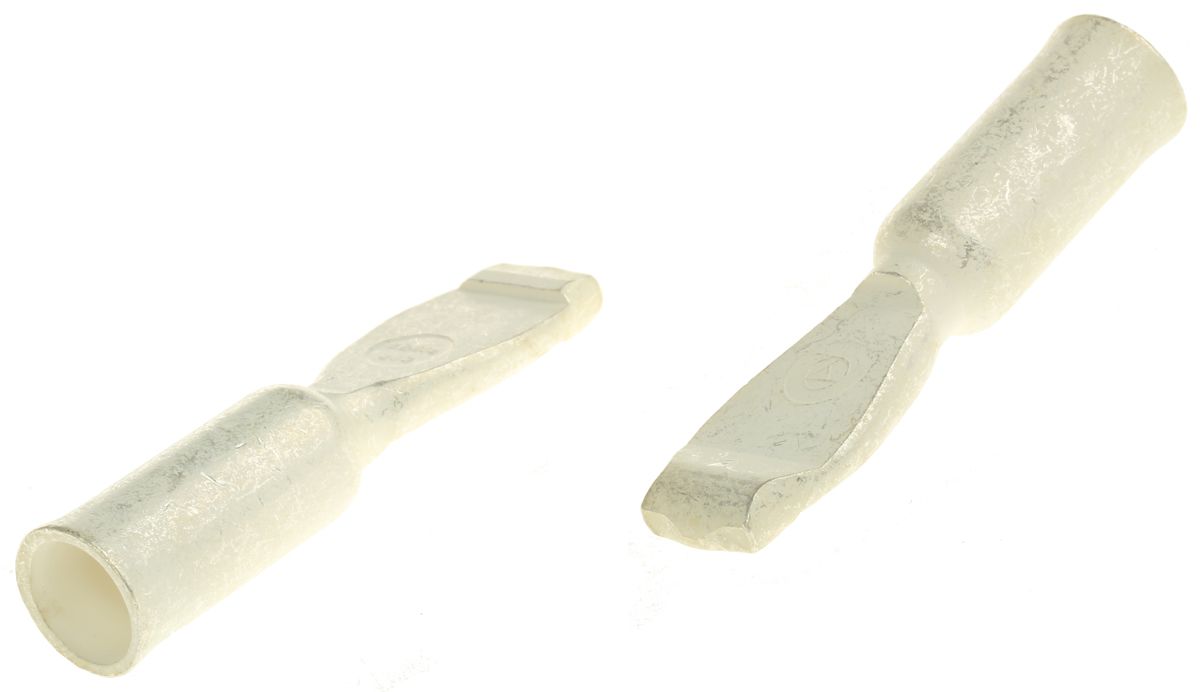

Silver plated contacts offer longevity when using high power
Single piece housing
Capable of 10000 connect / disconnect cycles
Specifications
| Attribute | Value |
| Brand | Anderson Power Products |
| Number of Contacts | 2 |
| Voltage Rating | 150.0 V |
| Current Rating | 320.0 A |
| Gender | Female to Male |
| Series | SBE320 |
