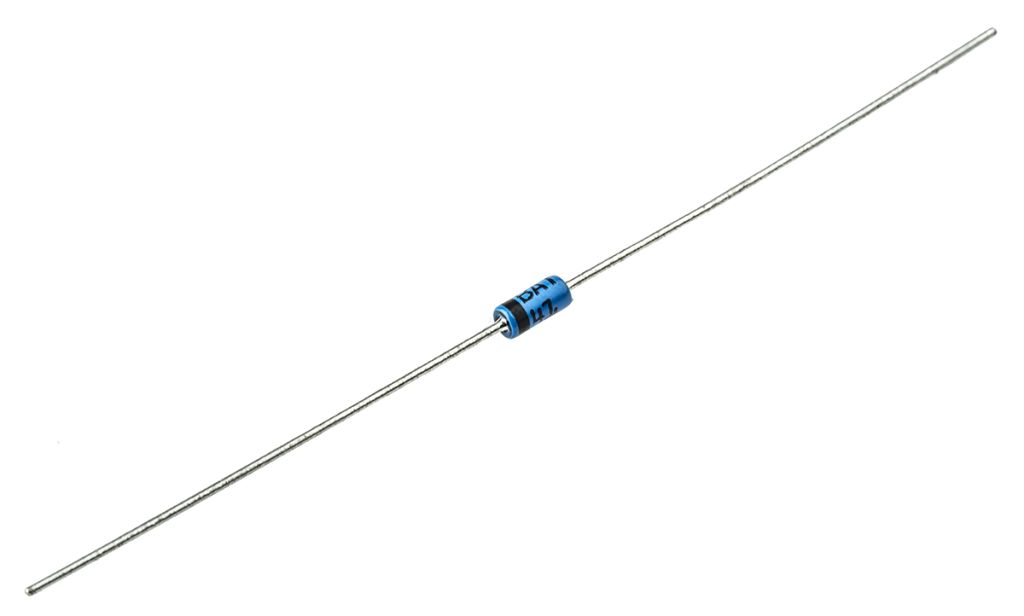

STMicroelectronics 100V 100mA, Schottky Diode, 2-Pin DO-35 BAT41
- RS Stock No.:
- 5444679
- Mfr. Prt No.:
- BAT41
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 5444679 |
| Product description | STMicroelectronics 100V 100mA, Schottky Diode, 2-Pin DO-35 BAT41 |
| Manufacturer / Brand | STMicroelectronics |
| Manufacturer part number | BAT41 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 28, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Diodes and Rectifiers, STMicroelectronics
Schottky Barrier Diodes, up to 1A, STMicroelectronics
High power, efficiency and density.
Specifications
| Attribute | Value |
| Brand | STMicroelectronics |
| Mounting Type | Through Hole |
| Maximum Forward Voltage Drop | 1 V |
| Maximum Continuous Forward Current | 100 mA |
| Diode Technology | Schottky |
| Peak Reverse Repetitive Voltage | 100 V |
| Number of Elements per Chip | 1 |
| Diameter | 1.7 mm |
| Package Type | DO-35 |
| Peak Non-Repetitive Forward Surge Current | 750 mA |
| Diode Type | Schottky |
| Pin Count | 2 |
| Diode Configuration | Single |
