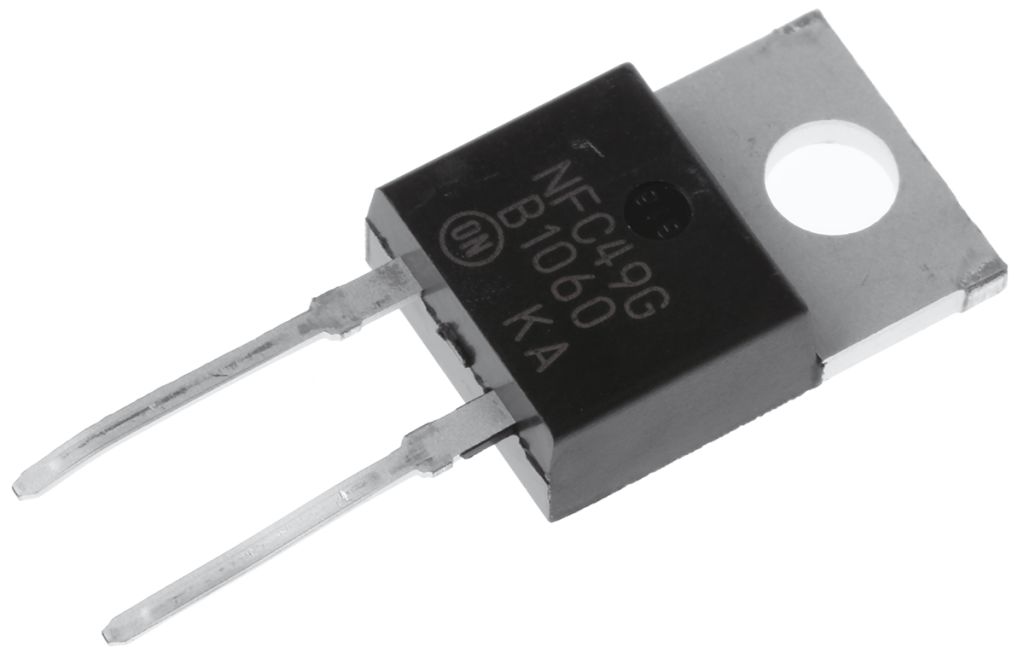

ON Semi MBR1060G Schottky Diode, 60V 10A, 2-Pin TO-220AC
- RS Stock No.:
- 5452844
- Mfr. Prt No.:
- MBR1060G
- Brand:
- ON Semiconductor
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 5452844 |
| Product description | ON Semi MBR1060G Schottky Diode, 60V 10A, 2-Pin TO-220AC |
| Manufacturer / Brand | ON Semiconductor |
| Manufacturer part number | MBR1060G |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 28, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Schottky Barrier Diodes, 10A to 25A, ON Semiconductor
Specifications
| Attribute | Value |
| Brand | ON Semiconductor |
| Mounting Type | Through Hole |
| Package Type | TO-220AC |
| Maximum Continuous Forward Current | 10 A |
| Peak Reverse Repetitive Voltage | 60 V |
| Diode Configuration | Single |
| Diode Type | Schottky |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Diode Technology | Schottky |
| Peak Non-Repetitive Forward Surge Current | 150 A |
