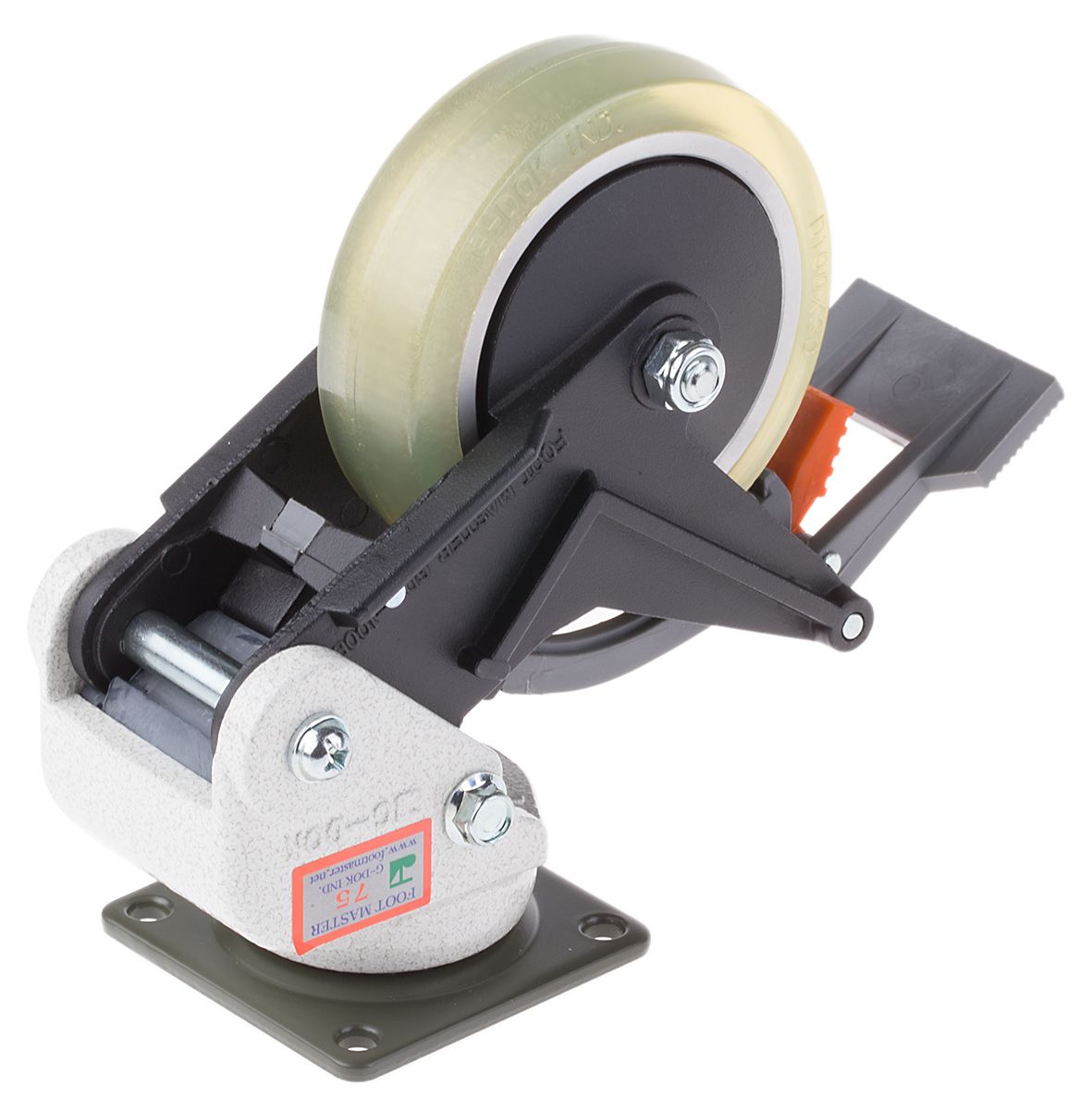

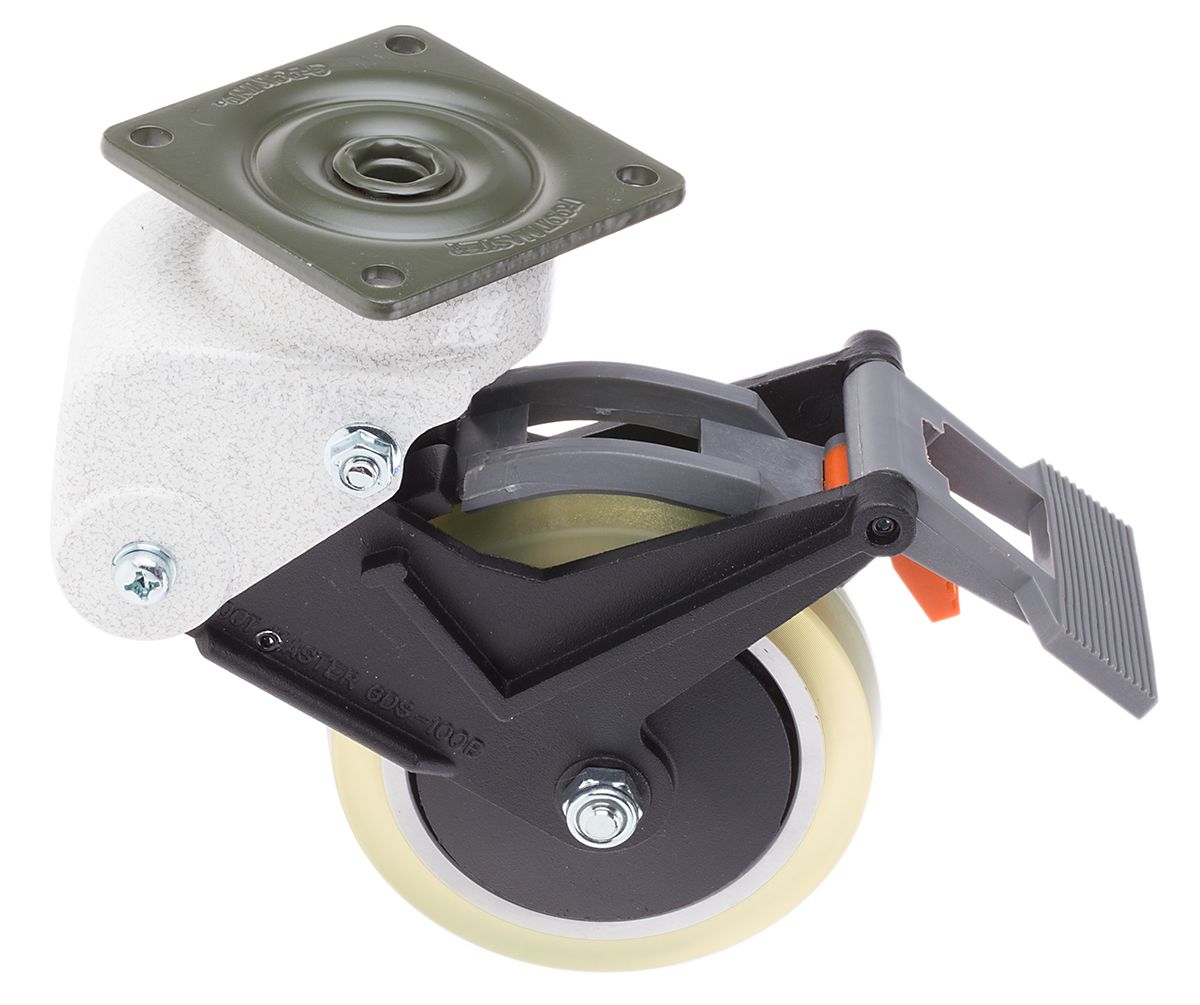

RS PRO Braked Swivel Castor Wheel, 110kg Capacity, 100mm Wheel
- RS Stock No.:
- 2962871
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
RS stock number | 2962871 |
Product description | RS PRO Braked Swivel Castor Wheel, 110kg Capacity, 100mm Wheel |
Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
Date | Nov 24, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: KR
Product Details
Shock Absorbing Castors
These shock absorbing castors have a high quality polyurethane tread and an aluminium hub.
Cast Aluminium Wheel
Fitted with Solid Rubber Shock Absorbing Block for Vibration-Free Operation
Braked Option Available (stock no. 296-2871)
Specifications
Attribute | Value |
Brand | RS PRO |
Tyre Material | PUR |
Mounting Type | Plate |
Features | Quiet Operation, Shock Absorbing |
Hub Bearing Type | Roller Bearing |
Rotation | Braked Swivel |
Hub Material | Aluminium |
Number of Fixing Holes | 4 |
Overall Height | 160 mm |
Fixing Plate Dimensions | 73 x 73 mm |
Weight Class | Medium Duty |
Wheel Diameter | 100 mm |
Fixing Centres | 58 x 58 mm |
Fixing Hole Size | 6.5 mm |
Includes Brake | Yes |
Load Capacity | 110 kg |
Wheel Width | 30 mm |
