RS PRO Converter
- RS Stock No.:
- 2184469
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 2184469 |
| Product description | RS PRO Converter |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 26, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: GB
Product Details

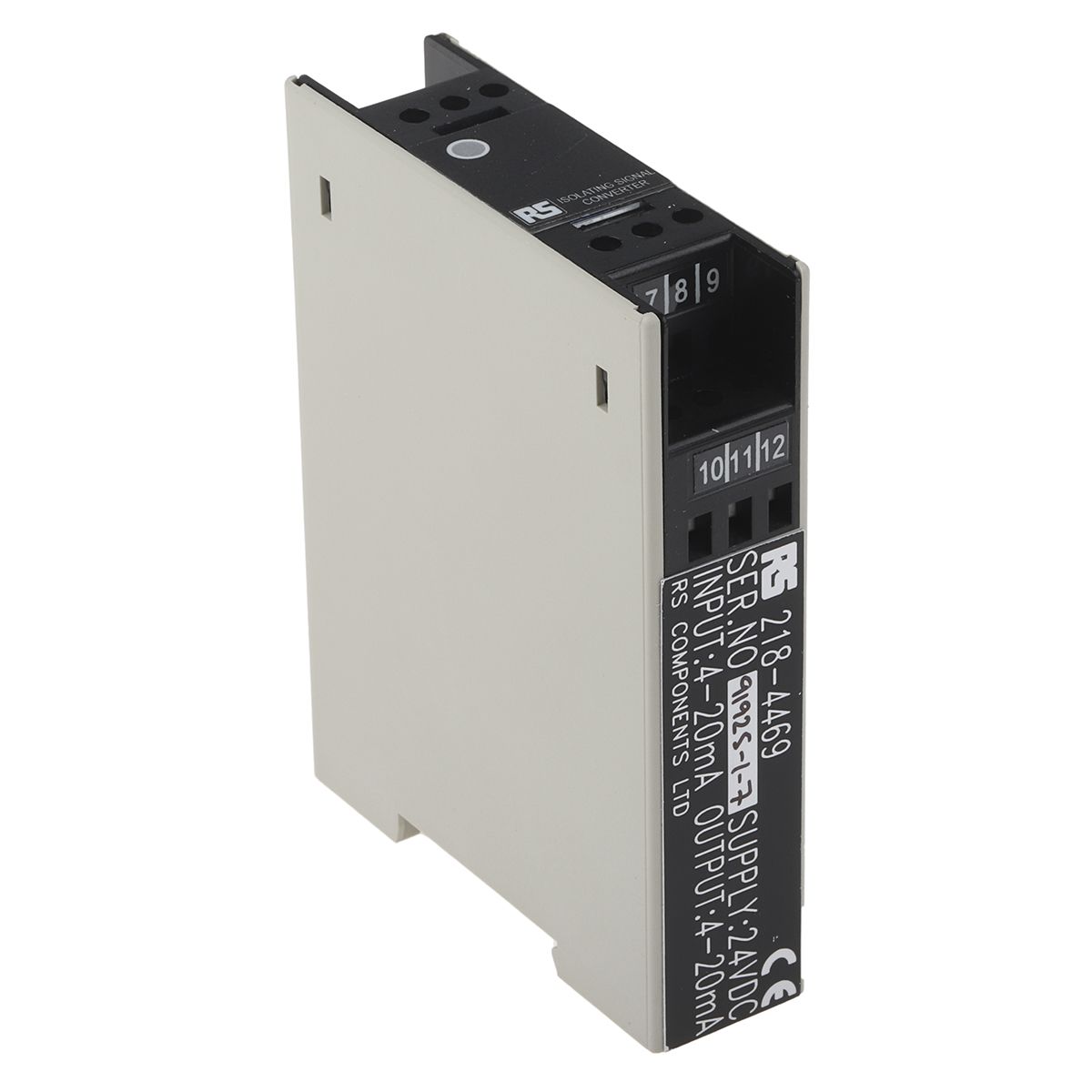

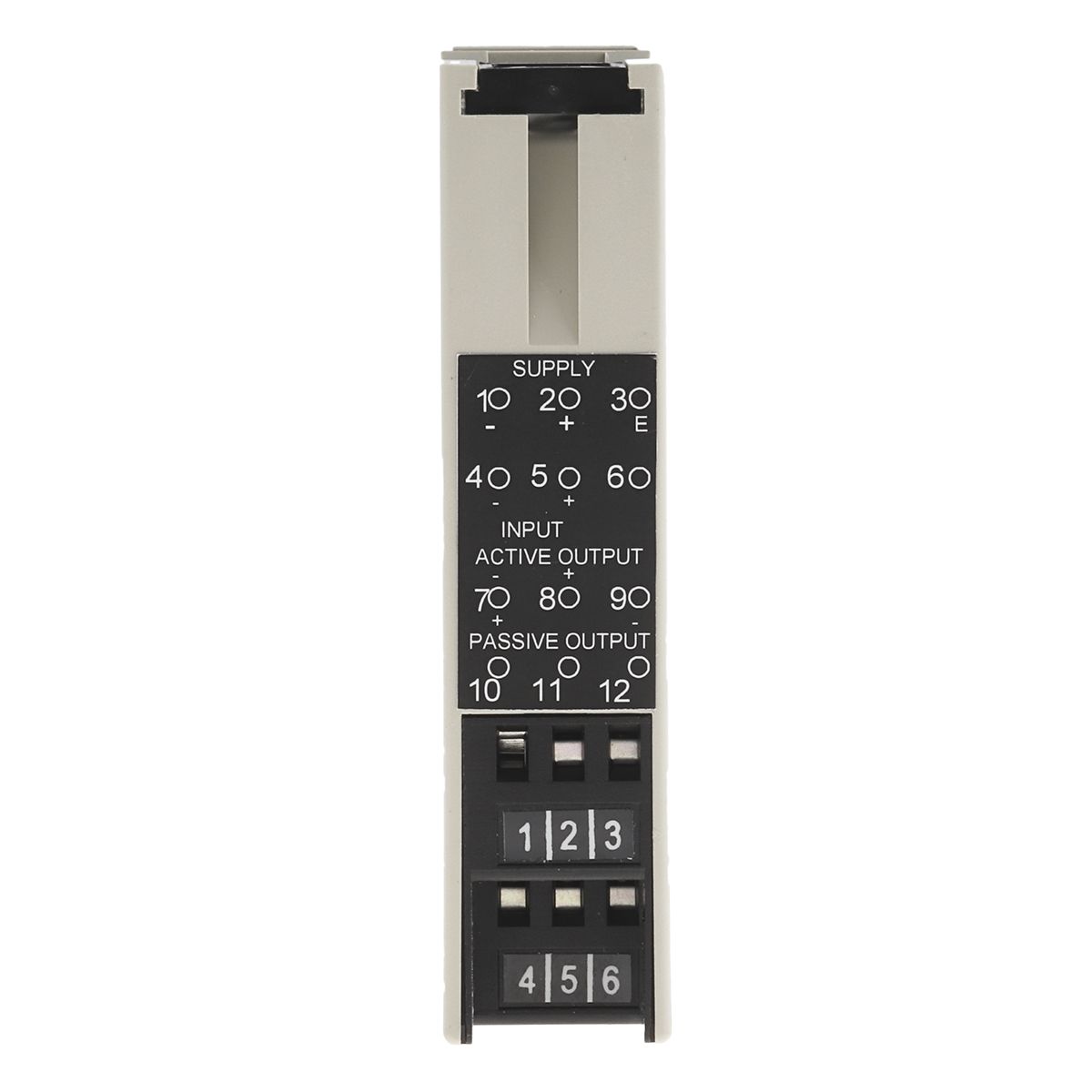

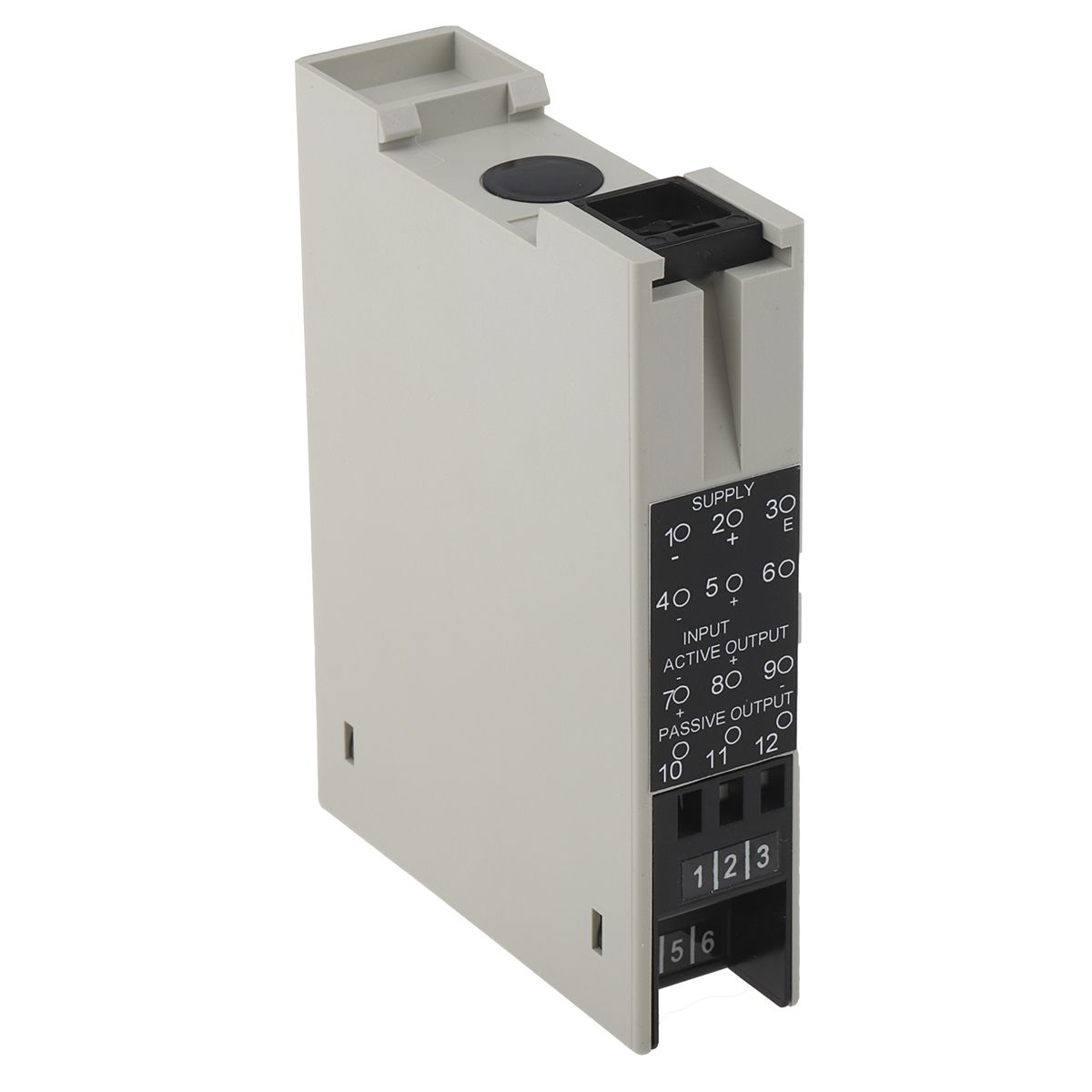

24Vdc Trip Amplifiers, Signal Isolator/Converters
Symmetric DIN rail mounting units with finger protected terminals designed for use in process control and instrumentation applications. Single or dual level trip amplifiers from a single Input.Each trip can be arranged so that the alarm condition can be above (high trip) or below (low trip) the set point, and that the relay can be either normally energised to de-energise in the alarm condition (fail-safe), or normally de-energised to energise in the alarm condition (non fail-safe).,signal Isolators/converter; this unit conditions the signal before sending it through an opto-isolated hybrid circuit. Input and output stages are power from separate secondaries of the dc/dc inverter to provide 3 port isolation
Input and output stages powered from separate secondaries of the supply transformer to provide 3-port isolation
Dual supply voltage operation
LED indication of "power on"
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Output Type | Analogue |
| Minimum Operating Temperature | 0 °C |
| Input Range | 4 → 20 mA |
| Termination | Screw |
| Output Range | 4 → 20 mA |
| Series | 9100 |
| Mounting Type | DIN Rail |
| Maximum Operating Temperature | +50 °C |
| Module Type | Signal Isolator/Conditioner |
| Supply Voltage | 10 → 30 V dc |
| Operating Temperature Range | 0 ? +50 °C |
| Signal Conditioner Type | Analogue → Analogue |
