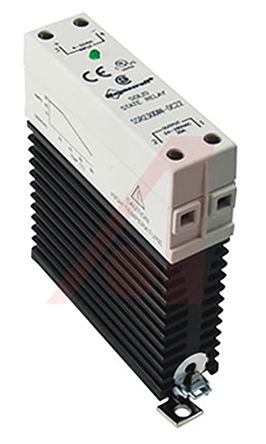

Schneider Electric 10 A SPNO Solid State Relay, Zero Crossing, DIN Rail, SCR, 280 V ac Maximum Load
- RS Stock No.:
- 8257305
- Mfr. Prt No.:
- SSR210DIN-AC22
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8257305 |
| Product description | Schneider Electric 10 A SPNO Solid State Relay, Zero Crossing, DIN Rail, SCR, 280 V ac Maximum Load |
| Manufacturer / Brand | Schneider Electric |
| Manufacturer part number | SSR210DIN-AC22 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 24, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
SSRDIN Series
The SSRDIN relays offer a complete solid state package that is an energy-efficient current switching alternative to standard electromechanical relays. Advantages include longer life cycles, less energy consumption, and reduced maintenance costs.
Solid state circuitry
Optically coupled circuit
Internal snubber
Internal heat sink
Integrated chassis ground
Fingersafe terminals
DIN and panel mounting
Specifications
| Attribute | Value |
| Brand | Schneider Electric |
| Switching Type | Zero Crossing |
| Height | 97.7 mm |
| Off State Leakage Current | 10 mA |
| Length | 22.4 mm |
| Contact Configuration | SPNO |
| Maximum Turn On Time | 0.5 cycle |
| Terminal Type | Screw |
| Minimum Control Voltage | 90 V ac |
| Maximum Load Voltage | 280 V ac |
| Dimensions | 22.4 x 80 x 97.7 mm |
| Mounting Type | DIN Rail |
| Maximum Control Voltage | 280 V ac |
| Operating Temperature Range | -40 → +80 °C |
| Control Voltage Range | 90 → 280 V ac |
| Load Voltage Range | 24 → 280 V ac |
| Maximum Load Current | 10 A |
| Depth | 80 mm |
| Output Device | SCR |
| Minimum Load Voltage | 24 V ac |
