MikroElektronika Audio Development Board MIKROE-1534
- RS Stock No.:
- 8209817
- Mfr. Prt No.:
- MIKROE-1534
- Brand:
- MikroElektronika
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 8209817 |
| Product description | MikroElektronika Audio Development Board MIKROE-1534 |
| Manufacturer / Brand | MikroElektronika |
| Manufacturer part number | MIKROE-1534 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8209817 |
| Product description | MikroElektronika Audio Development Board MIKROE-1534 |
| Manufacturer / Brand | MikroElektronika |
| Manufacturer part number | MIKROE-1534 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 22, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: RS
Product Details

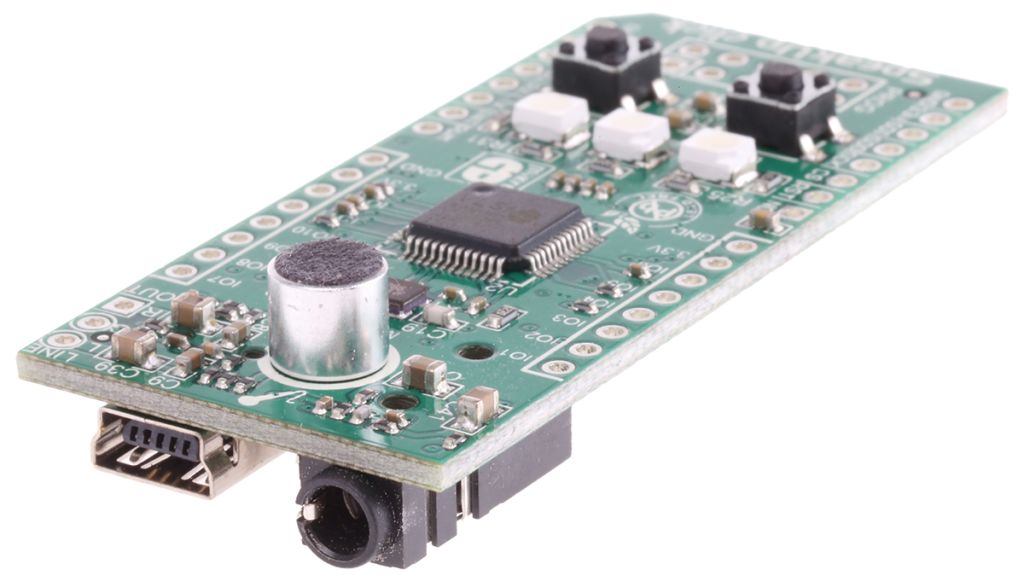

SpeakUp click mikroBUS™
The Click accessory modules plug into the MikroBUS sockets in MikroElektronika microcontroller development boards. The SpeakUp click board is a speaker-dependent speech recognition module with standalone capabilities. It works by matching sounds from the microphone with pre-recorded commands. Example application: Use SpeakUp with the Pi click Shield 811-7024 to command XBMC Home Media Center on a Raspberry Pi computer - replacing the mouse and keyboard.
Note
Click board comes with the header strips soldered.
SUPPLIED_WITH : User manual
Click mikroBUS™ Human-Machine Interface Boards
STM32F415RG ARM Cortex-M4 microcontroller
On-board microphone
VS1053 stereo-audio CODEC
Can recognise over 200 voice commands
12 x User programmable GPIO pins for standalone functionality
2 x programming pushbuttons
2 x programming status LEDs
Standalone mode: On-board MCU directly controls external devices via user GPIO
Click mode: Sends index of the matched voice command to a selectable interface: USB or UART
3.5mm jack socket for external microphone
USB connector for PC programming
Power indicator LED
Power supply: +3.3Vdc
Specifications
| Attribute | Value |
| Brand | MikroElektronika |
| Kit Classification | Development Board |
