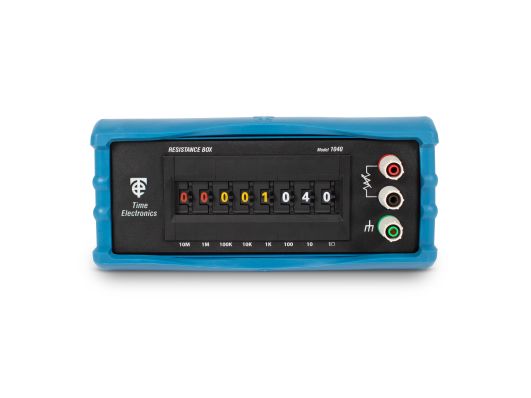

Time Electronic Resistance Decade Box, Resistance Resolution 1Ω, Absolute Maximum Resistance Measurement 100MΩ
- RS Stock No.:
- 0617692
- Mfr. Prt No.:
- 1040
- Brand:
- Time Electronic
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 0617692 |
| Product description | Time Electronic Resistance Decade Box, Resistance Resolution 1Ω, Absolute Maximum Resistance Measurement 100MΩ |
| Manufacturer / Brand | Time Electronic |
| Manufacturer part number | 1040 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 27, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: GB
Product Details
Specifications
| Attribute | Value |
| Brand | Time Electronic |
| Width | 200 mm |
| Resistance Resolution | 1 Ω |
| Dimensions | 110 x 200 x 75 mm |
| Temperature Coefficient | ±50 ppm/°C |
| Height | 75 mm |
| Residual Resistance | Less than 250 mΩ |
| Decade Box Type | Resistance |
| Weight | 600 g |
| Length | 110 mm |
| Best Minimum Resistance Accuracy | ±0.1 % |
| Best Maximum Resistance Accuracy | ±1 % |
| Minimum Resistance Measurement | 1 Ω |
| Absolute Maximum Resistance Measurement | 100 MΩ |
| Power Rating | 1 W |
