RS PRO Gasket for use with XLR Connectors
- RS Stock No.:
- 8621554
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
Substance | Concentration |
Lead | 0.1% |
Mercury | 0.1% |
PBB (Polybrominated Biphenyls) | 0.1% |
PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
Hexavalent Chromium | 0.1% |
Cadmium | 0.01% |
DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
BBP (Benzyl butyl phthalate) | 0.1% |
DBP (Dibutyl phthalate) | 0.1% |
DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
RS stock number | 8621554 |
Product description | RS PRO Gasket for use with XLR Connectors |
Manufacturer / Brand | RS PRO |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
RS stock number | 8621554 |
Product description | RS PRO Gasket for use with XLR Connectors |
Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
Date | Nov 8, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: GB
Product Details

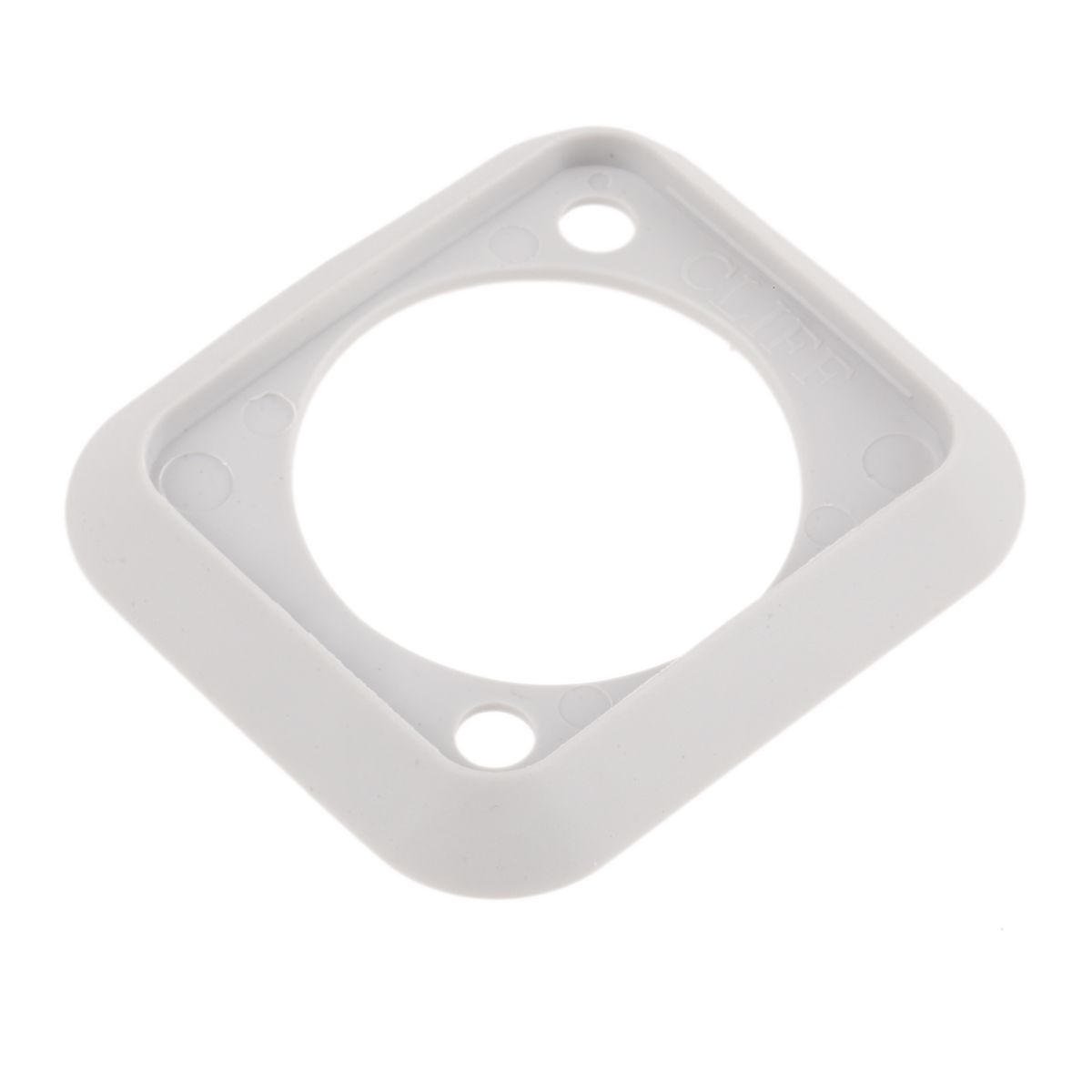

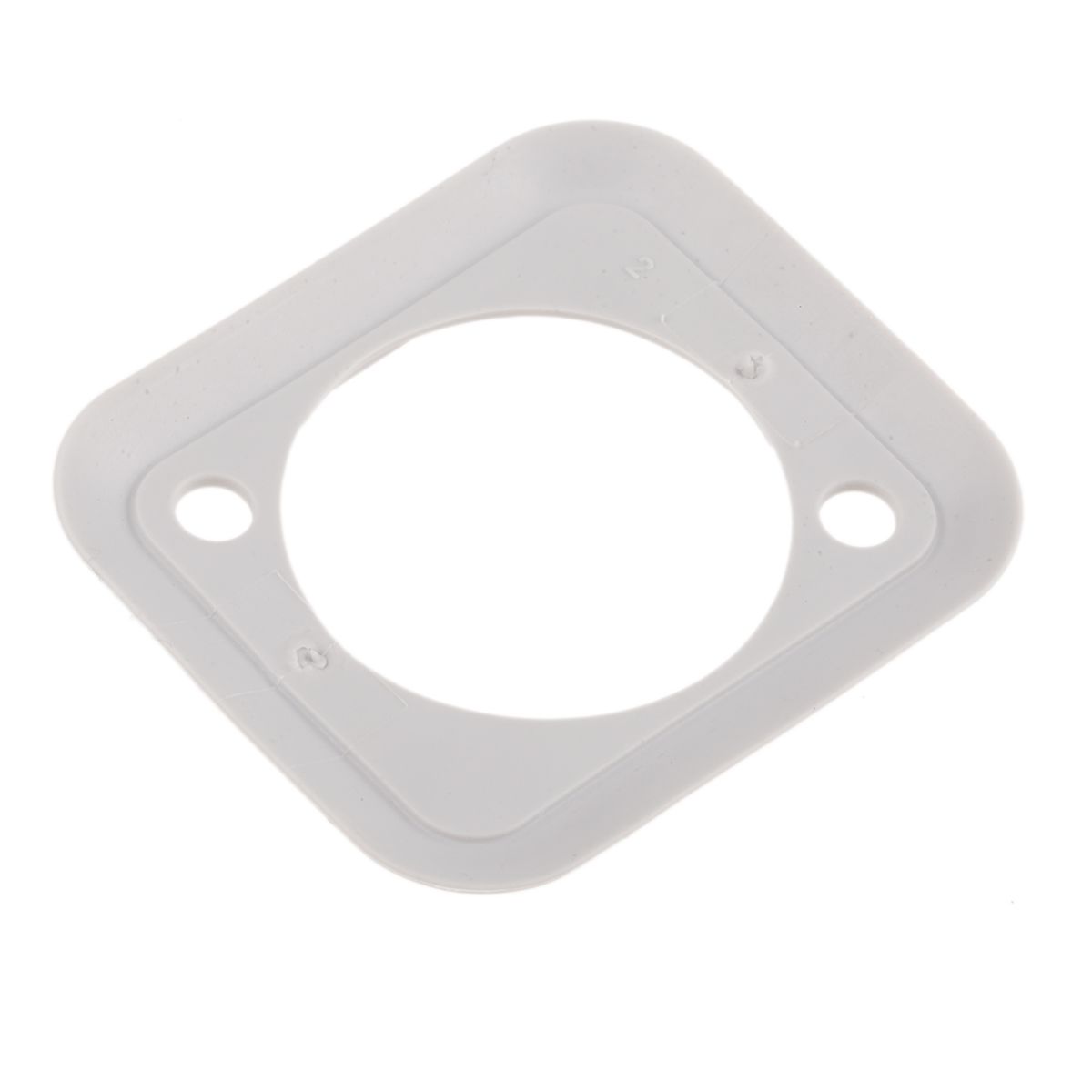

XLR Connector Sealing Gaskets
Brought to you under the trusted RS Pro brand, these gaskets are for sealing and colour coding XLR connectors. Each gasket comes complete with two small brass spacers to aid gasket seating and sealing function.
The gasket fits Cliff Electronics XLR family, Cliffcon® range, and other XLR connectors.
Features and Benefits:
• 3.7mm diameter mounting holes
• 24-19mm centres
• 24mm central diameter
Available in this Range:
• Stock No. 862-1541 is a Black rubber gasket
• Stock No. 862-1545 is a White rubber gasket
• Stock No. 862-1551 is a Yellow rubber gasket
• Stock No. 862-1554 is a Grey rubber gasket
• Stock No. 862-1557 is a Green rubber gasket
• Stock No. 862-1560 is a Red rubber gasket
• Stock No. 862-1563 is a Blue rubber gasket
Specifications
Attribute | Value |
Brand | RS PRO |
Accessory Type | Gasket |
Series | CP |
For Use With | XLR Connectors |
